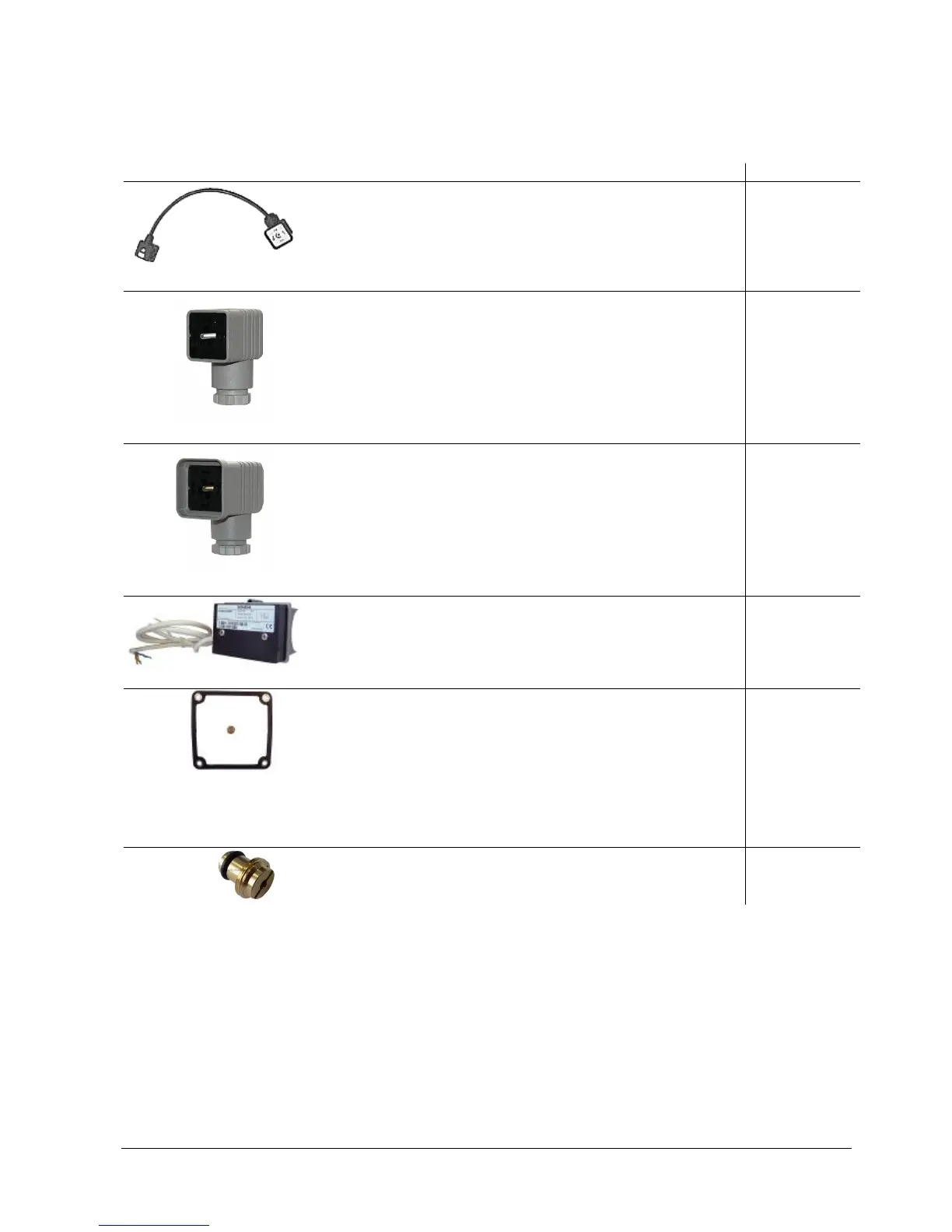

6 Spare parts and accessories
Please note the different article numbers for the VGD4/VRD4 double gas valves and
the SKPx5 actuator when ordering spare parts.
Article no Type
Adapter plug
For powering both SKPx5 actuators on the
VGD4/VRD4 double gas valve with an
AGA64 connector.
BPZ:AGA62.000A000 AGA62.000A000
Contact box for valve actuator (power supply)
∂ Plug-in connector conforming to DIN EN
175301-803-A
∂ 3-pole + protective ground
∂ Ø 6…9 mm / max. 1.5 mm²
BPZ:AGA64 AGA64
Contact box for end switch
∂ Plug-in connector conforming to DIN EN
175301-803-A
∂ 3-pole + protective ground
∂ Ø 4.5…11 mm / max. 1.5 mm²
BPZ:AGA65 AGA65
Heating element
∂ For use at low ambient temperatures
(-10…< -20°C)
∂ Refer to data sheet N7923
BPZ:AGA63.5A27 AGA63.5A27
Gasket set
∂ For mounting between SKPx5 actuator and
VGD4/VRD4 double gas valve
∂ Increases degree of protection from IP54 to IP65
∂ Take note of data sheet N7631 when using
VGD4/VRD4 double gas valves
∂ Refer to Mounting Instruction M7643.2
(74 319 0421 0)
BPZ:AGA66 AGA66
Damping throttle for the SKP25 actuator
Optional
BPZ:AGA25.2 AGA25.2
