9/17
Building Technologies Operation Manual and Mounting Instructions VGD4 / VRD4 / SKPx5 CC1U7643en
14.03.2018

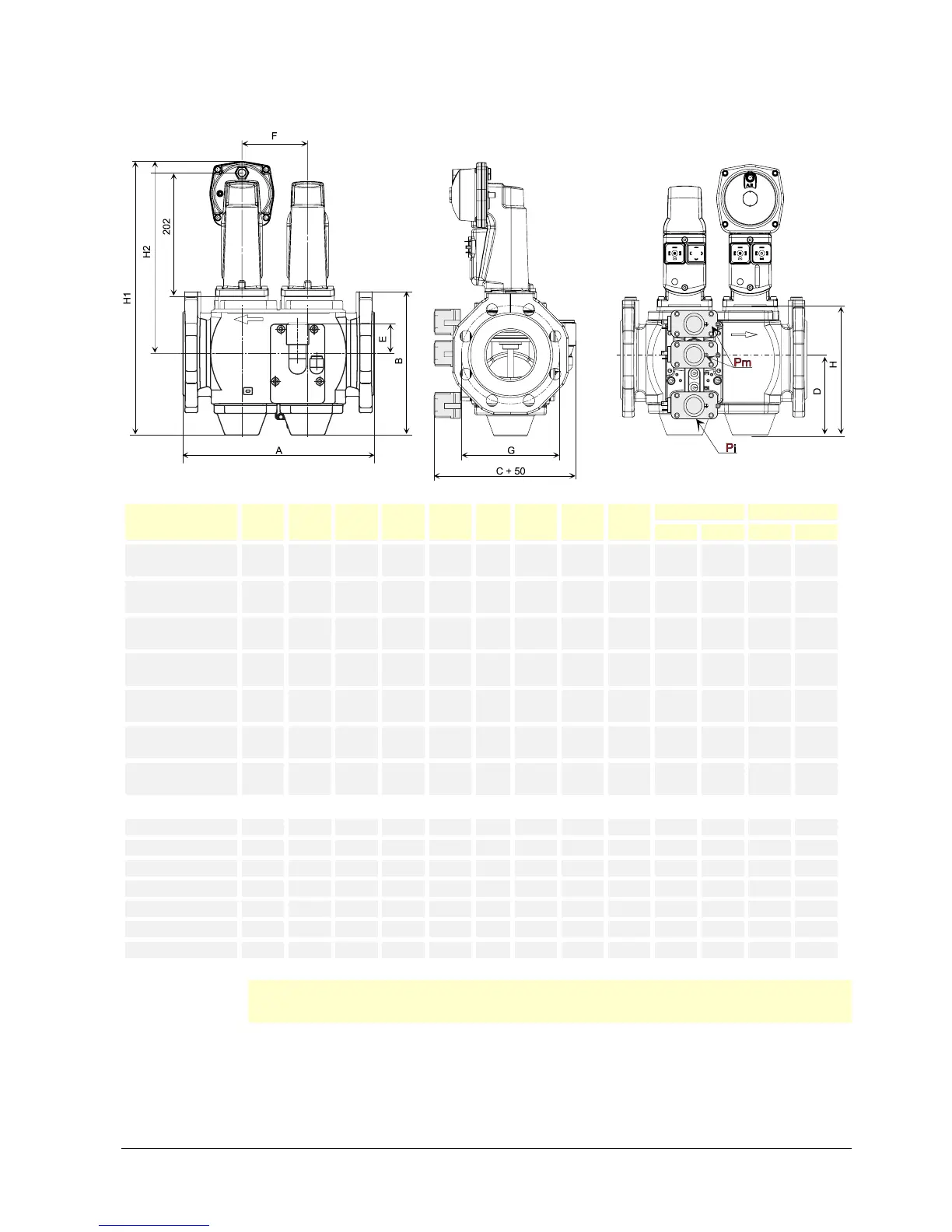

2.7 Installation dimensions for the VGD4 double
gas valve with SKPx5 actuator
7643z70/0318
Type DN A B C D E F G H
SKP15
SKP25
H1 H2 H1 H2
VGD40.040 / L
VRD40.040
40 240 195 168 115 58 88 110 194 382 267 415 300
VGD40.050 / L
VRD40.050
50 240 202 175 115 58 88 125 194 382 267 415 300
VGD40.065 / L
VRD40.065
65 290 214 195 118 60 102 145 200 388 270 421 303
VGD40.080 / L
VRD40.080
80 310 236 204 132 54 107 160 224 412 280 445 313
VGD40.100 / L
VRD40.100
100 350 259 228 145 43 131 180 255 443 298 476 331
VGD40.125 / L
VRD40.125
125 400 305 256 175 31 150 210 303 491 316 524 349
VGD40.150
/ L
VRD40.150
150 480 335 294 188 20 168 240 333 521 333 554 366
VGD41.040
40 240 195 149 115 58 88 110 194 382 267 415 300
VGD41.050
50 240 202 160 115 58 88 125 194 382 267 415 300
VGD41.065
65 290 214 178 118 60 102 145 200 388 270 421 303
VGD41.080
80 310 236 192 132 54 107 160 224 412 280 445 313
VGD41.100
100 350 259 208 145 43 131 180 255 443 298 476 331
VGD41.125
125 400 305 236 175 31 150 210 303 491 316 524 349
VGD41.150
150 480 335 276 188 20 168 240 333 521 333 554 366
Β
Note!
VGD40.xxxL double gas valves are supplied with reverse-mounted connecting plates.
