2.3. LCP+ – Line Controller PERIDECT+
LCP+ line controller creates a communication interface for all line modules. This line is used
for both powering and communication of the modules. The communication is carried out based on
the principle of regular query where LCP+ receives information from individual modules of the line to
process them and send the results to the CUP+ control unit using the RS232 serial interface.

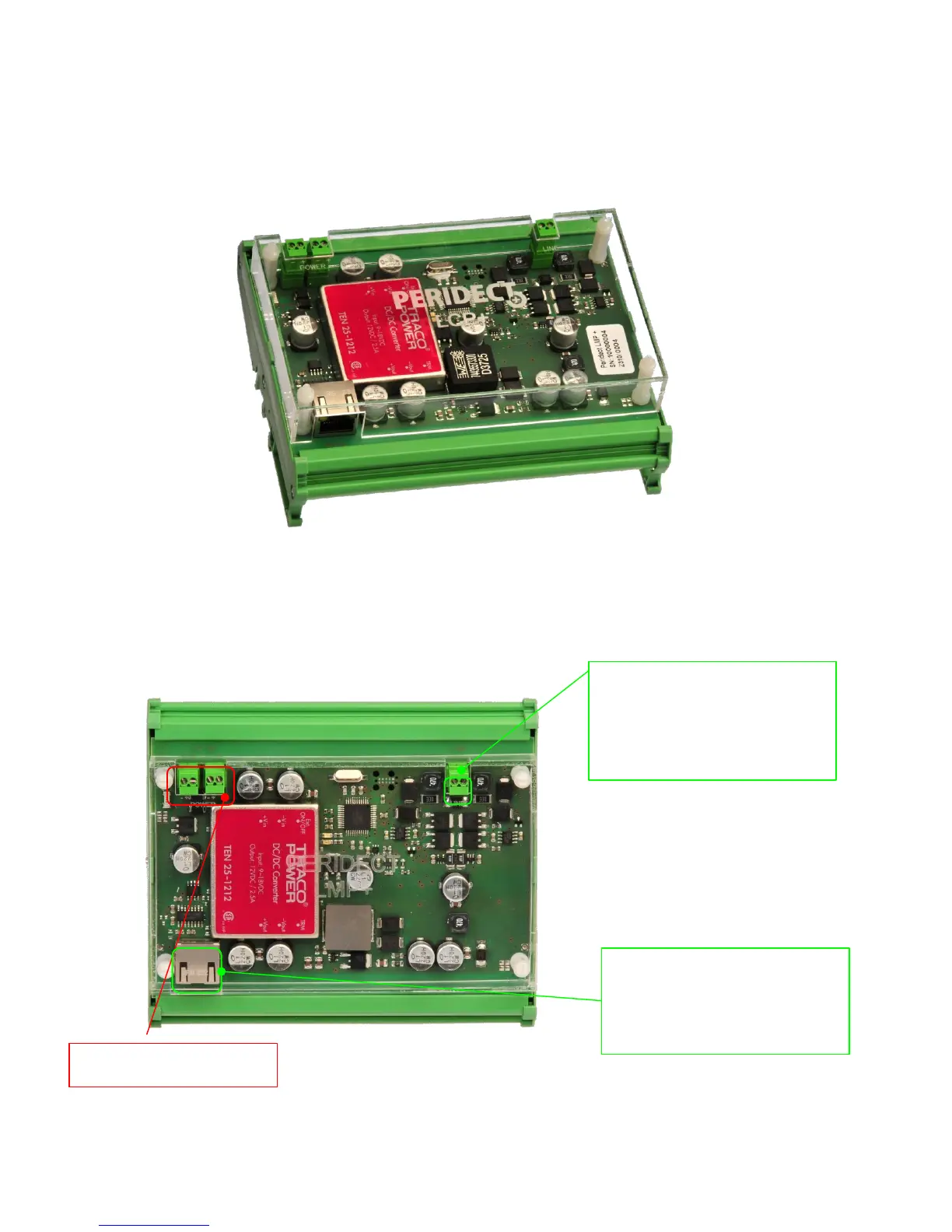

2.3.1. Connecting the LCP+ Terminal Board
LCP+ Line Controller
Supply terminal board – supply
voltage of 9 – 16 VDC
RS232 connector – used for
connection and communication with
the CUP+ control unit. It’s possible to
use standard UTP patchcord.
Data line – used for connection and
communication with all line types of
the modules. The bus has no polarity,
meaning the modules can be wired in
any way.
