- 15 -

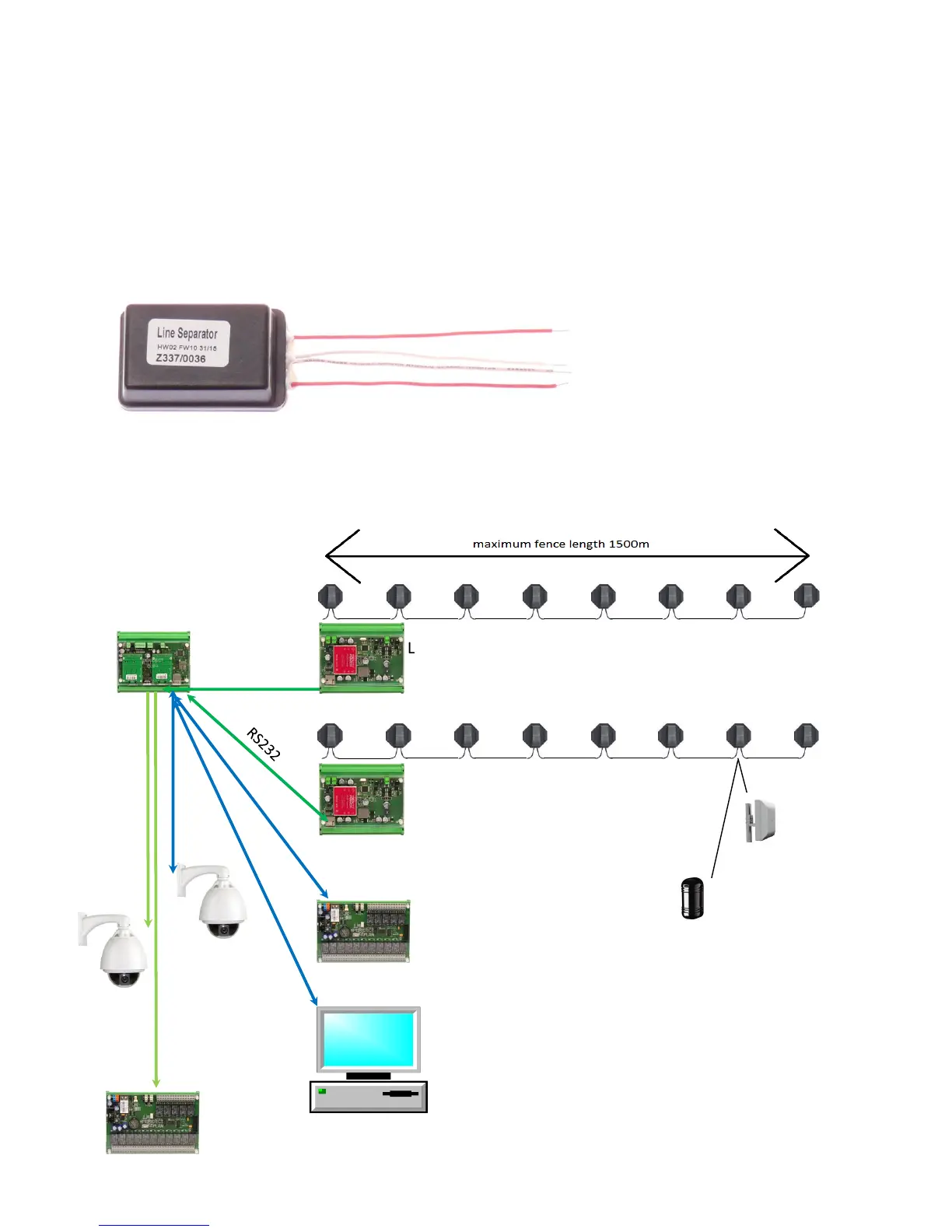

2.7. LSP+ – Line Separator PERIDECT+
The line separator is placed in the same casing as the detector. Its purpose is to
separate/disconnect a part of the line that experiences a change in terms of electrical wiring
parameters such as short circuit, lead-in etc. The part is disconnected by insulators while the rest of
the line remains operational. This is why the insulator is equipped by two pairs of cable outlets.
These are both equal, no need to distinguish the inlet from the outlet. The line separators feature a
built-in overvoltage protection. That means that as long as there are separators fitted within a line, it
is fine to only provide enough overvoltage protection modules to satisfy the rule of 15 – 25 LPP
modules per line.
2.8. Block Diagram of the System
m
