DSP+ contains a sensor fitted in a protective casing. This sensor detects mechanical shocks
of the fence via piezoelectric converters. The shocks are digitised, pre-processed by the sensor's
microprocessor and delivered using digital sub transfer to the LCP+ module for further processing
and finally to the CUP+ evaluation unit.
PERIDECT+ detection sensor

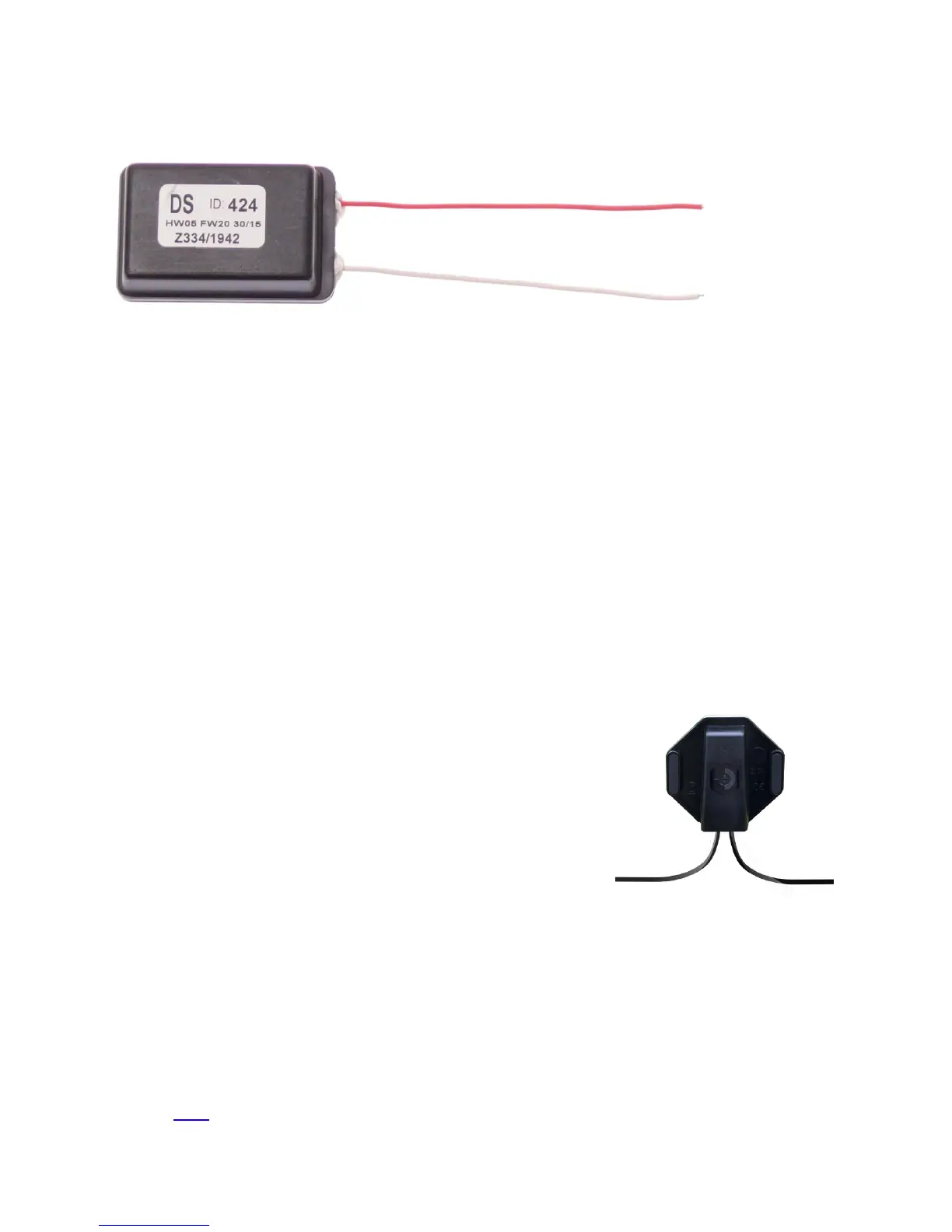

Marking of the PERIDECT+ detection sensor on the picture:
DS – type of detection sensor
ID : 424 – Sensor address (1 – 500)
30/15 – production date (week number and year)
Z334 – internal marking
1942 – internal marking
FW20 – firmware version
HW05 – hardware version
2.1.1. Standard Version
A basic detection perimeter version. The Standard version
currently uses the same casing design as the Antivandal version.
The detection sensor is placed in the detector casing that acts as a
"roof" and therefore has to be installed using a cover with two
screws that always point towards the ground.
The detectors are connected using a special twin-core cable
of exterior design, i.e. a cable with coating resistant to UV radiation
and outside environment.
The Standard version of detection perimeter always comes with pre-connected detectors.
When ordering
a detection line, it is necessary to define the posts spacing (a direct distance between the centre of
one post to the centre of another). In case the pole spacing varies, the longest distance is used. This
is used as a measure for cables in production, with an installation addition of approximately 40 cm
added for turns at the detector and around the post.
For reasons of weight and dimensions of the detectors, the Standard version detection lines
come in packages of maximum of 100 interconnected detectors. The delivered segments are
connected at the installation site to make a complete perimeter. A detailed installation is described in
chapter 2.1.4.
