Power Star W7 Pure Sine Wave Inverter/Charger User’s Manual www.sigineer.com
5

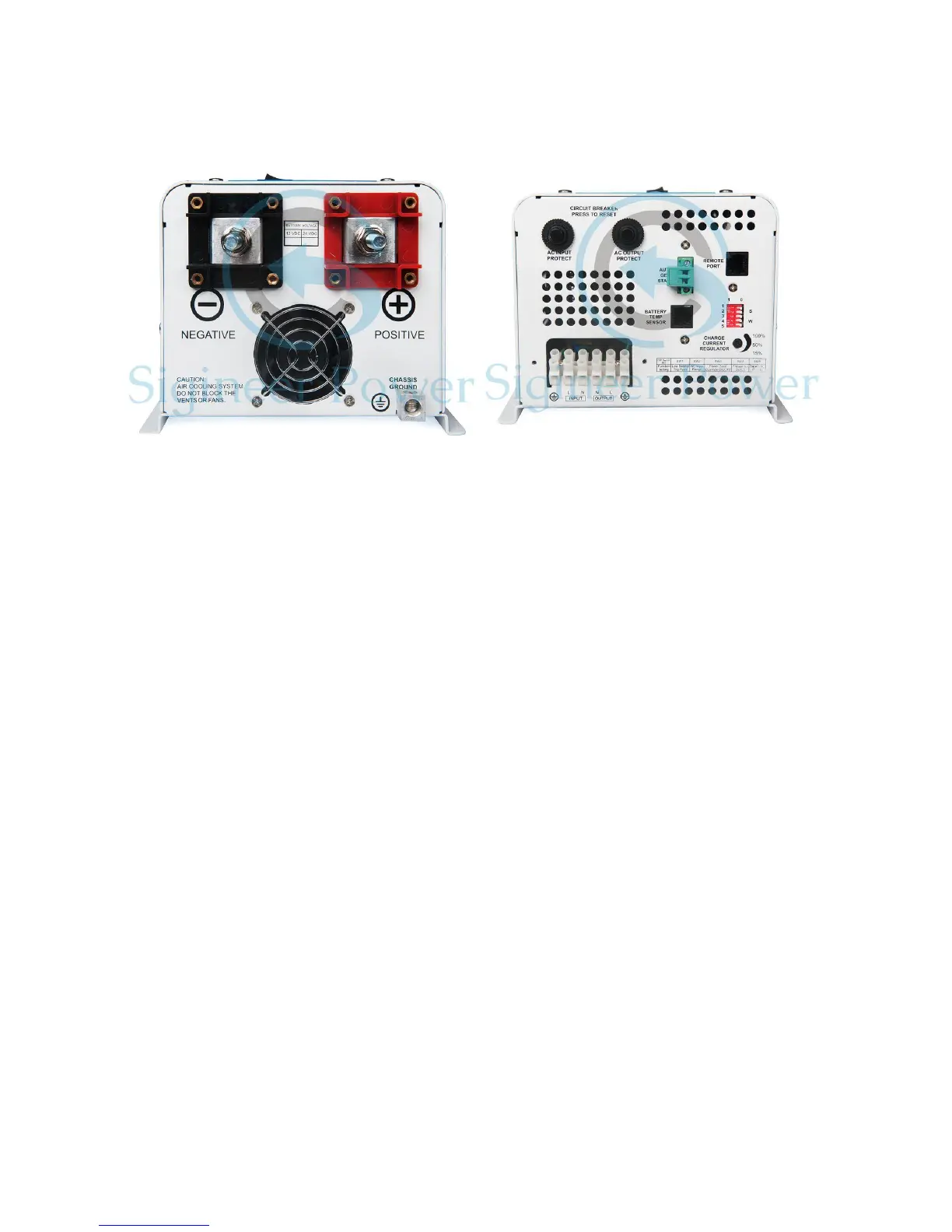

2.3 Mechanical Drawing
2.4 Features
 Smart remote LCD control
 Auto Generator Start(Optional)
 Battery Temperature Sensing for increased charging precision(Optional)
 Manual 50Hz/60Hz output frequency switch
 Maximum 90% conversion efficiency
 High surge output capability, 300% peak load for 20 seconds
 Low quiescent current
 Battery type selector for 8 types of batteries and de-sulphation for completely drained batteries
 10ms transfer time from AC to battery for continuous load operation
 15 sec DC to AC transfer delay, improved protection for generator driven loads
 Thermally controlled variable speed fan for more efficient cooling
 Extensive protections against various harsh situations
2.5 Electrical Performance
2.5.1 Invert
Topology
The PSW7 Series pure sine wave inverter/charger is built according to the following topology.
Invert: Full Bridge Topology.
Charge: Isolated Boost Topology
When operating in invert mode, the direct current (DC) that enters the inverter from the batteries is filtered
