2 Layout and mode of operation
→
2.1 Layout of the centrifuge
2.1.1 Functional and operating elements
1 Lid
2 Display
3 User interface
(see chapter 6.3.1 -
"User interface")

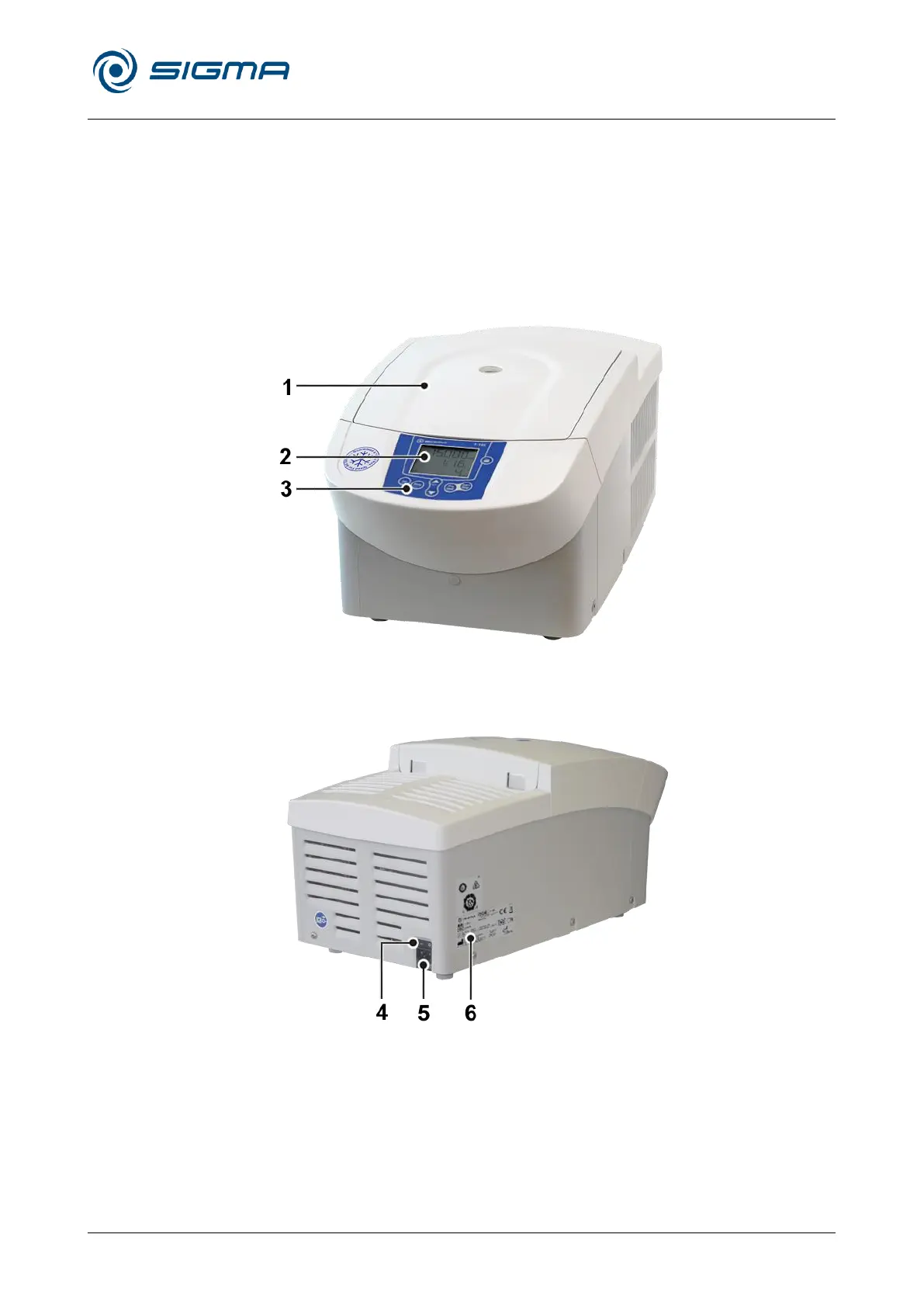

Fig. 1: Total view of the centrifuge
4 Mains power switch
5 Mains power input
6 Name plate
(see chapter 2.1.2 -
"Name plate")
Fig. 2: Rear view of the centrifuge (example)
