3.2 EOX
®
REMOTE 500 and EOX
®
VIEW 1200
− Loosen the screw of the EOX
®
VIEW 1200.
− Open the elastic clamp and bend it around the handlebar (31.8 - 35.0 mm).
− Adjust the clamp in a way that the EOX
®
VIEW 1200 is aligned inside the drivers viewpoint.
− Tighten the screw (Allen Bolt 3mm) with 0.40 Nm.
− Open the clamp of the EOX
®
REMOTE 500 and place it on the handlebar (22.2 mm).
− Close the clamp and align the EOX
®
REMOTE 500 ergonomically fi t.
− Take care that the cable fi ts the intended guidance at the inner side of the clamp.
− Tighten the screw (Allen Bolt 3mm) (for tightening force please refer to table below).

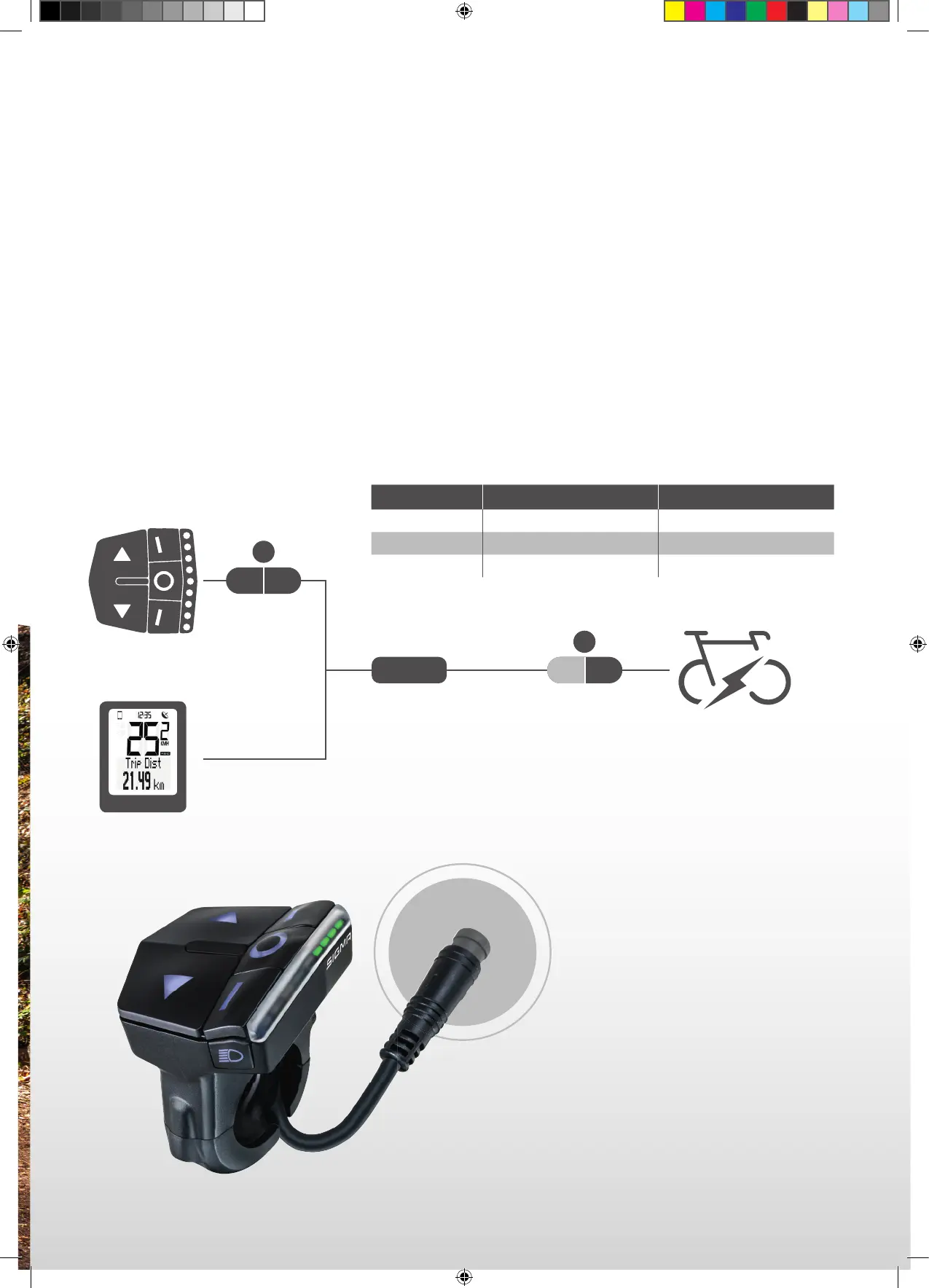

− Connect the female plug of the EOX
®
VIEW 1200 with the male plug of the EOX
®
REMOTE 500 (A).
− Connect the male plug of the EOX
®
VIEW 1200 with the cable of your E-Bike (B).
Butler Handlebar diameter Tightening force
Out-front 31.8 mm 0.5 +/- 0.1 Nm
Reverse 31.8 mm 0.5 +/- 0.1 Nm
Reverse 35.0 mm 0.8 +/- 0.1 Nm
