Sigma SL-50 - Page 17

SL-50 SL-60 MIXERS
17 of 23

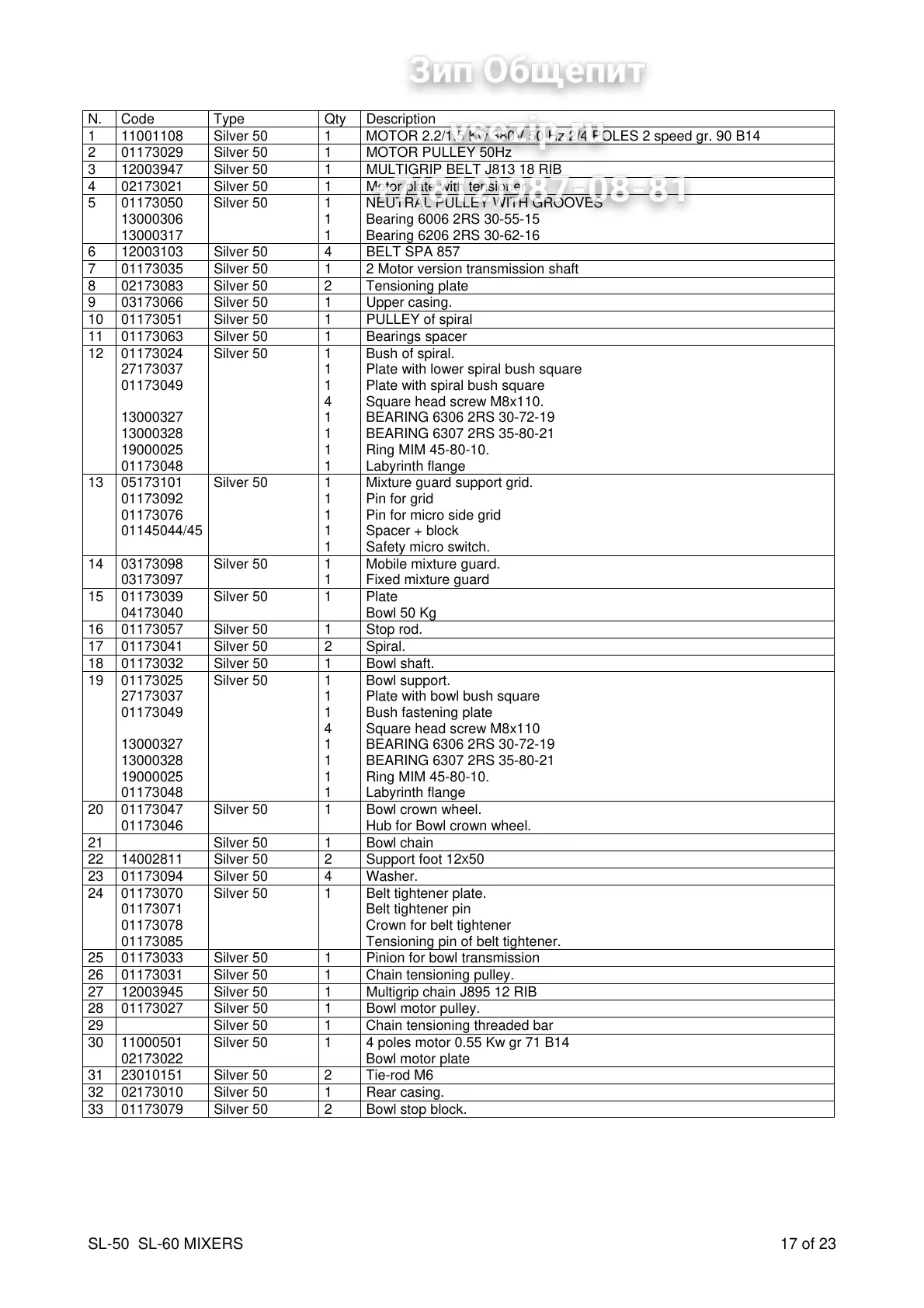

N. Code Type Qty Description
1 11001108 Silver 50 1 MOTOR 2.2/1.5 Kw 380V 50 Hz 2/4 POLES 2 speed gr. 90 B14
2 01173029 Silver 50 1 MOTOR PULLEY 50Hz
3 12003947 Silver 50 1 MULTIGRIP BELT J813 18 RIB
4 02173021 Silver 50 1 Motor plate with tensioner
5 01173050
13000306
13000317
Silver 50 1
1
1
NEUTRAL PULLEY WITH GROOVES
Bearing 6006 2RS 30-55-15
Bearing 6206 2RS 30-62-16
6 12003103 Silver 50 4 BELT SPA 857
7 01173035 Silver 50 1 2 Motor version transmission shaft
8 02173083 Silver 50 2 Tensioning plate
9 03173066 Silver 50 1 Upper casing.
10 01173051 Silver 50 1 PULLEY of spiral
11 01173063 Silver 50 1 Bearings spacer
12 01173024
27173037
01173049
13000327
13000328
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bush of spiral.
Plate with lower spiral bush square
Plate with spiral bush square
Square head screw M8x110.
BEARING 6306 2RS 30-72-19
BEARING 6307 2RS 35-80-21
Ring MIM 45-80-10.
Labyrinth flange
13 05173101
01173092
01173076
01145044/45
Silver 50 1
1
1
1
1
Mixture guard support grid.
Pin for grid
Pin for micro side grid
Spacer + block
Safety micro switch.
14 03173098
03173097
Silver 50 1
1
Mobile mixture guard.
Fixed mixture guard
15 01173039
04173040
Silver 50 1 Plate
Bowl 50 Kg
16 01173057 Silver 50 1 Stop rod.
17 01173041 Silver 50 2 Spiral.
18 01173032 Silver 50 1 Bowl shaft.
19 01173025
27173037
01173049
13000327
13000328
19000025
01173048
Silver 50 1
1
1
4
1
1
1
1
Bowl support.
Plate with bowl bush square
Bush fastening plate
Square head screw M8x110
BEARING 6306 2RS 30-72-19
BEARING 6307 2RS 35-80-21
Ring MIM 45-80-10.
Labyrinth flange
20 01173047
01173046
Silver 50 1 Bowl crown wheel.
Hub for Bowl crown wheel.
21 Silver 50 1 Bowl chain
22 14002811 Silver 50 2 Support foot 12X50
23 01173094 Silver 50 4 Washer.
24 01173070
01173071
01173078
01173085
Silver 50 1 Belt tightener plate.
Belt tightener pin
Crown for belt tightener
Tensioning pin of belt tightener.
25 01173033 Silver 50 1 Pinion for bowl transmission
26 01173031 Silver 50 1 Chain tensioning pulley.
27 12003945 Silver 50 1 Multigrip chain J895 12 RIB
28 01173027 Silver 50 1 Bowl motor pulley.
29 Silver 50 1 Chain tensioning threaded bar
30 11000501
02173022
Silver 50 1 4 poles motor 0.55 Kw gr 71 B14
Bowl motor plate
31 23010151 Silver 50 2 Tie-rod M6
32 02173010 Silver 50 1 Rear casing.
33 01173079 Silver 50 2 Bowl stop block.
