CCP 621 C-DIAS PROSESSOR MODULE

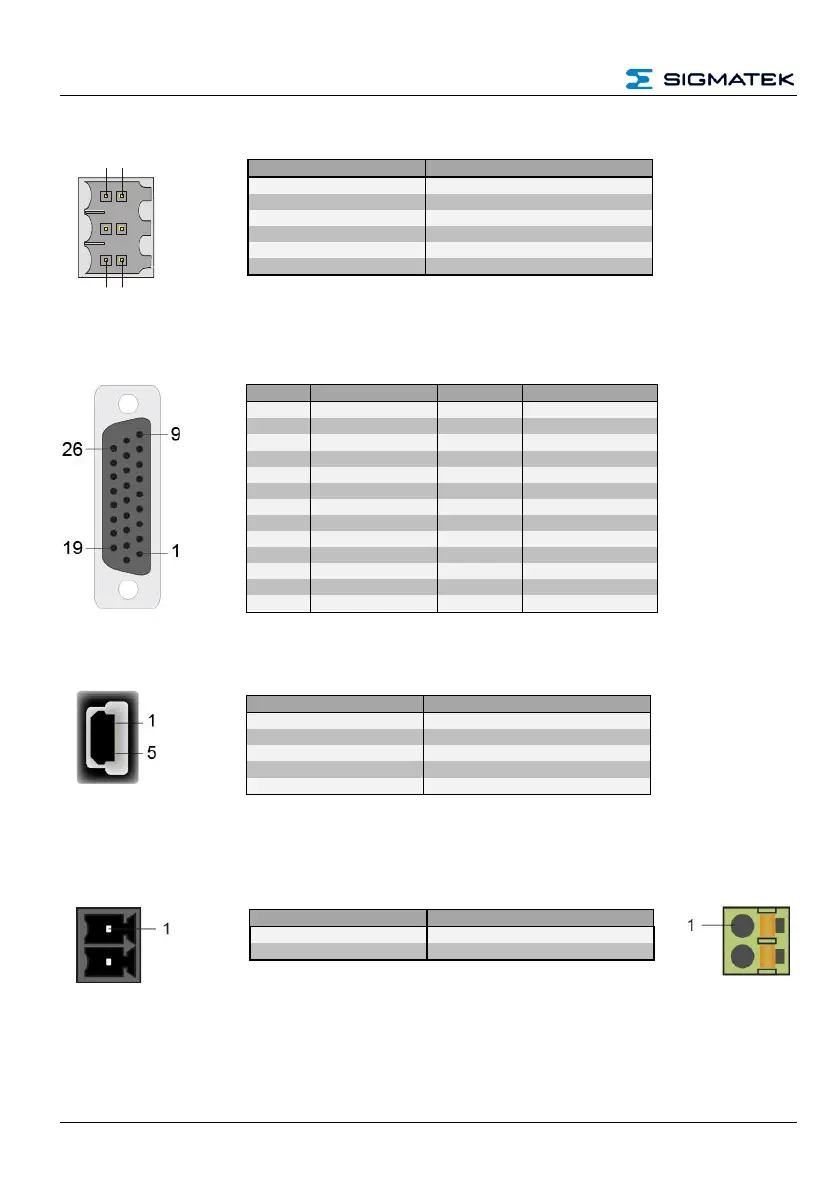

Page 12 27.03.2020
X4: CAN Bus
X5: S-DVI (26-pin HD-D-Sub)
X6: USB Device 1.1
X7: Supply
Pin
Function
1
CAN A (CAN LOW)
2
CAN B (High)
3
CAN A (CAN LOW)
4
CAN B (High)
5
GND
6
n.c.
Pin
Function
Pin
Function
1
DVI1+
14
Shielded
2
DVI1
15
Shielded
3
DVI2+
16
Shielded
4
DVI2
17
Shielded
5
DVI3+
18
Shielded
6
DVI3
19
+24 V
7
DVIC+
20
+24 V
8
DVIC-
21
USB Ext. In+
9
Reserved
22
USB Ext. In-
10
GND
23
USB Ext. Out+
11
GND
24
USB Ext. Out-
12
Shielded
25
CAN A
13
Shielded
26
CAN B
Pin
Function
1
+5 V
2
D-
3
D+
4
n.c.
5
GND
Pin
Function
1
+24 V supply
2
GND
1 2
65
