SIGMATEK CCP 621 User Manual

CCP 621 C-DIAS PROSESSOR MODULE
Page 22 27.03.2020
10 CAN Bus Termination

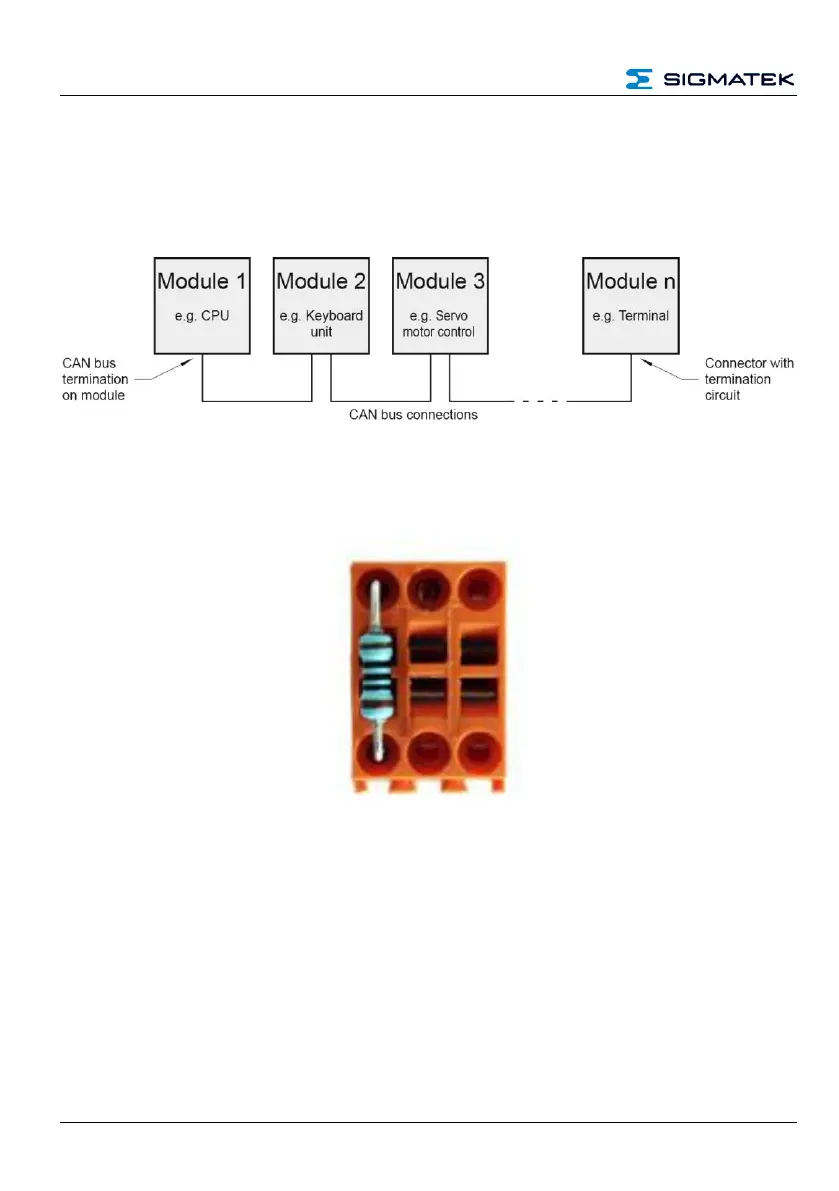

In a CAN bus system, both end modules must be terminated. This is necessary to avoid
transmission errors caused by reflections in the line.
If the CCP 621 processor module is an end module, it can be terminated by placing a
150-Ohm resistor between CAN-A (Low) and CAN-B (High).
1x 150-Ohm resistor
