C-DIAS PROCESSOR MODULE
CCP 621
27.03.2020
Page
15
5
Exchanging the microSD Card

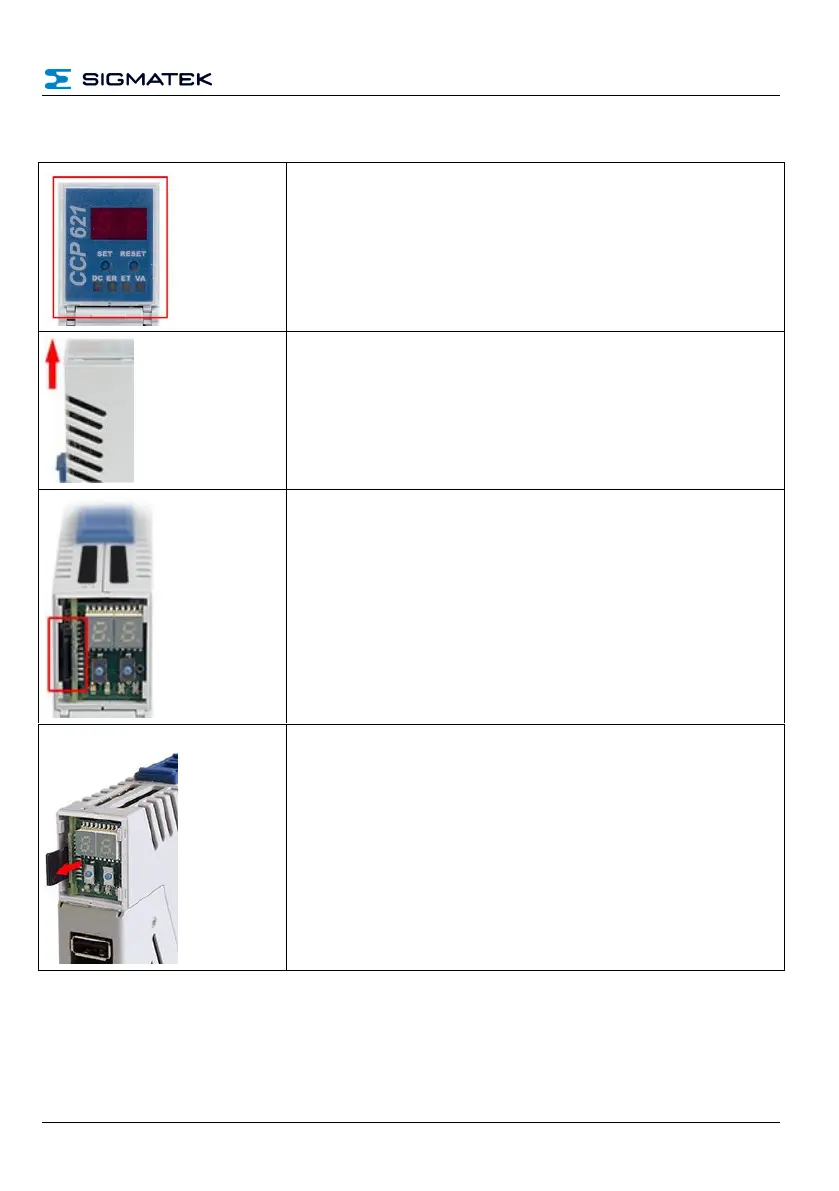

The microSD card is located under the LED cover.
To exchange the microSD card, carefully lift the LED cover.
The
m
icroSD
card
is
located
on
the
left
side
an
d
can
be
disengaged by lightly pressing on the card itself.
Remove the microSD card.
