CCP 621 C-DIAS PROSESSOR MODULE
Page 16 27.03.2020

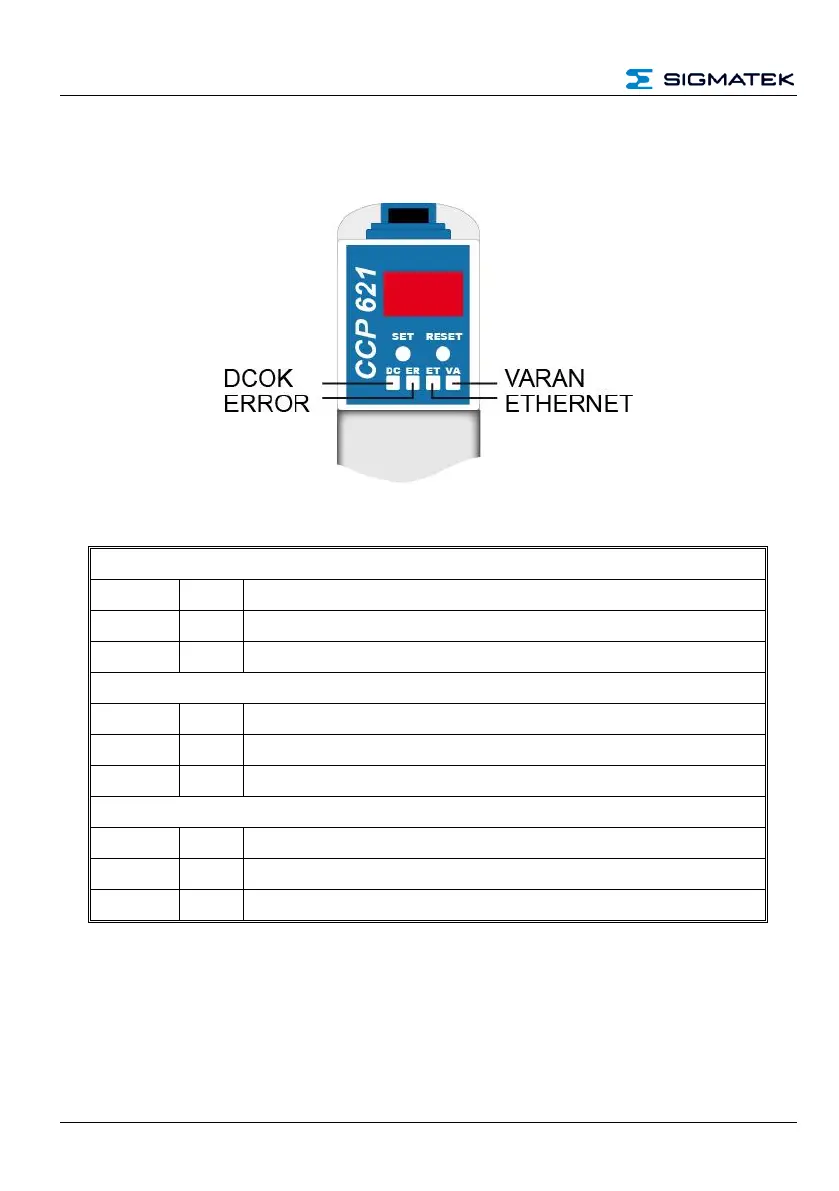

6 Status Displays
Ethernet
LED
Color
Description
ACTIVE
Yellow
Lights when data is exchanged over Ethernet
Link
Green
Lights when the connection between the two PHYs is established
VARAN
LED
Color
Description
ACTIVE
Yellow
Lights when data is exchanged over the VARAN bus
Link
Green
Lights when the connection between the two PHYs is established
Control
LED
Color
Description
ERROR
Red
Lights when an error occurs (defective USV)
DCOK
Green
Lights when the power supply is OK
