C-DIAS PROCESSOR MODULE CCP 621
27.03.2020 Page 39

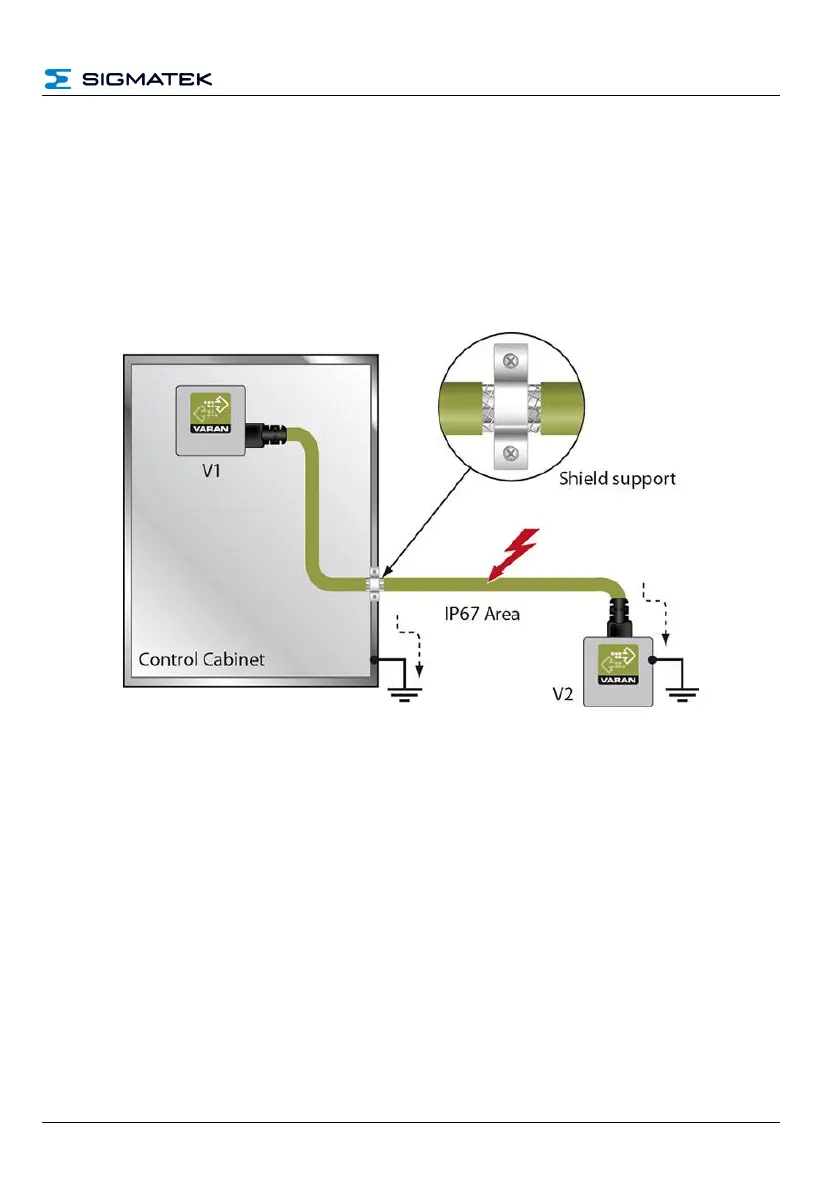

18.1 Wiring from the Control Cabinet to an External VARAN component
If the Ethernet lines are connected from a VARAN component to a VARAN node located
outside the control cabinet, the shielding should be placed at the entry point to the control
cabinet housing. All noise can then be deflected from the electronic components before
reaching the module.
