SIGMATEK CCP 621 User Manual

C-DIAS PROCESSOR MODULE CCP 621
27.03.2020 Page 13

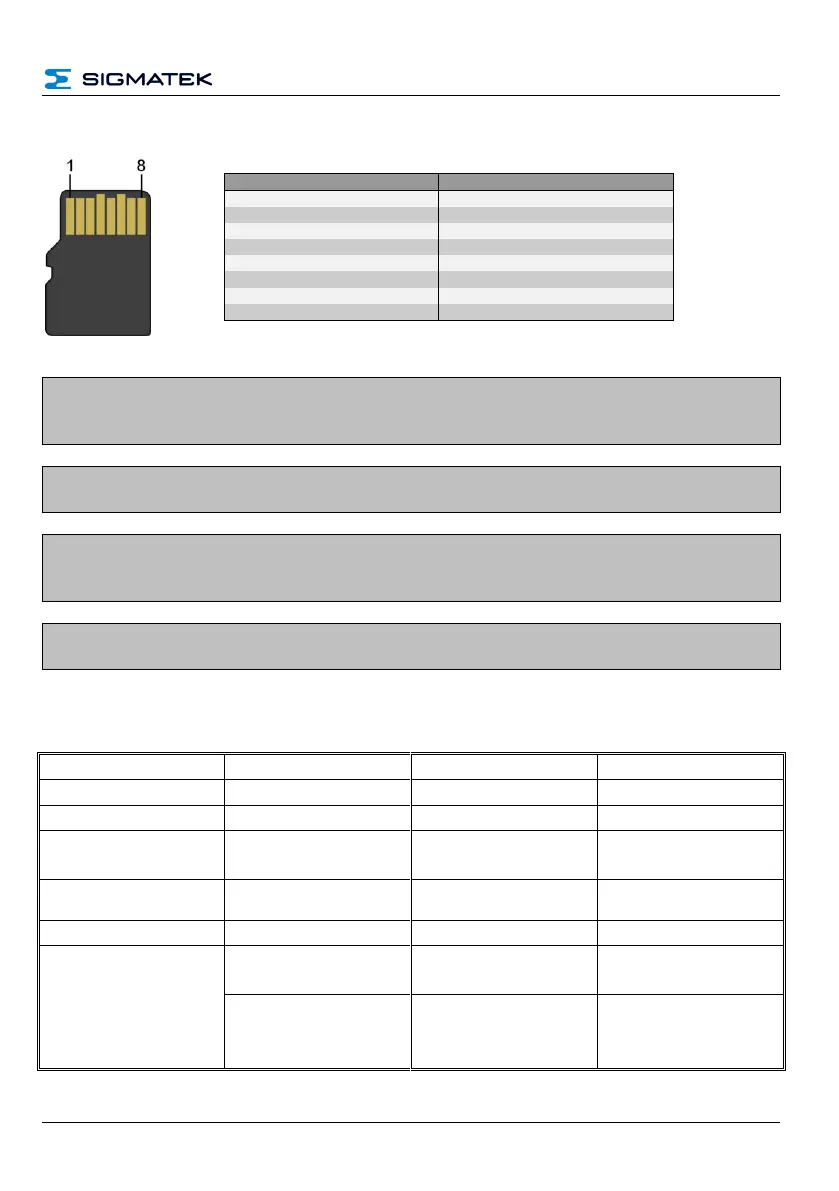

microSD Card
It is recommended that only storage media provided by SIGMATEK
(CompactFlash cards, microSD cards etc.) be used.
Order number for the 512-Mbyte EDGE microSD card: 12-630-051
The number of read and write actions have a significant influence on the
lifespan of the storage media.
Il est recommandé de n’utiliser que les supports de stockage approuvés par
SIGMATEK (compact flash, microSD, etc.).
Numéro de commande pour la carte microSD 512 Mo Edge est le: 12-630-051
Le nombre de cycles de lecture et d'écriture a l’influence notable sur la durée de vie
des supports de stockage.
4.1 Applicable Connectors
Connectors
Type
Wire Size
Max. Tightening Torque
X1
USB Type A
-
-
DR1969, SA25469:
RJ 45
-
-
X4
B2L 3.5/6
0.13 - 1.0 mm
2
28 - 18 AWG (UL/CSA)
Spring terminal
X5
D-SUB high density
26-pin
-
-
X6
USB Type Mini-B
-
-
X7
FK-MCP 1.5/2-ST-3.5
0.14 - 1.5 mm
2
28 - 16 AWG (UL/cUL)
Spring terminal
MC 1.5/2-ST-3.5
0.13 - 1.0 mm
2
,
30 - 16 AWG (UL),
28 - 16 AWG (CSA)
0.22 - 0.25 Nm
Pin
Function
1
DAT2
2
CD/DAT3
3
CMD
4
+3V3
5
Clk
6
GND
7
DAT0
8
DAT1
