C-DIAS PROCESSOR MODULE
CCP 621
27.03.2020
Page
43
18.5

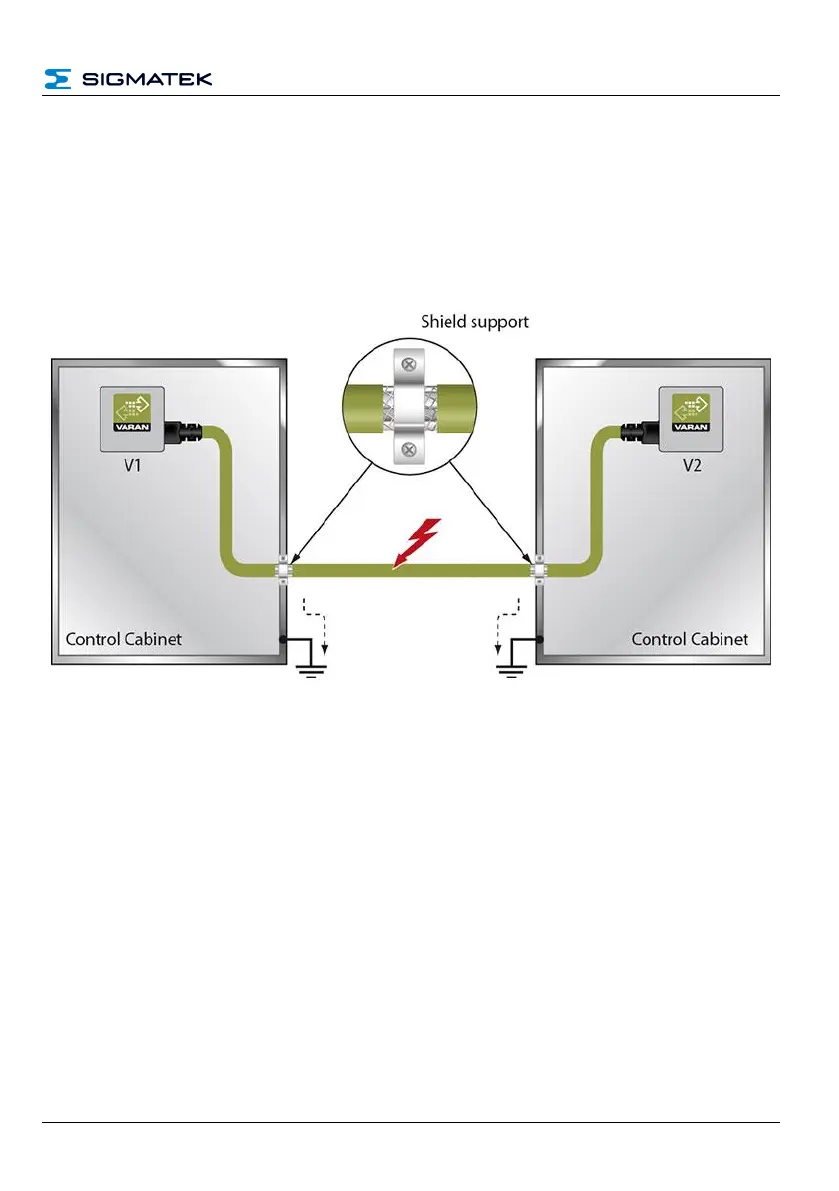

Shielding Between Two
Control Cabinets
If
two
control
cabinets
must
be
connected
over
a
VARAN
bus,
it
is
recommended
that
the
shielding
be
located
at
the
entry
points
of
bo
th
cabinets.
Noise
can
be
th
ereby
prevented
from reaching the electronics within the control cabinet.
44
46
Table of Contents
Table of Contents
4
Technical Data
7
Performance Data
7
Electrical Requirements
8
Standard Configuration
8
Miscellaneous
9
Environmental Conditions
9
Mechanical Dimensions
10
Mounting Position
11
Connector Layout
12
Applicable Connectors
15
Exchanging the Microsd Card
17
Status Displays
18
Display
19
CAN Bus Setup
20
CAN Bus Station Number
20
Number of CAN Bus Participants
20
CAN Bus Data Transfer Rate
20
Configuration of the Process Module
21
CAN Bus Termination
24
Wiring and Mounting Instructions
25
Ground
25
Shielding
26
ESD Protection
26
Mounting
27
Working with and on the CCP 621
27
Process Diagram
28
System Boot Checkpoints
29
Status and Error Messages
30
Application Exceptions
38
SRAM and IRQ Routines
38
SRAM and Consistency of Changed Data
38
The File System Does Not Support Safe Writing Via SRAM
38
Data Breakpoint
38
Note on SRAM Behavior
39
Recommended Shielding for VARAN
40
Wiring from the Control Cabinet to an External VARAN Component
41
Wiring Outside of the Control Cabinet
42
