S-DIAS SAFETY DIGITAL OUTPUT MODULE STO 081

04.11.2020 Page 19

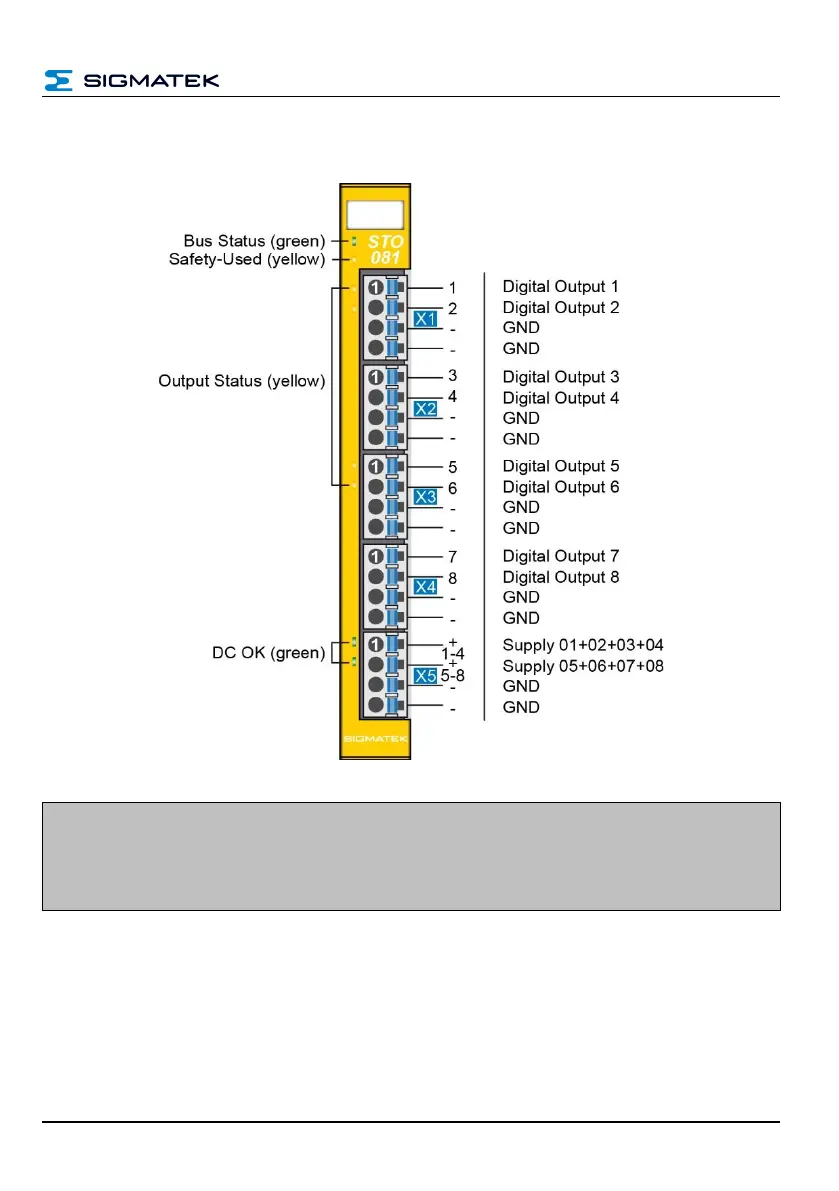

6 Connector Layout

The GND supply (X5: Pin 3 and Pin 4) is internally bridged. Only one GND pin (pin 3

or pin 4) is required to power the module. The bridged connections may be used for

further looping of the +24 V supply and the GND supply. However, it must be taken

into account that a total current of 6 A per connection is not exceeded by the forward

looping!
