INSTALLATION INSTRUCTIONS
Connecting the Transformer
120 VAC in United States, Canada and Mexico; 230 VAC in Europe, and
240 VAC in Australia and South Africa
NOTE: Refer to and follow local codes if different from these instructions.
CAUTION: Disconnect 120V (230/240V for 8274, 8276, 8279 models) power
Connect the AC Power connector from the transformer to the plug provided on
the left side of the terminal strips and route the cable through the slot provided
in the case.
Attach the wiring skirt to the unit.
Plug the AC power adaptor into the nearest receptacle.
5

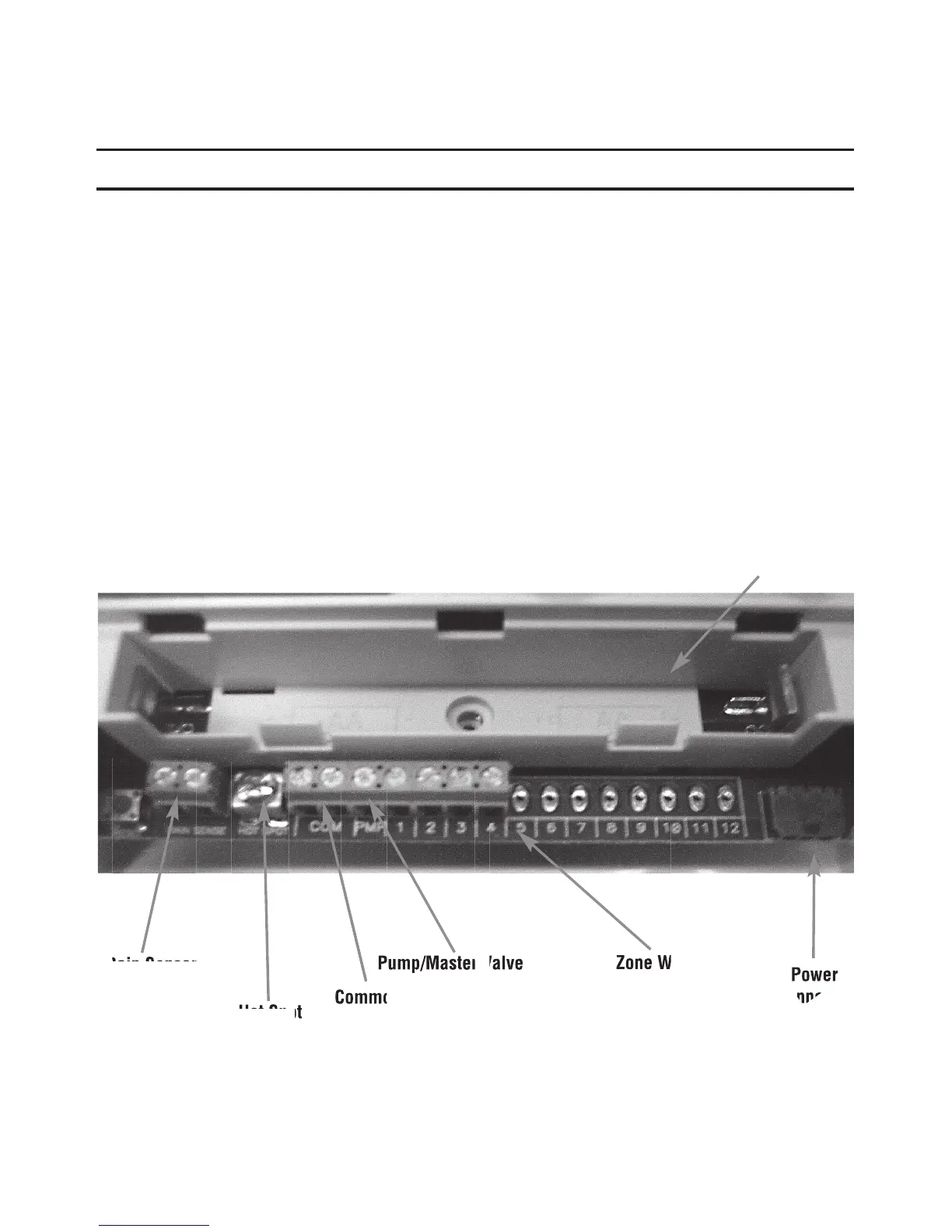

Power
Connector
Rain Sensor
Hot Spot
Common
Pump/Master Valve
Zone Wiring
AA Battery
Compartment
FIGURE 1
