SIGNODE BXT2
AUTO
MAN.
SOFT
AUTO
MAN.
SOFT
+ / -
+ / -
AUTO
MAN.
SOFT
AUTO
MAN.
SOFT
+ / -
+ / -

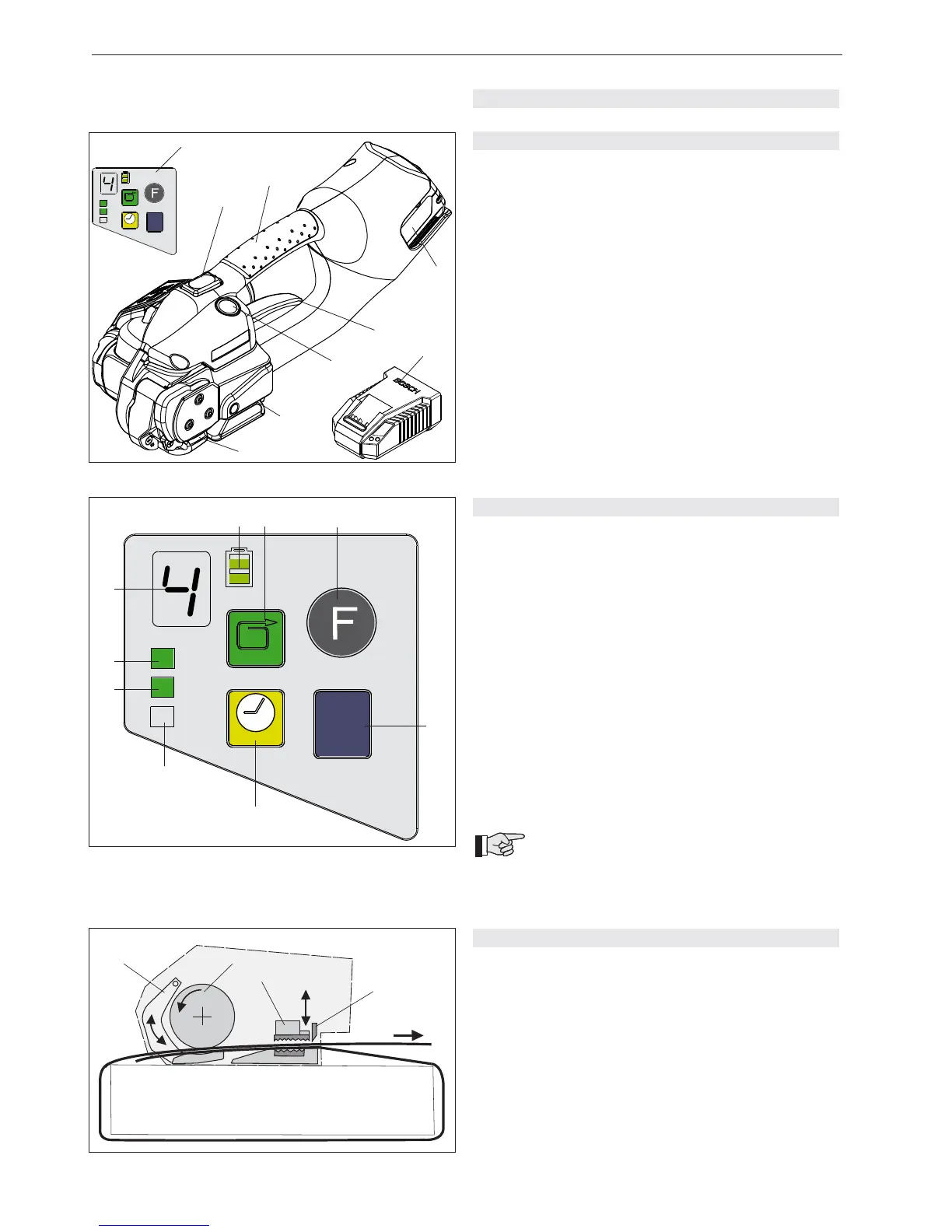

4 DESCRIPTION
4.1 CONSTRUCTION
1 Operating panel
2 Tension button „Strap tensioning/welding“ (Fully-Auto)
3 Handle
4 Battery, 14.4 V
5 Rocker lever
6 Welding button „Welding/cutting“ (manual)
7 Welding/Cutting
8 Tensioning
9 Battery charger
For detailed information, refer to the operating instruc-
tions for the battery and battery charger.
4.2 OPERATING PANEL
1 LED indicator „Battery charge“
2 Push button „Strap tension“
3 Push button „Function“
4 Push button „Mode of operation“
5 Push button „Welding time“
6 LED indicator „Soft tension“
7 LED indicator „Manual strapping“ (continuous
green light)
8 LED indicator for:
– Semi-Automatic strapping (continuous green light)
– Full-Automatic strapping (fl ashing green light)
9 Digital display for:
– Strap tension (1–9)
– Welding time (1–7)
– Cooling time (count down 3,2,1)
– Fault indication
For detailed information/adjustments, refer to
chapter 5 and 6.
Fig. 1
12 3
4
5
6
7
8
9
Fig. 2
4.3 FUNCTION
– Clamping of the straps by tooth plate on rocker
(3/1).
– Tensioning by feed wheel (3/2) counter clockwise.
– Friction welding (3/3) of the straps.
– Upper strap is cut by knife (3/4).
Fig. 3
1
2
3
4
1
2
3
4
5
6
7
8
9
