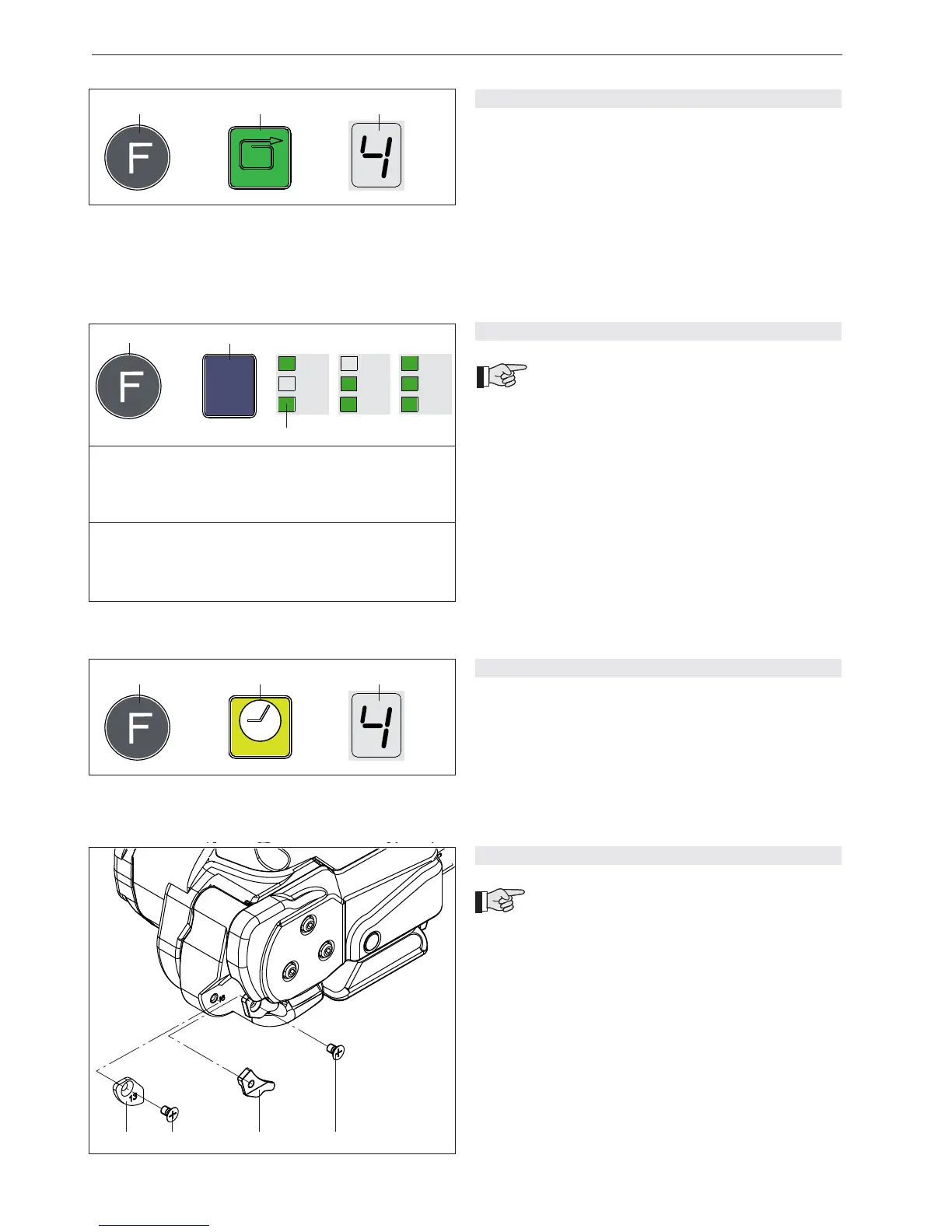

5.6 SETTING STRAP TENSION
– Press the „Function“ button (12/1) briefl y.
– Press the „Strap tension“ button (12/2) until the
fl ashing digital display (12/3) shows the required strap
tension. Wait two seconds until the new setting is
saved.
1 = min. strap tension approx. 400/900 N*
(88/200 lbs.) (PP)
9 = max. strap tension approx. 1500/2500 N*
(335/560 lbs) (PET)
* refer to Chapter 5.7
5.8 SETTING WELDING TIME
– Press the „Function“ button (14/1) briefl y.
– Press the „Welding time“ button (14/2) until the
fl ashing digital display (14/3) shows the required
welding time. Wait two seconds until the new setting is
saved.
1 = minimum welding time
7 = maximum welding time
5.7 SETTING SOFT TENSION
The following two strap tension ranges can
be set on the tool:
A = 900–2500 N (200–560 lbs.)
standard, PET straps
B = 400–1500 N (88–335 lbs.)
Soft tension*, PP straps
* Soft tension: tension wheel starts slowly. Prevents
excessive dirt on PP straps.
Setting soft tension:
– Press the „Function“ button (13/1) briefl y.
– Press the „Mode of operation“ button (13/2) several
times until the green „SOFT“ LED indicator (13/3)
lights up together with the desired mode of operation
(refer to chapter 5.5).
5.9 SETTING STRAP WIDTH
The tool can be used with three different strap
widths:
– 12–13 mm (
1
/
2
“)
– 15–16 mm (
5
/
8
“)
– 9–11 mm (option)
a) Change strap width from 12–13 mm to 15–16 mm
– Remove battery from tool.
– Release sunk screw (15/2) and remove strap stop
13 mm (15/1).
– Lift the rocker lever towards the handle, release
sunk screw (15/4) and remove strap guide 13 mm
(15/3).
Continuation page 22
