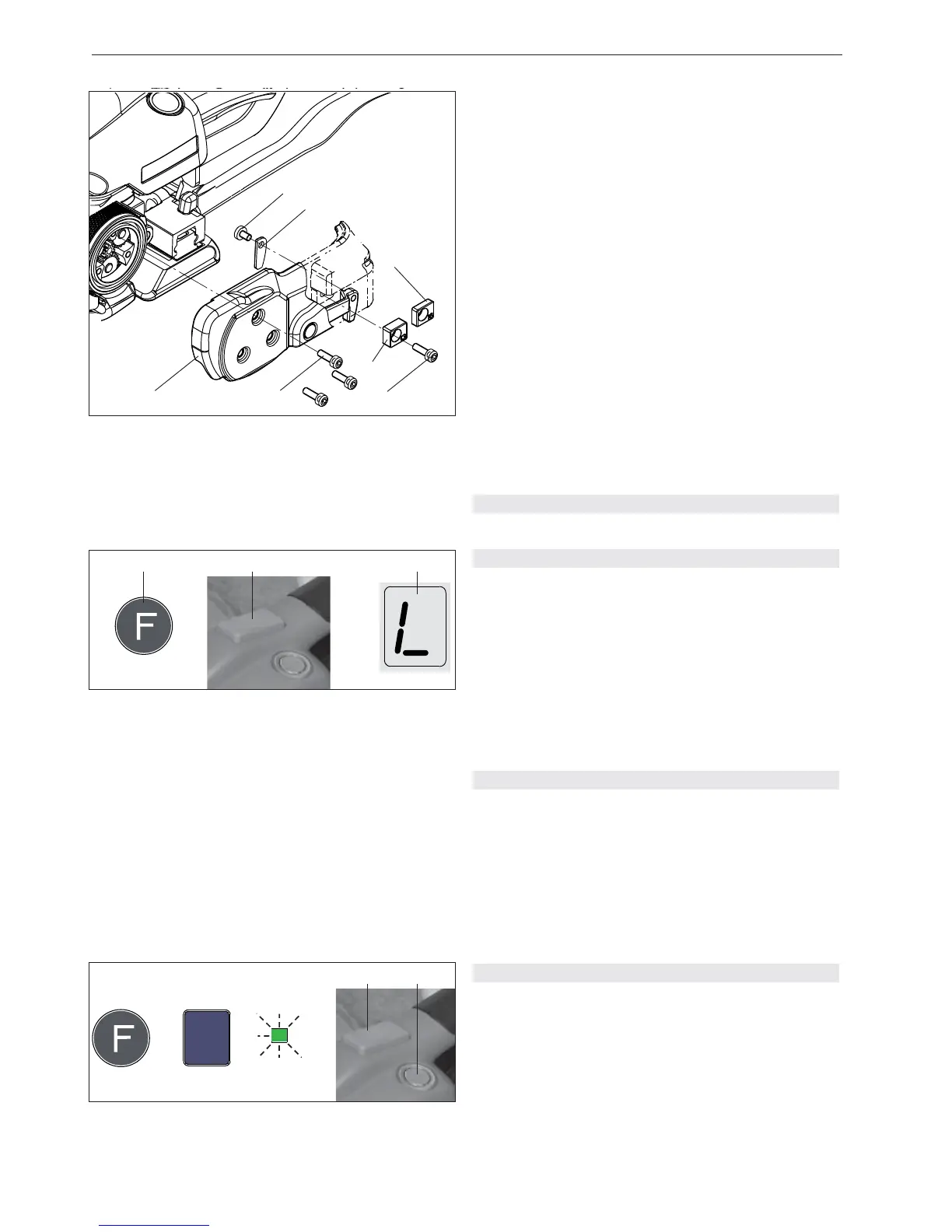

6.1 SWITCH TOUCH-PAD LOCK ON AND OFF
The touch-pad lock can be activated to prevent acciden-
tal changes to the settings.
– Press and hold the “Function“ button (17/1) and press
the tension button (17/2) at the same time. The audible
signal sounds and the keypad is blocked. If any key is
pressed, the digital display will show „L“ (Lock) (17/3).
– The keypad block is released in the same way as it is
activated.
6.2 SLEEP MODE
In order to avoid unnecessary battery consumption, the
tool changes after approx. 5 min. to sleep mode, if no
key is pressed.
– The „MAN“ LED indicator lights green.
– The digital display is switched off.
Sleep mode is switched off by touching any operating
panel element.
– Remove three cylinder screws (16/2).
– Lift the rocker lever towards the handle, remove cylin-
der screw (16/4) together with the strap stop rear
13 mm (16/3).
– Remove cover (16/1).
– Remove oval head screw (16/7) and remove strap
guide rear 13 mm (16/6) from lever.
– Install cover (16/1).
– Mount strap stop rear 16 mm (16/5).
b) Change strap width from 15–16 mm to 12–13 mm
– Mount 13 mm strap stop (15/1) and secure sunk
screw (15/2) with Loctite 222.
– Mount 13 mm strap guide (15/3) and secure sunk
screw (15/4) with Loctite 222.
– Remove strap stop rear 16 mm (16/5).
– Remove three cylinder screws (16/2) and remove
cover (16/1).
– Mount strap guide rear 13 mm (16/6).
– Install cover (16/1).
– Mount strap stop rear 13 mm (16/3).
6 SPECIAL FUNCTIONS
6.3 TOOL RESET
The tool reset may be used only if the rocker lever is
blocked:
– Change to mode of operation „Fully-Auto strapping“
(refer to Chapter 5.5).
– Press and hold welding button (18/1) and press
tension button (18/2). Tool reset starts (approx.
0.5 sec. welding).
If the tool reset could not successfully carried out,
please contact the Service Centre!
