THE STRAP DEFLECTOR IS INSTALLED BEHIND
THE BACK GUIDE.
INSTALL THE DEFLECTOR USING THE EXISTING
MOUNTING HARDWARE.
TOOL OPTIONS
STRAP DEFLECTOR (Part No. 424321)

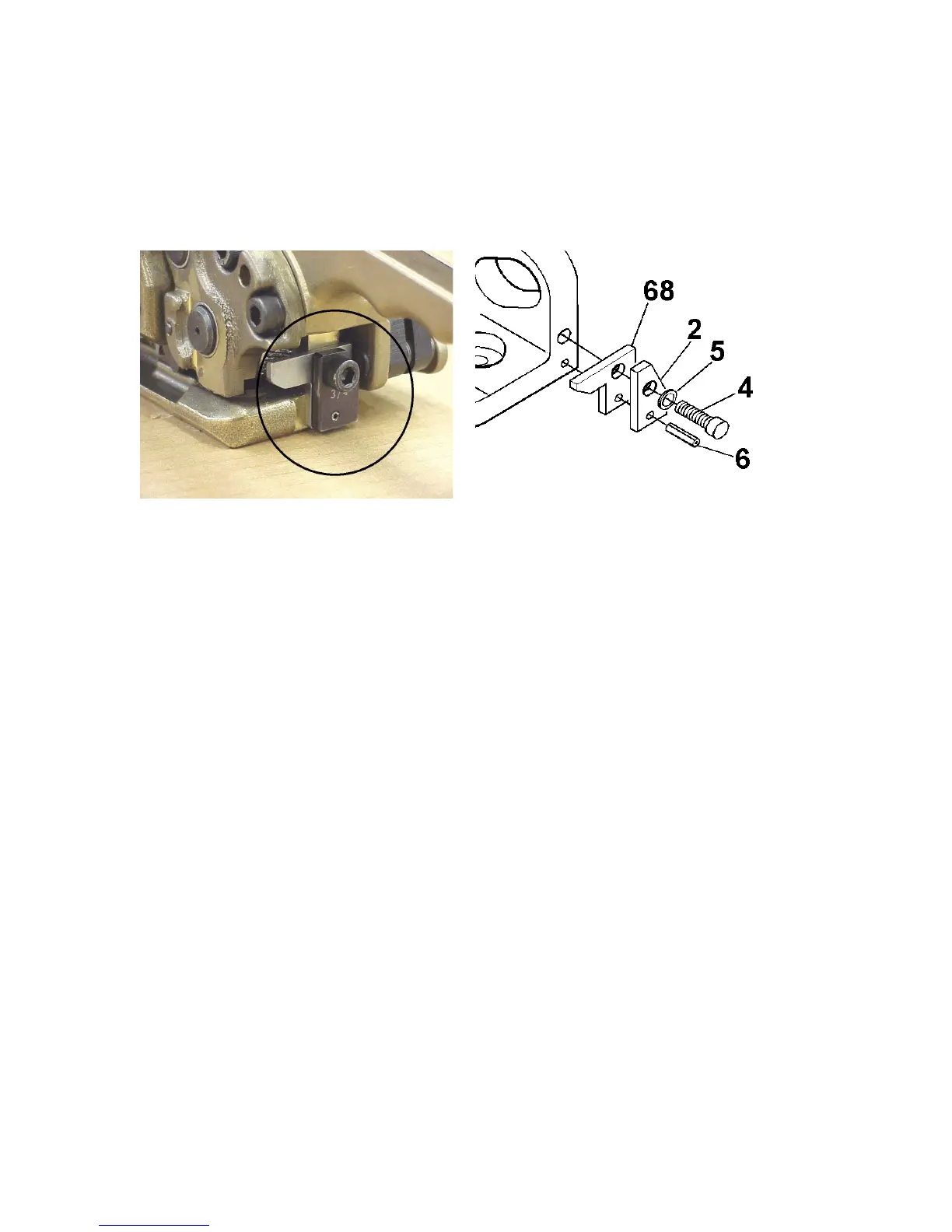

The strap deflector (Key 68) is an optional part which is used to prevent the strap from curling
around the feedwheel from severe high tension applications. The deflector is installed on the tool
behind the back guide (Key 2) as shown using the existing hardware.
