Siko AP05 Translation Of The Original Installation Instructions

AP05
Technical data English
AP05 · Date 13.05.2022 · Art. No. 88847 · Mod. status 93/22
40
6. Thread insulating sleeve
6
, solder strands and mount insulating
sleeve.
7. Screw coupling sleeve
5
with element
7
and tighten pressure screw
1
.

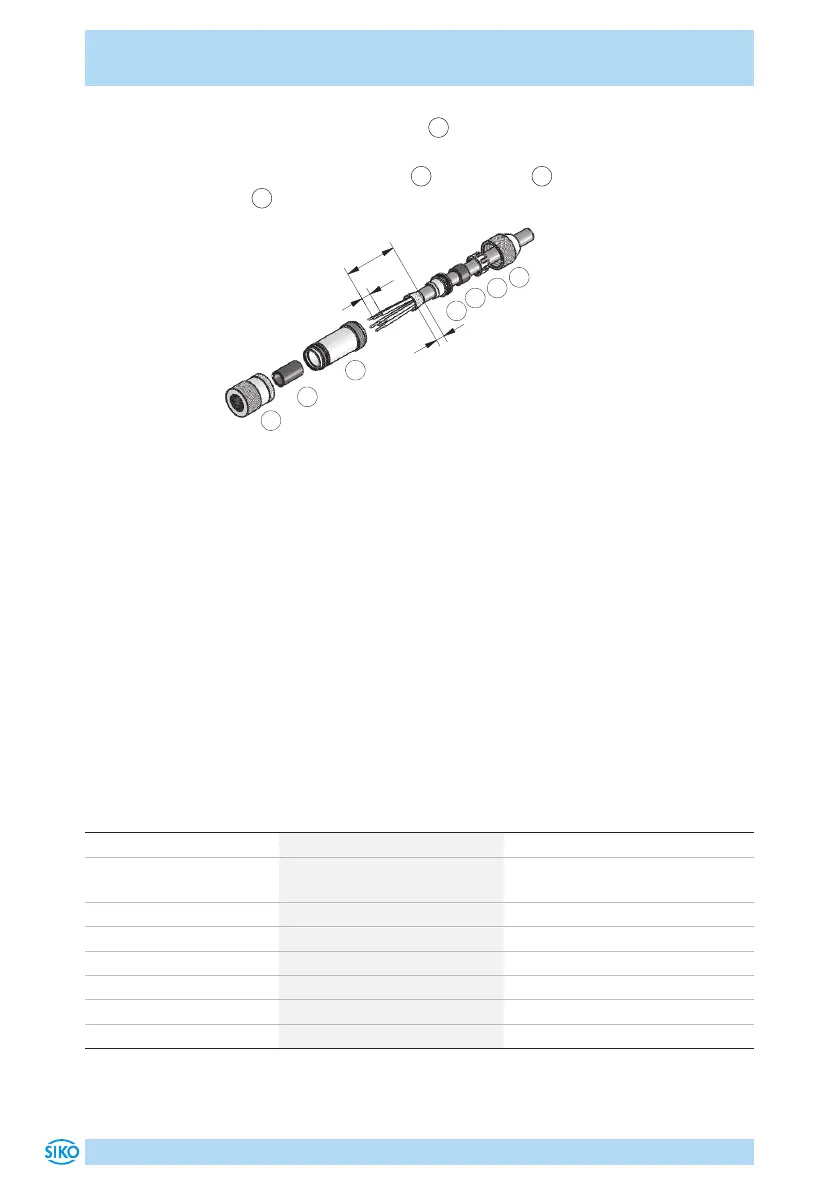

Fig. 12: Straight matting connector M8
3
2
1
4
5
6
1
2
3
4
7
8.3 Mating connector M8 bus terminator
For the fieldbus to function, a terminating resistor is required (120Ohm).
• Accessory SIKO art. no. "BAS-0005" (pin 4 pin).
For multiple position indicators on one bus: connect terminating plug to
bus OUT of the last bus station (see chapter 4.2).
For one position indicator: connect terminating plug to bus OUT (see chap-
ter 4.2).
9 Technical data
Mechanical data Additional information
Shaft plastic
Housing reinforced plastic plug thread nickel-plated brass /
ground connection metal
Color black, RAL 9005
Clamping ring stainless steel
Speed ≤500rpm
Cable sheath PUR EX15, E12X type of connection
Cable bending radius ≥30mm permanently laid
Weight ~0.07kg
