Fuse box

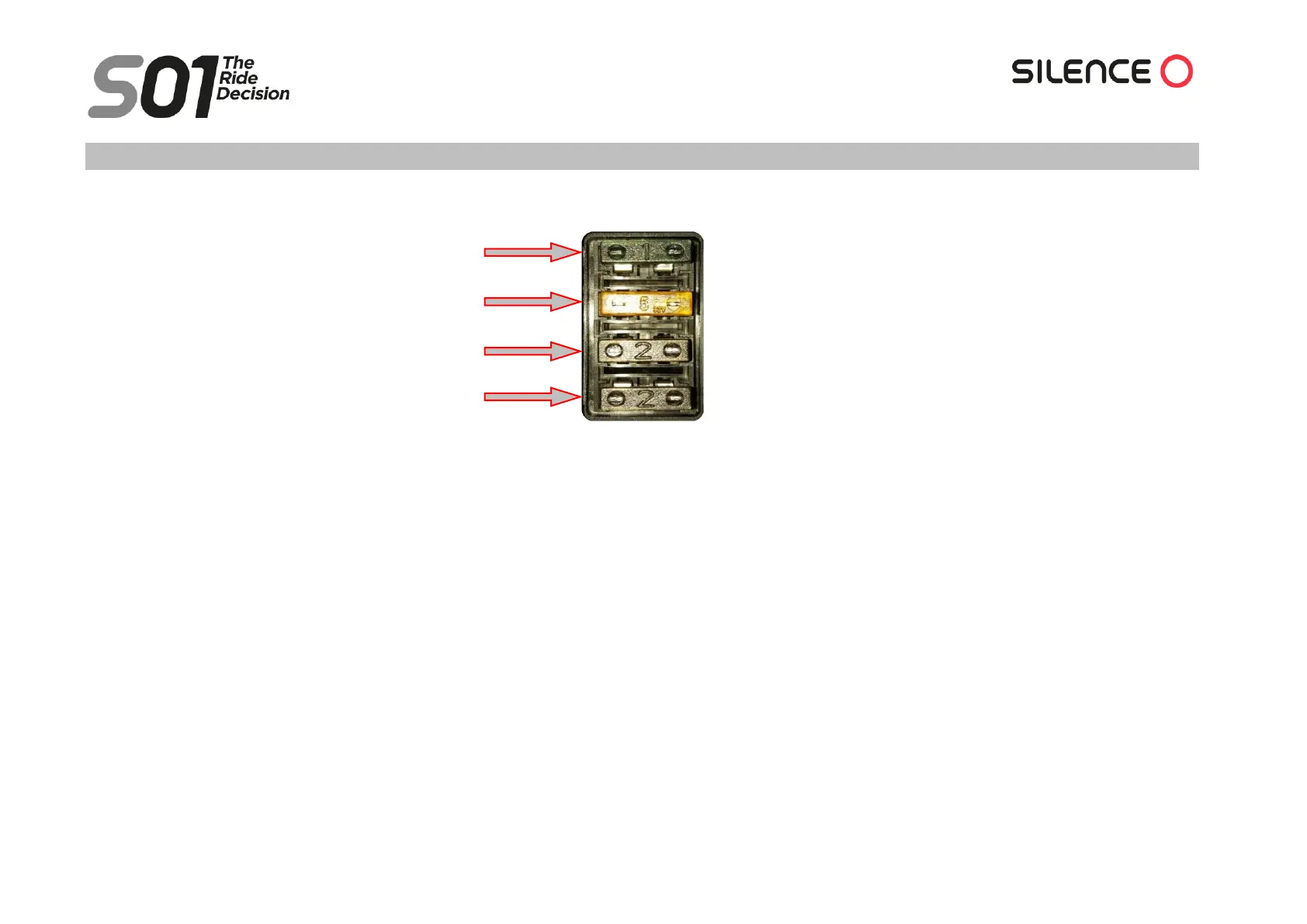

The fuse box is located under a protective lid, inside the seat compartment:
The scooter has 4 fuses, from top to bottom in the image (or from left to right on the scooter):
- F1 (Black): 1A fuse to protect the USB port.
- F2 (Orange): 5A fuse protecting the power source for lights, horn, etc. (DC/DC 12V output).
- F3 (Grey): 2A fuse protecting the DC/DC converter (DC/DC 60V input).
- F4 (Grey): 2A fuse protecting the Inverter (MCU).
