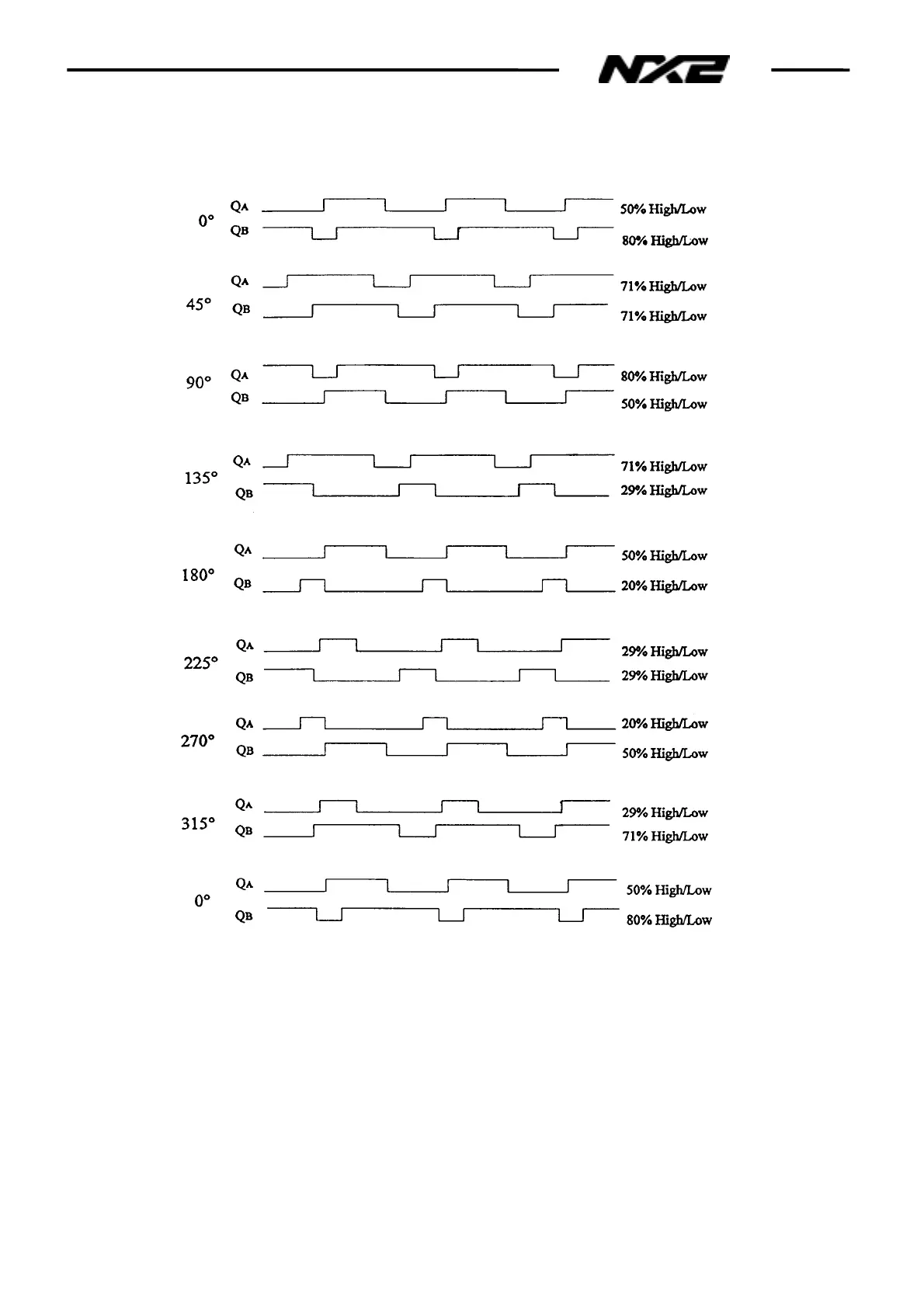

SIGNAL WAVE FORM OF WIND-CHANNELS
9.0.1
Calibration of Wind Transducer
To get accurate wind angle read out in
the NX2 system the Wind transducer has
to be calibrated for the C.55 to C62 settings.
Repair at SILVA Sweden will always be follow
ed by a Calibration Certificate from
the Calibration jigg.
