91measurNX2.doc Page 5 Latest update: 8 Jan-03
g) Re-solder the wires to the new PCB.
Re-assembly
In opposite order, but note the following:

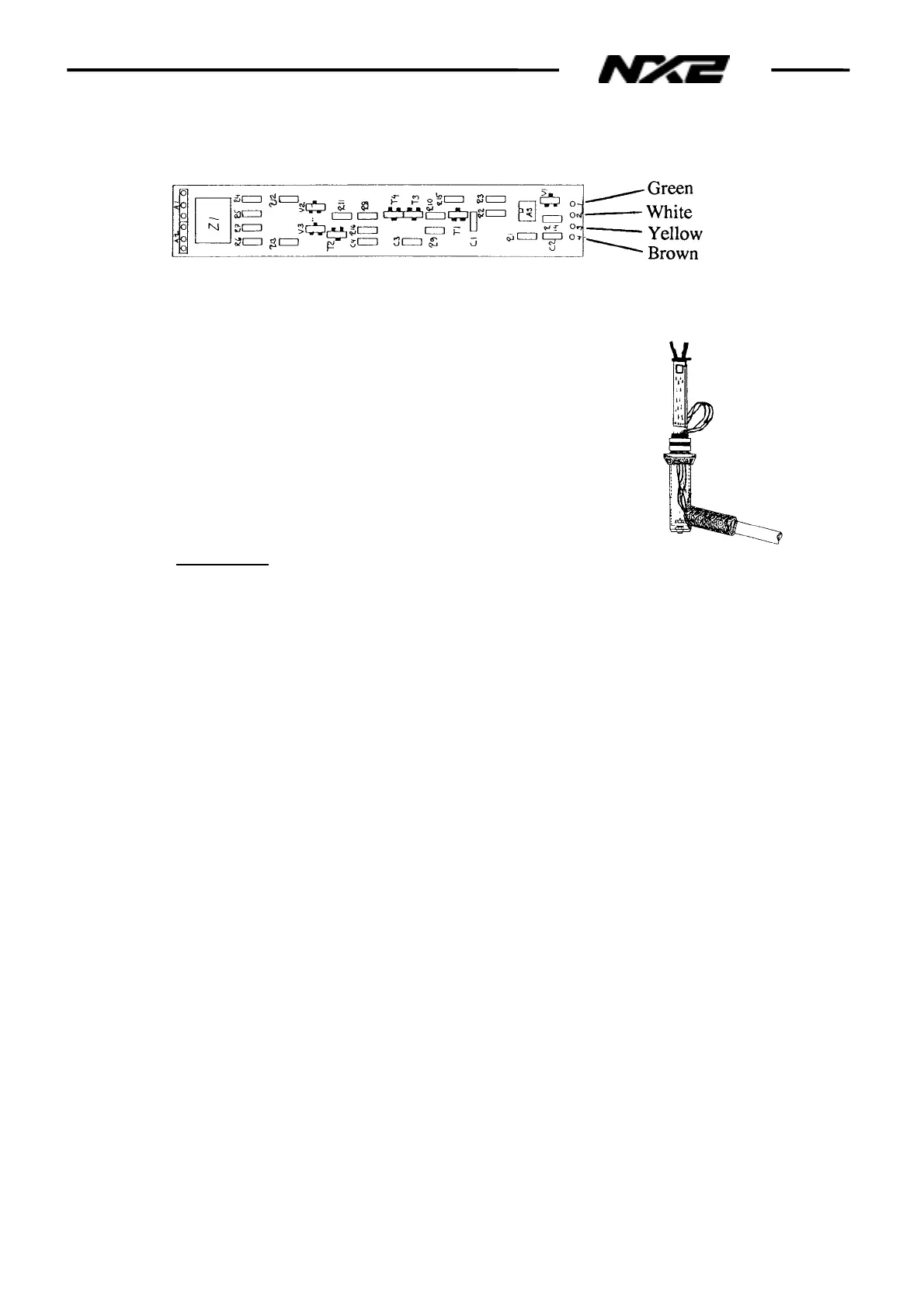

Be careful with the wires when they are put through the
opening in the bottom of inner tube. Bend them as fig.
shows before the amplifier PCB is pressed down in place.
Be aware of that the component side of the PCB is facing
forward.
If the PCB gets stuck in the slots remove the lacquer on
the edges of the PCB.
Important: Remove the wind vane. Check that the opto
element has a space of 1,0 to 1,5 mm to the ball all around when turning the
head 360°. Also check that the opto element do not touch any part of the head.
See also § 9.1.4
