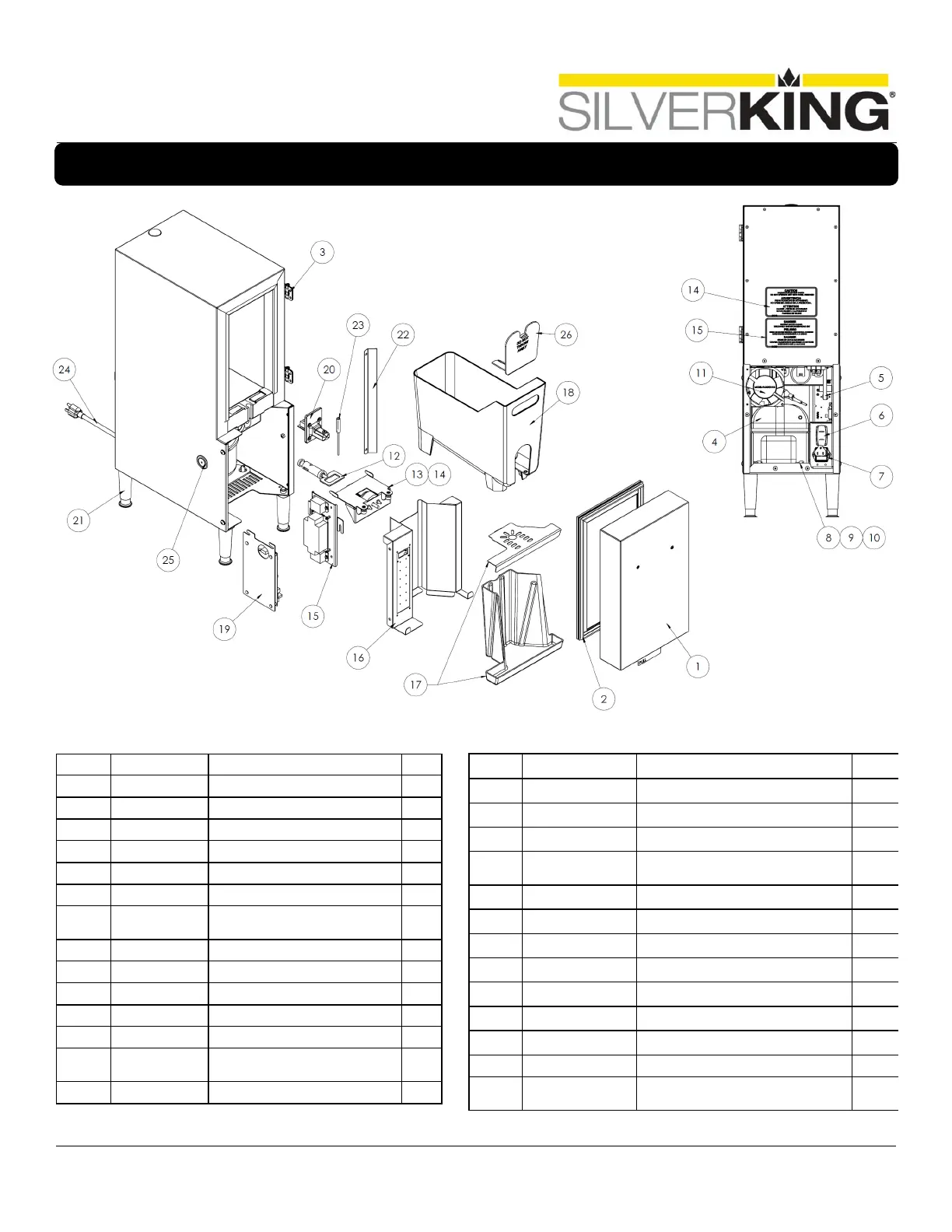

Silver King SK-2 - Parts List and Exploded View; Exploded View Diagram; Parts List Table

Cream Dispenser
Model SK-2
SK-2 Cream Dispenser
13
Parts List and Exploded View
Item
Part Number
Description
Qty
1 46874S ASSY DOOR SK-2 1
2 31126S GSKT DOOR 1
3
46944S
HINGE W/SCREWS & COVERS
2
4 10343-51 COMPR 115V/60HZ EM20HHR 1
5 30876 ASSY EXCHNGR HEAT 1
6 46946 SWITCH ROCKER 115V/230V 1
7 35826
MODULE POWER ENTRY 115V
(W/1 FUSE)
1
8 20481P GROMMET MTG COMPR LONG 4
9 98106P CLIP HAIRPIN 4
10 22401P WASHER MOUNT COMPR 4
11 43832 EXHAUST FAN 1
12 46994S ASSY VALVE PLUNGER SK-2 1
13 44097S ASSY SOLENOID RACK SK-2
(SPRING INCLUDED)
1
14 46999 SOLENOID RACK SPRING 1
Item Part Number Description Qty
15 46948S POWER SUPPLY ASSY 1
16 46940S ASSY APRON 1
17 366-142S ASSY TRAY, DRIP - CREAMER 1
18 366-151S
CONTAINER CREAM PLASTIC
SINGLE
1
19 46949S CONTROL BOARD ASSY 1
20 366-144S LOAD CELL ASSY 1
21 38493 KIT LEGS 4 IN 3/8-16 (PK OF 4) 1
22 24904S TUBE WELL GUARD 1
23 37364S PROBE TEMP SKBD3LS 1
24 33883 CORDSET 115V 1
25 37358S ERGONOMICS PLUG 1" DIA. 1
26
366-149S
BAG GUARD
1
27 46483 FUSE TSD-10A FOR PWR
RECPTACLE (NOT SHOWN)
