SilverBack B5402W - Page 7

7

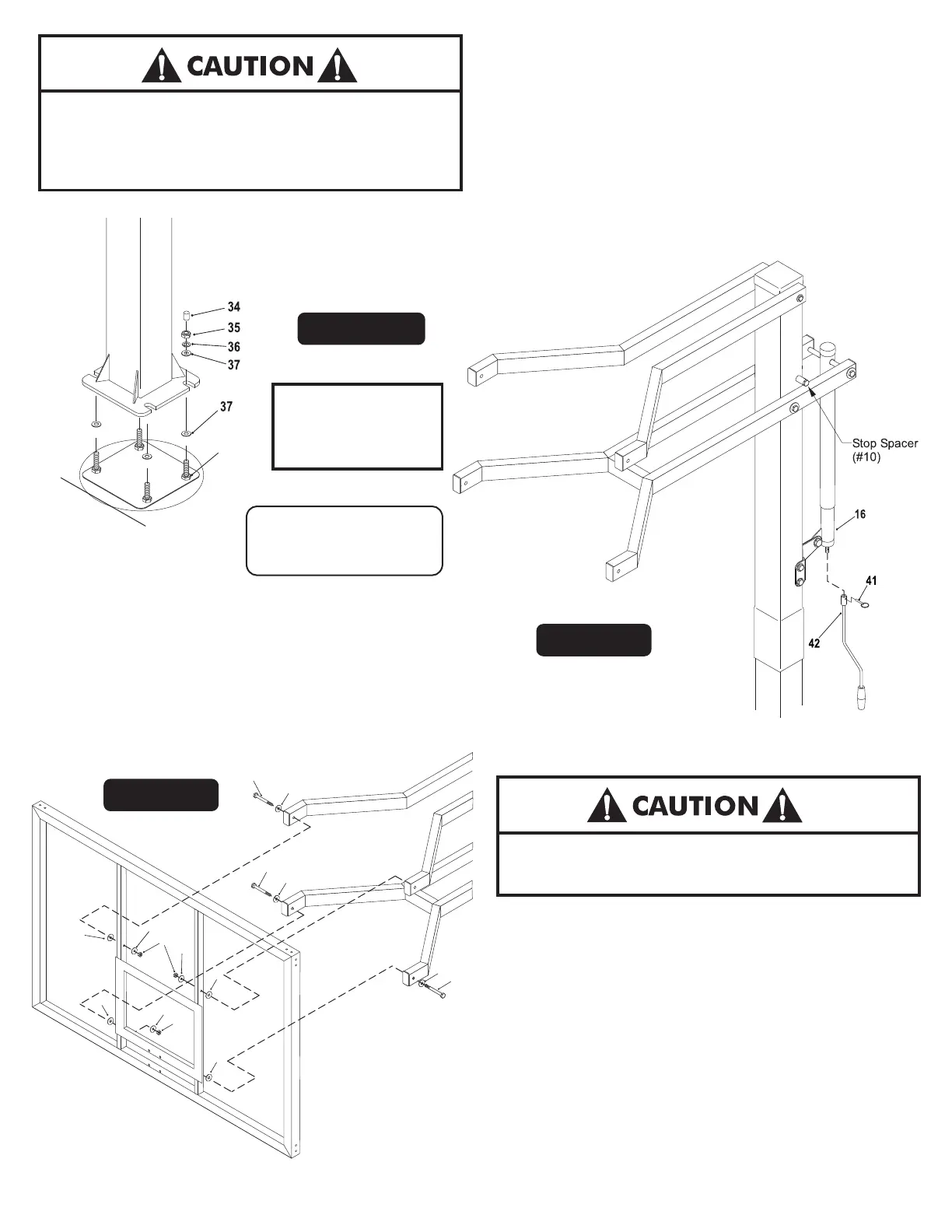

Figure 8
15. Slide Actuator Crank (#42) onto shaft on the bottom of
Actuator (#16). Line up hole in shaft with hole in Actuator
Crank and insert Pin (#41) to secure. See Figure 9.
16. To aid in the assembly of the backboard, lower the backboard,
by turning the Actuator Crank, until the lower arm makes
contact with Stop Spacer (#10).
Figure 9
BE SURE CONCRETE
HAS BEEN ALLOWED
TO CURE FOR AT
LEAST 3 DAYS
13. Locate hardware needed to mount pole to anchor bolts. You
will need, eight flat washers (#37), four lock washers (#36),
four hex nuts (#35) and four thread protectors (#34).
14.
PLACING THE POST ON THE ANCHOR SYSTEM
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
POLE WILL WANT TO LEAN WHILE ATTEMPTING TO
STAND IT UP ON ANCHOR BOLTS.
17. With at least three capable people, raise the backboard assembly
up and have the fourth attach Lower Board Arms to lower mounting
tubes on backboard using two bolts (#24), two plastic washers
(#5), four washers (#18) and two lock nuts (#4). See Figure 10.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.
18. Attach Upper Board Arms to upper mounting tubes on backboard
using two bolts (#24), two plastic washers (#5), four washers
(#18) and two lock nuts (#4). See Figure 10.
NOTE: DO NOT over tighten these bolts. This is a pivot point.
Snug is tight enough.
Figure 10
ATTACHING BA CKBOARD TO BO ARD ARMS
REQUIRES AT LEAST FOUR CAPABLE ADULTS.
A
L
Y
NG U
FA
E
P
I S
R
C
24
18
24
18
18
24
5
18
4
18
5
5
18
4
5
Note:
be used for leveling system.
See Step 14.
Bottom nuts #35 can
Note: Do not remove the nuts you installed in step 2 (pg. 4).
Put a flat washer (#37) on each anchor bolt. Lift post onto
anchor system and secure with one flatwasher (#37), one
lock washer (#36) and one hex nut (#35) for each anchor
bolt. Tighten Fasteners finger tight, leave loose enough to
level pole. Place a level on pole and adjust bottom nuts #35
until pole is level. Tighten top four hex nuts #35 tight.
Place a thread protector (#34) on each anchor bolt.
35
(Bottom Nut)
