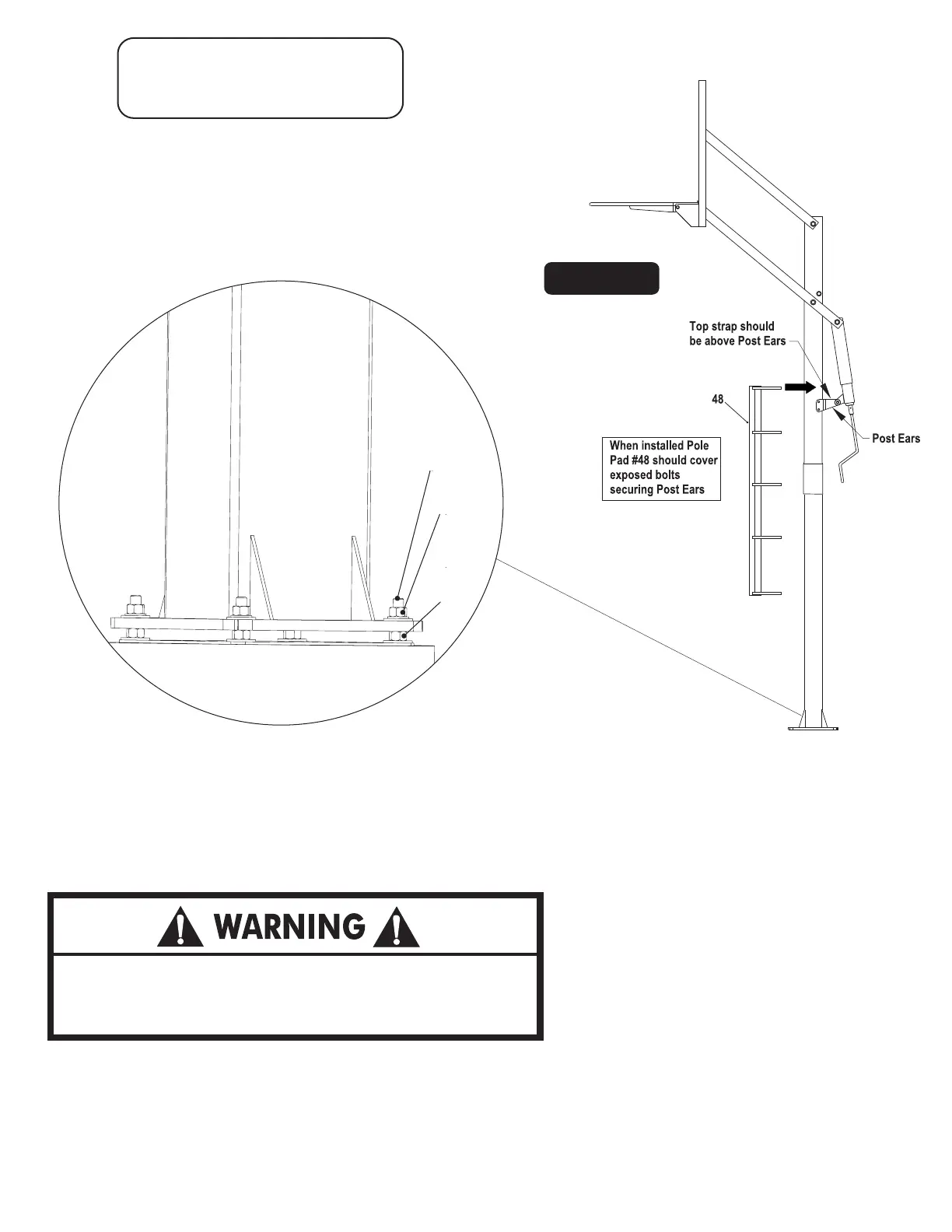

28. Secure Post Pad (#48) to front of pole by wrapping straps around
pole and sticking to velcro on opposite side of Pad. Top Post Pad
strap should be above Post Ears. See Figure 13.
Figure 13
Protruding bolts can cause serious injury. Never use this unit
without Pole Pad (#48) firmly in place and covering Post Ear
bolts. If Pole Pad is damaged, replace before using this unit.
Two adults are recommended for
this step, one to level and one to
adjust the bottom #35 nuts.
If further leveling is required loosen top #35 nuts but do
not loosen past the top of #39 “J” Bolt.
REMOVE NUTS #35 Place a level on pole and adjust
bottom nuts #35 with a 15/16” open end wrench until
pole is level. Tighten top #35 hex nuts. See Detail B.
DO NOT
.
27.
35
39
Detail B
35
(Bottom)
