SC4200:

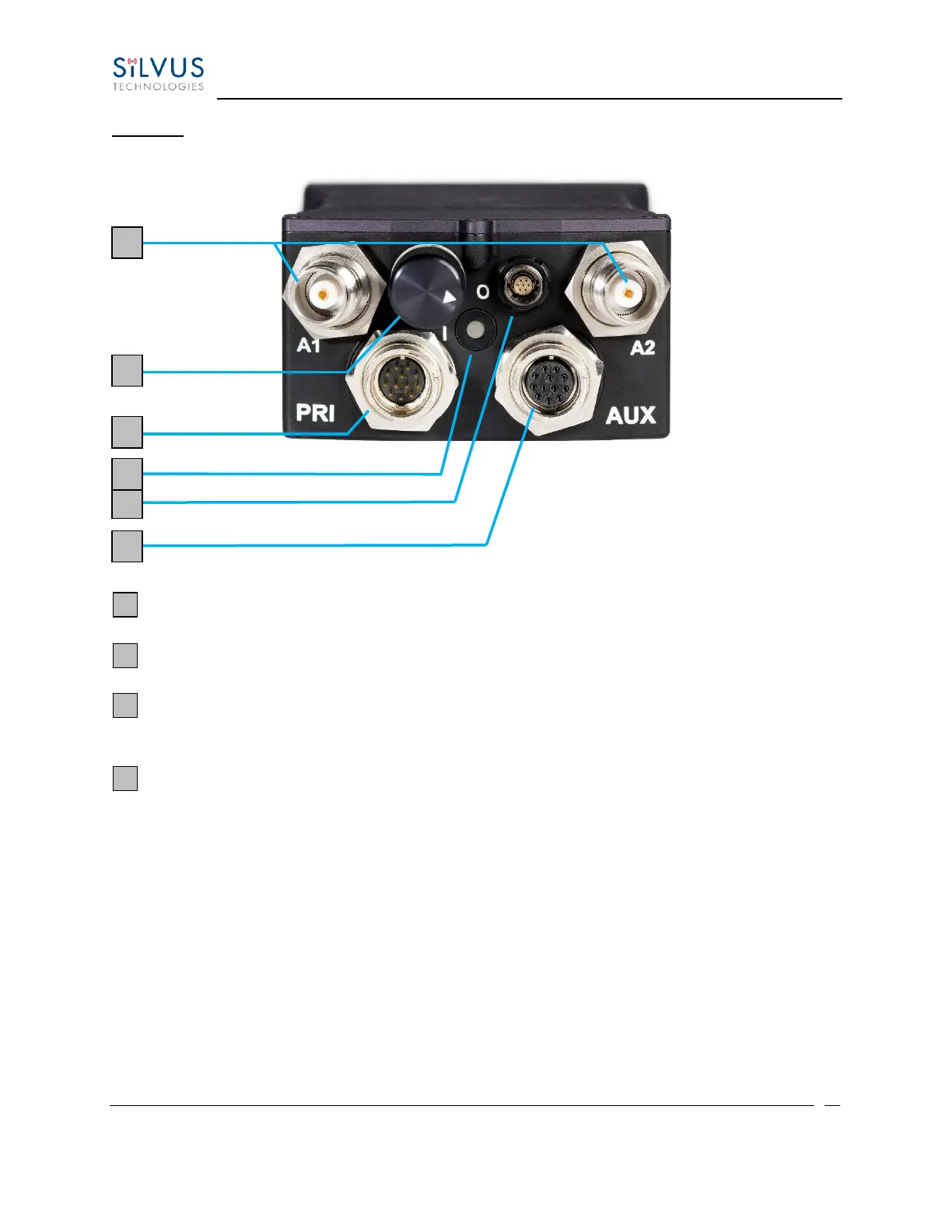

Figure 5 StreamCaster 4200 Ruggedized Enclosure
RF Channels 1-2 Connectors [TNC Female]
Power Switch [2-Position Rotating]
Power (EB Version Only, 9-20V), Ethernet, and Serial Port Connector [Hirose LF10WBRB-
12PD]
Bi-Color Status LED (See Section 12.1 for Troubleshooting Information)
• Red – Radio is in the process of booting up
• Flashing Green – Radio is fully booted but not wirelessly connected to any other
radio
• Green – Radio is wirelessly connected to at least one other radio
• Flashing Red – Spectrum Scan in Progress
• Flashing Red – Radio has recovered from a bad state and has reverted to factory
default settings.
• Rapid Flashing Red for 1 second – The battery is less than or equal to 20%. LED
will blink red rapidly for 1 second then go back to normal. This will repeat every
5 seconds.
