SC3822:

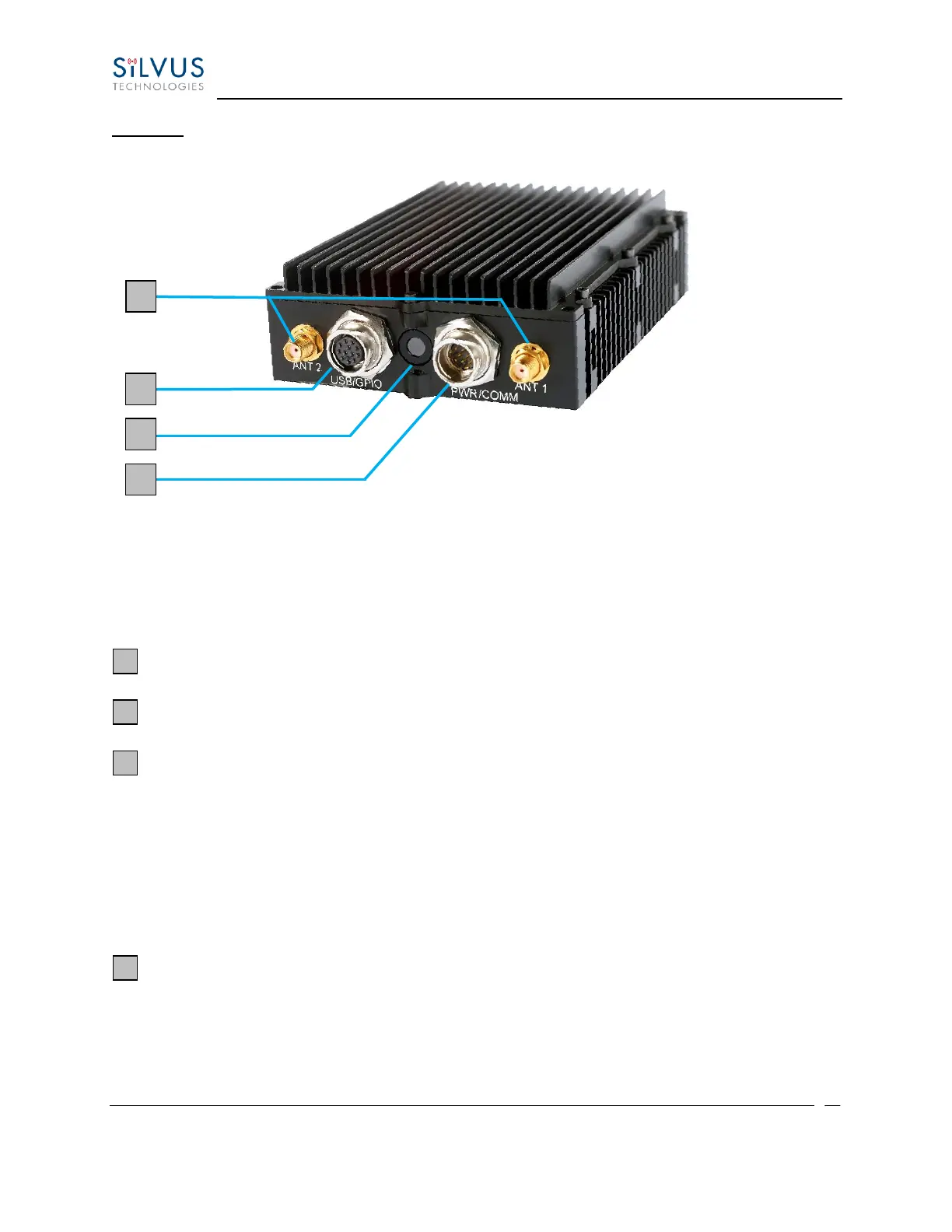

Figure 6 StreamCaster 3822 Ruggedized Enclosure

RF channels 1-2 Connectors [SMA Female]

USB/GPIO Connector [Hirose LF10WBRB-12SD]

Tri-Color Status LED (See Section 12.1 for Troubleshooting Information)

• Red – Radio is in the process of booting up

• Orange – Radio is fully booted but not wirelessly connected to any other radio

• Green – Radio is wirelessly connected to at least one other radio

• Flashing Red – Radio has recovered from a bad state and has reverted to factory

default settings.

Power (9-32 VDC), Ethernet, and Serial Port connector [Hirose LF10WBRB-12PD]

Main Page

Table of Contents4
General Safety Information12
Health & Safety12
Table 1 Safe Working Distances13
Figure 1 Product Symbols with Definition14
Maximum RF Power Density Limits15
Introduction16
Streamcaster Network16
Streamcaster Hardware Overview17
Hardware Interfaces17
Sc4400E17
Figure 2 Streamcaster 4400E Ruggedized Enclosure17
Sc4200E19
Figure 3 Streamcaster 4200E Ruggedized Enclosure19
Sc440021
Sc420023
Sc382225
Sc3500/Sc380026
Figure 4 Streamcaster 3500/3800 Ruggedized Enclosure26
SC3500/SC3800 with EXT Connector (PA Faceplate Option)27
Figure 5 Streamcaster 3500/3800 Ruggedized Enclosure27
Connector Pinouts28
SC4400E Pinouts28
Figure 6 SC4400E Power (Optional)/Serial/Ethernet Pinout Diagram (Cable Side)28
Table 2 SC4400E Power/Ethernet/Serial Connector Pinout28
Table 3 SC4400E Serial and GPS Pinout29
Table 4 SC4400E USB/GPIO Connector Pinout (USB1 Is USB 2.0 OTG, USB2 Is USB 2.0 Host Mode Only)30
Figure 7 SC4400E PTT Pinout Diagram (Cable Side)31
Table 5 SC4400E PTT Connector Pinout31
SC4200E Pinouts32
Figure 8 SC4200E Power (Optional)/Serial/Ethernet Pinout Diagram (Cable Side)32
Table 6 SC4200E Power/Ethernet/Serial Connector Pinout32
Table 7 SC4200E Serial and GPS Pinout33
Table 8 SC4200E USB/GPIO Connector Pinout (USB1 Is USB 2.0 OTG, USB2 Is USB 2.0 Host Mode Only)34
Figure 9 SC4200E PTT Pinout Diagram (Cable Side)35
Table 9 SC4200E PTT Connector Pinout35
SC4400 Pinouts36
Table 10 SC4400 Power/Ethernet/Serial Connector Pinout36
Table 11 SC4400 Serial and GPS Pinout36
Figure 10 SC4400 Power (Optional)/Serial/Ethernet Pinout Diagram (Cable Side)37
Figure 11 SC4400 aux Pinout Diagram (Cable Side)38
Table 12 SC4400 USB/GPIO Connector Pinout (USB1 Is USB 2.0 OTG, USB2 Is USB 2.0 Host Mode Only)38
Figure 12 SC4400 PTT Pinout Diagram (Cable Side)39
Table 13 SC4400 PTT Connector Pinout39
SC4200 Pinouts40
Table 14 SC4200 Power/Ethernet/Serial Connector Pinout40
Table 15 SC4200 Serial and GPS Pinout40
Figure 13 SC4200 Power (Optional)/Serial/Ethernet Pinout Diagram (Cable Side)41
Figure 14 SC4200 aux Pinout Diagram (Cable Side)42
Table 16 SC4200 USB/GPIO Connector Pinout (USB1 Is USB 2.0 OTG, USB2 Is USB 2.0 Host Mode Only)42
Figure 15 SC4200 PTT Pinout Diagram (Cable Side)43
Table 17 SC4200 PTT Connector Pinout43
SC3822 Pinouts44
Table 18 SC3822 Power/Ethernet/Serial Connector Pinout44
Table 19 SC3822 Serial and GPS Pinout44
Figure 16 SC3822 Power/Serial/Ethernet Pinout Diagram (Cable Side)45
Figure 17 SC3822 USB/GPIO Pinout Diagram (Cable Side)46
Table 20 SC3822 USB/GPIO Connector Pinout46
Table 21 SC3822 Extension Port Pinout47
SC3500/SC3800 Pinouts48
Table 22 SC3500/SC3800 Power Connector Pinout48
Table 23 SC3500/SC3800 Serial and GPS Pinout48
Figure 18 SC3500/SC3800 Power/Serial Pinout Diagram (Cable Side) for GPS (Top) and49
Figure 19 SC3500/SC3800 Ethernet Pinout Diagram (Cable Side)50
Table 24 SC3500/SC3800 Ethernet Connector Pinout50
Figure 20 SC3500/SC3800 EXT Pinout Diagram (Cable Side)51
Table 25 SC3500/SC3800 EXT Connector Pinout51
Mechanical and Operating Specifications52
SC4400E Enclosure Mechanical Drawing59
Figure 21 SC4400E Mechanical Drawing (Top) and Mounting Pattern (Bottom)59
SC4200E Enclosure Mechanical Drawing60
Figure 22 SC4200E Mechanical Drawing (Top) and Mounting Pattern (Bottom)60
SC4400 Enclosure Mechanical Drawing61
Figure 23 SC4400 Mechanical Drawing (Top) and Mounting Pattern (Bottom)61
SC4200 Enclosure Mechanical Drawing62
Figure 24 SC4200 Mechanical Drawing (Top) and Mounting Pattern (Bottom)62
SC3822 Enclosure Mechanical Drawing63
Figure 25 SC3822 Mechanical Drawing (Top) and Mounting Pattern (Bottom)63
SC3500/SC3800 Phase II Enclosure Mounting Pattern64
Figure 26 SC3500/SC3800 Phase II Enclosure Mounting Pattern for Back of Enclosure (Top) and Bottom64
SC3500/ SC3800 Phase III Enclosure Mounting Pattern65
Figure 27 SC3500/SC3800 Phase III Enclosure Mounting Pattern for Back of Enclosure (Top) and Bottom65
SC4400E Specifications66
SC4200E Specifications67
SC4400 Specifications69
SC4200 Specifications70
SC3822 Specifications72
SC3500 Specifications73
SC3800 Specifications74
Web Interface75
Getting Started75
Basic Configuration75
Figure 28 Basic Configuration Page75
Advanced Configuration77
Figure 29 Advanced Configuration Page77
Table 26 MCS Vs. Sensitivity Chart (5Mhz Bandwidth)79
Table 27 MCS Vs. Sensitivity Chart (10Mhz Bandwidth)80
Table 28 MCS Vs. Sensitivity Chart (20Mhz Bandwidth)80
LAN/WIFI Configuration81
Figure 30 LAN/WIFI Configuration Page81
Multicast85
Figure 31 Multicast Configuration Page85
Quality of Service (Qos) #Qos87
Figure 32 Quality of Service (Qos) Configuration Page87
Serial/Usb Setup91
Figure 33 Serial/Usb Setup Configuration Page91
Node Diagnostics93
Figure 34 Node Diagnostics Configuration Page93
BDA Support95
Figure 35 BDA (Bi-Directional Amplifier) Support Configuration Page95
Build Information96
Figure 36 Build Information96
Security97
Figure 37 Security (Encryption)97
Figure 38 Security (Upgrade)98
Figure 39 Security (Upgrade Network)99
Figure 40 Security (License)99
Figure 41 Security (Factory Reset)100
Figure 42 Security (Setting Profile)101
Figure 43 (Key Management)102
Figure 44 (Chrome Browser Warning)103
PTT (SC4400/SC4200 Only)104
Figure 45 PTT (Push-To-Talk)104
Spectrum Scan106
Figure 46 Spectrum Scan Results106
Figure 47 Spectrum Scan Settings107
Figure 48 Zero Span Settings108
Figure 49 Zero Span Results109
MPS (Multi-Position Switch)110
Figure 50 Multi-Position Switch110
Admin Settings111
Figure 51 Admin Settings111
Figure 52 Login111
Figure 53 Reset Password112
Streamscape Network Manager113
Network Topology113
Figure 54 Silvus Streamscapenetwork Manager113
Figure 55 Example Network Topology114
Table 29 Color Coding for Links and Nodes114
Figure 56 Routing Path115
Figure 57 Custom Node Naming116
Figure 58 Traffic Information116
Figure 59 Individual Node Characteristics119
Figure 60 Link Characteristics120
Figure 61 Iperf Function Within GUI121
Figure 62 Table View122
Figure 63 Table View (Settings)123
Network-Wide Setup124
Figure 64 Network-Wide Setup124
Per-Node Setup125
Figure 65 Per-Node Setup125
Map Overlay126
Figure 66 Map Overlay126
Figure 67 Google Maps127
Figure 68 Offline Map Image128
Figure 69 Placing Nodes on the Map130
Figure 70 Cursor on Target Settings131
FIPS Mode132
Enable FIPS Mode132
Potential User Errors132
List of Security Parameters133
Wired Backbone134
LAN Backbone134
Implementation134
Use Case134
WAN Backbone with Roaming135
Figure 71 LAN Backbone Example135
Implementation136
Use Case136
Figure 72 WAN Backbone Example137
Custom Frequency Plan138
Accessing and Installing CFP138
Figure 73 Custom Frequency Page138
Streaming Response141
RSSI and Noise Floor Reporting142
Table 30 RSSI Reporting Format142
Table 31 Sample RSSI Report143
Temperature Reporting145
Table 32 Temperature Reporting Format145
Voltage Reporting146
Table 33 Voltage Reporting Format146
Setting up an Iperf Test147
Required Equipment147
Running Iperf Test147
Precautions and Recommendations148
Saving the Radio Configuration148
Troubleshooting149
LED Issues149
Intermittent Link149
FCC Notice150
FCC Identifier: N2S-SC3500150
FCC Identifier: N2S-SC3822150
FCC Identifier: N2S-SC42-245150
FCC Identifier: N2S-SC44-245151
FCC Identifier: N2S-SC42-520151
FCC Identifier: N2S-SC44-520152
FCC Identifier: N2S-SC42E-245152
Notes152
Notes Regarding CE Mark (SC4200-206-EB and SC4400-206-SBST Models Only)153
Table 34 Additional Restrictions on Band C2155
ISED Canada Notice157
IC: 24980-Sc42E245157
IC Statement: English157
IC Statement: French158
