SC4400 AUX Connector Pinout

Enclosure AUX

(LF10WBRB-12SD)

Signal

USB1_GND

USB1_D-

USB1_VBUS

USB2_VBUS

GPIO1 (PA Enable 3.3V)

USB2_D+

USB2_D-

RESERVED (Do Not Connect)

GND

USB1_Sense

USB1_D+

USB2_GND

Table 12 SC4400 USB/GPIO Connector Pinout (USB1 is USB 2.0 OTG, USB2 is USB 2.0 Host Mode Only)

SC4400

USB / GPIO

Serial Ground

Pink

Orange

Brown

Red

Yellow

Black

White

Green

Blue

Purple

B/W striped

Grey

USB1_GND

USB1_D-

USB1_VBUS

Ext PA Control

USB2_D+

USB2_GND

USB2_D-

Reserved (DNC)

GND

USB1_D+

USB2_VBUS

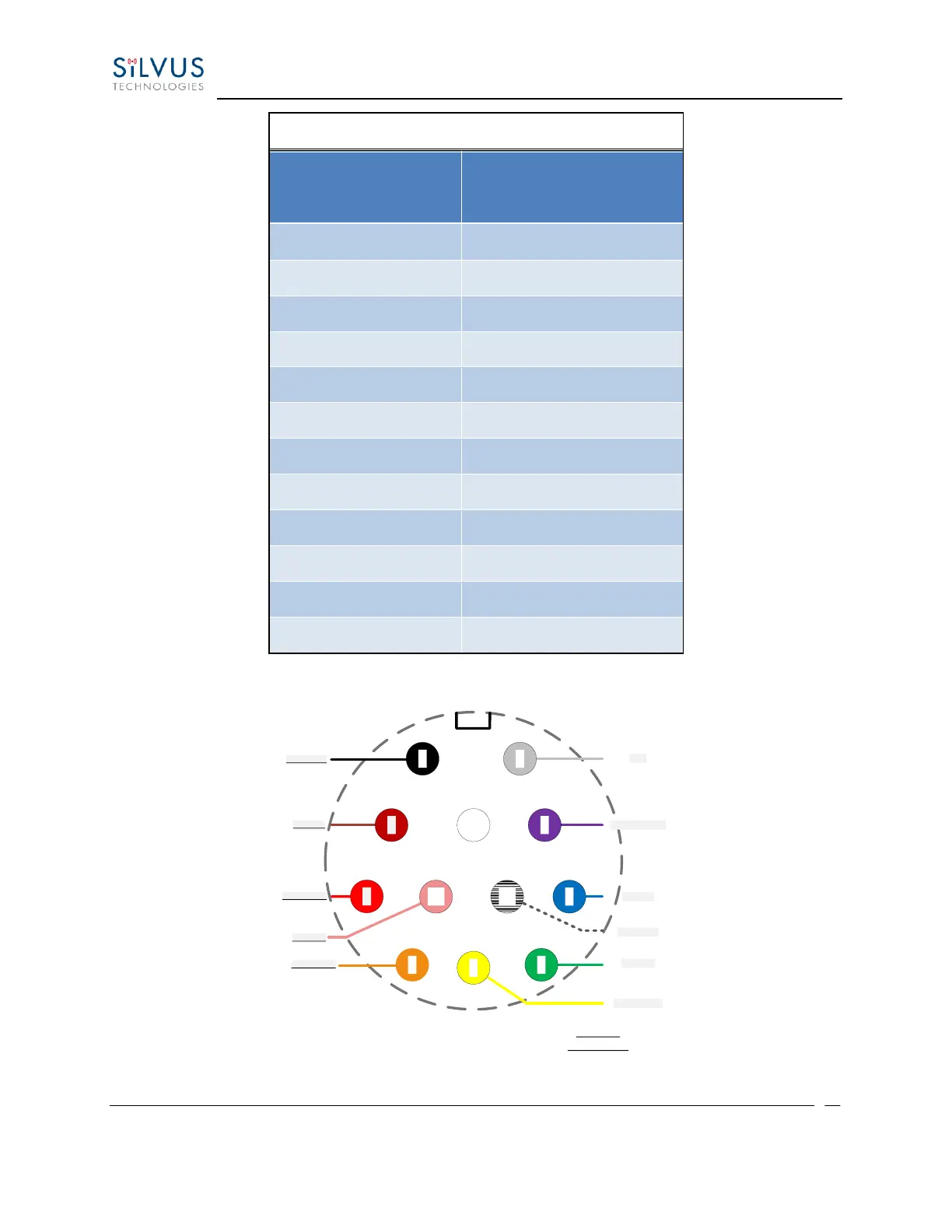

Figure 11 SC4400 AUX Pinout Diagram (Cable Side)
