SC3500/SC3800:
Environmental
Standard
Extended Temperature
• Operating Temp.
-40° - +55° C
-40° - +65° C
• IP Rating
IP-67 (Dust / Immersion in water up to 1m)*
(Ingress Protection)
*Must have all connectors mated and use IP67 or better cables/antennas
Mechanical – Chassis
Standard
Extended Temperature
• Dimensions
3.25” x 5.75” x 4”
H x L x W
4.5” x 5.75” x 4”
H x L x W
• Weight
3.7 lbs. (1.68 kg/59.2 oz)
4 lbs. (1.81 kg/64 oz)
• Color
c. FED-STD-595B-34094 (green 383)
d. Black anodized
e. CARC (Chemical Agent Resistant Coating)
• Mounting
4-hole mounting patterns (non-penetrating)
located on both rear and bottom sides
Connectors
• RF
TNC (f) (4 each)
• Data / Control
Ethernet cable, Mighty-Mouse 801 Heavy-Duty, Double-Start 10
conductor (f)
• Power
Mighty-Mouse 801 Heavy-Duty, Double-Start 10 conductor (m)
(RS232 / GPS Support)
Controls and Indicators
• Power
On / Off Toggle with detent
• Status Indicator
Tri-Color LED
Power Requirements
• Voltage
9 – 20 VDC
• Consumption
12W – 22.5W (Duty Cycle and Frequency Dependent)
24.5 W – 80% Tx Duty Cycle
Mechanical – OEM Board Stack
• Dimensions
1.9” x 5.25” x 2.9” H x L x W

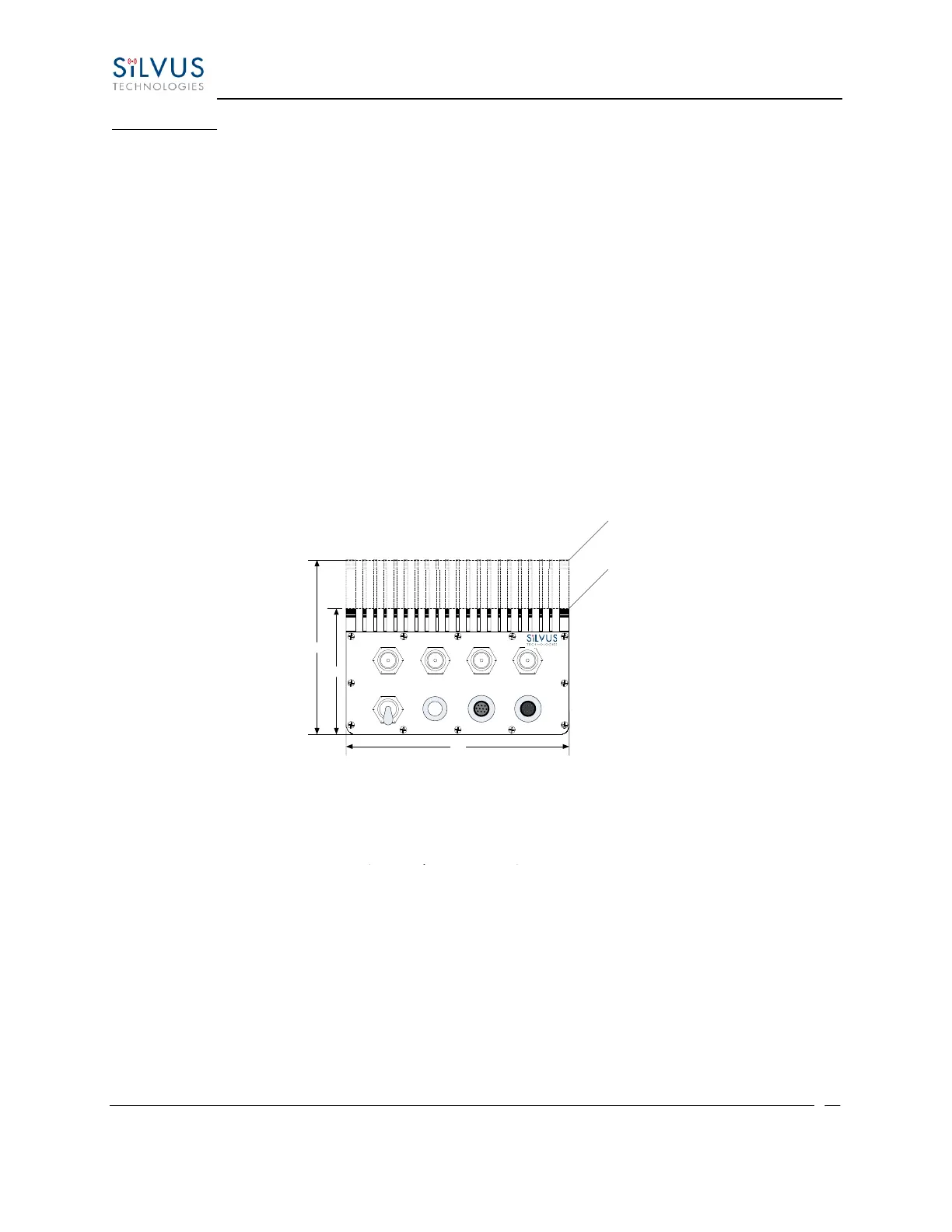

5.75
4.50
3.25
Extended Temperature Variant
Standard Temperature Variant
ANT1 ANT4ANT3ANT2
STATUS PWROFF ETH
ON
