SIM SIM-120 - Detection Pattern

4

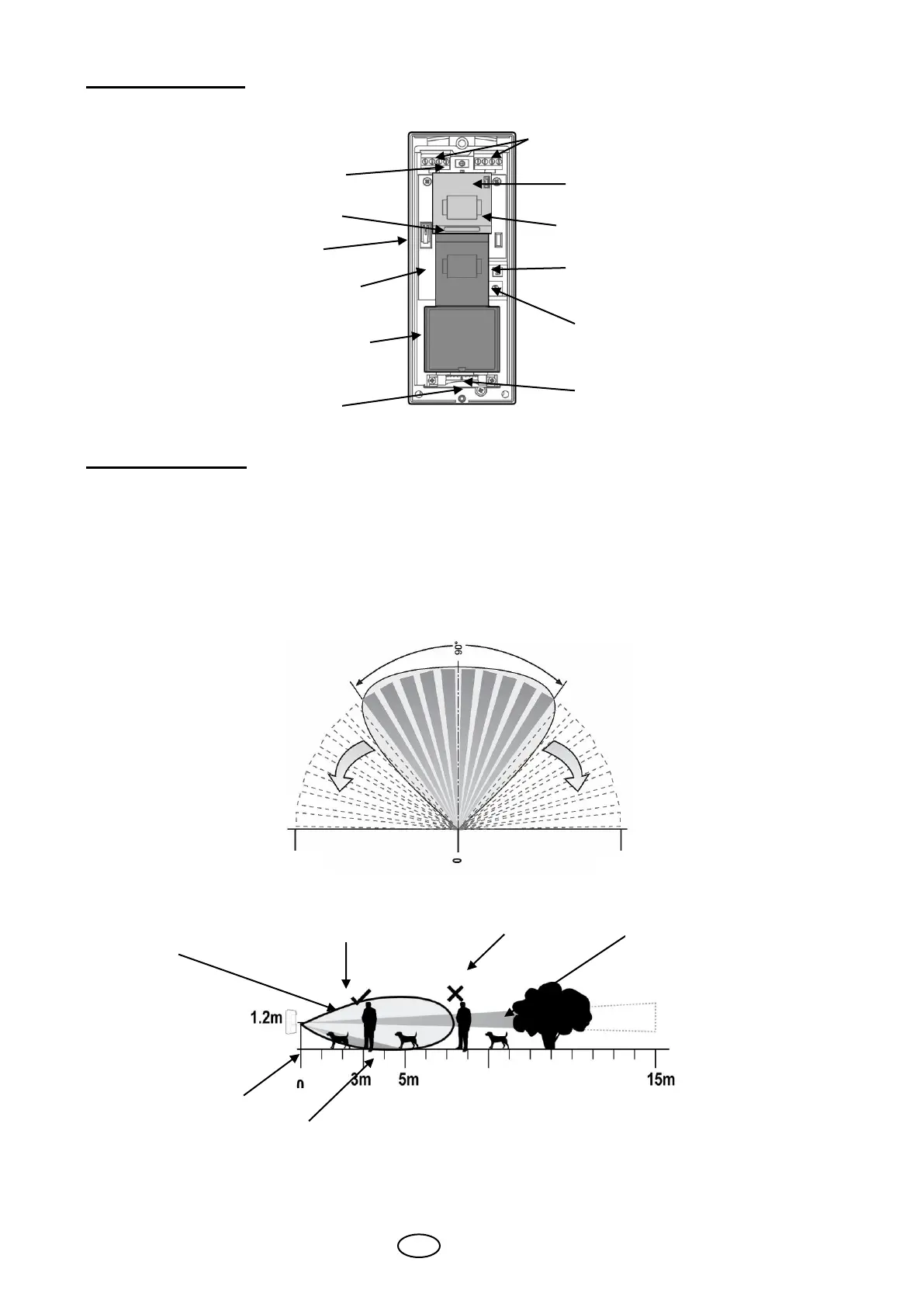

Internal elements:
4 Detection Pattern:
The SIM-120 has a 90° top view PIR and MW detection pattern with over 15m detection distance
(when installed at 1.2m above the ground surface).
The SIM-120 has an internal rotating housing (which includes the 2 PIR elements and the MW)
that can be adjusted horizontally, so its 90° coverage may vary between 0° and 180°.
Upper PIR element
Lower PIR element
Microwave element
LED
Terminal Connection Blocks
LED and Buzzer dipswitches
Sensitivity setting
Direction Angle Indicator
Range setting handle
Range Indication
Tamper switch
Bracket locking screw
Detection area
Upper PIR element detection pattern
Adjustable between 3m to 15m
Lower PIR element detection pattern
Fixed to 15m range
Microwave detection pattern
Detection
No Detection
No pet detection in
all protected area
15m
15m
