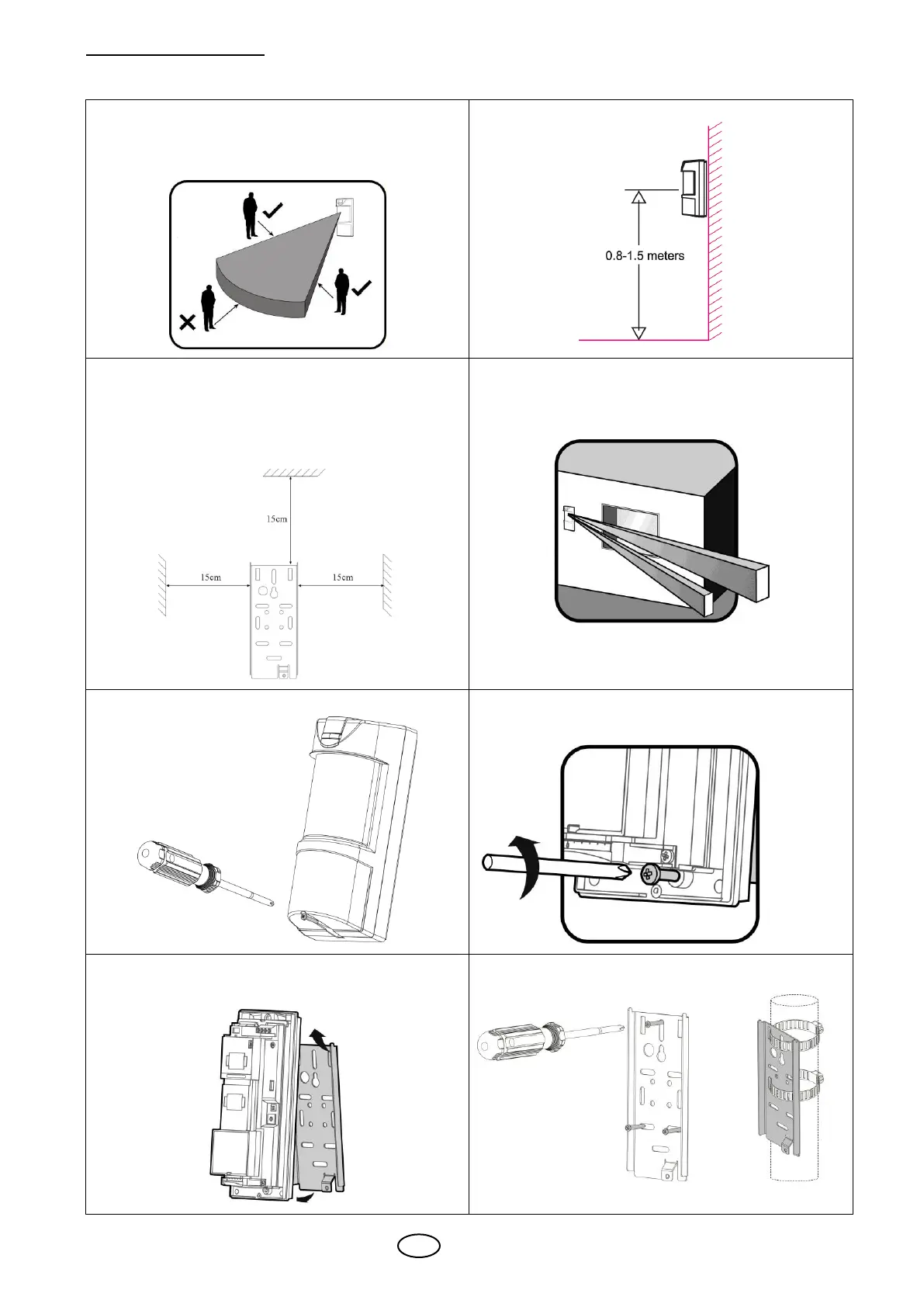

1. Install the detector in such manner that the intruder
is most likely to cross the detection area from side to
side.
2. The detector is to be installed at height of 2.6 ft
(0.8m) to 4.9 ft (1.5m)
3. Make sure to attach the metal bracket to a leveled
straight and firm wall, leaving 6 inches (15cm) from
the top and 6 inches (15cm) from both sides, for easy
installation and maintenance.
4. Rotating the detection beam may be required for
guarding a side window opening while the detector is
installed facing another direction.
5. Open the detector unwinding the bottom screw.
6. Release the rear metal bracket by unwinding
internal bottom screw.
7. Release the detector body from the metal bracket
by polling front and up.
8. Attach the rear bracket to the wall or a pole using
mounting screws or metal bands.
