SFX-10 Video Mixer Controls and Functions
7

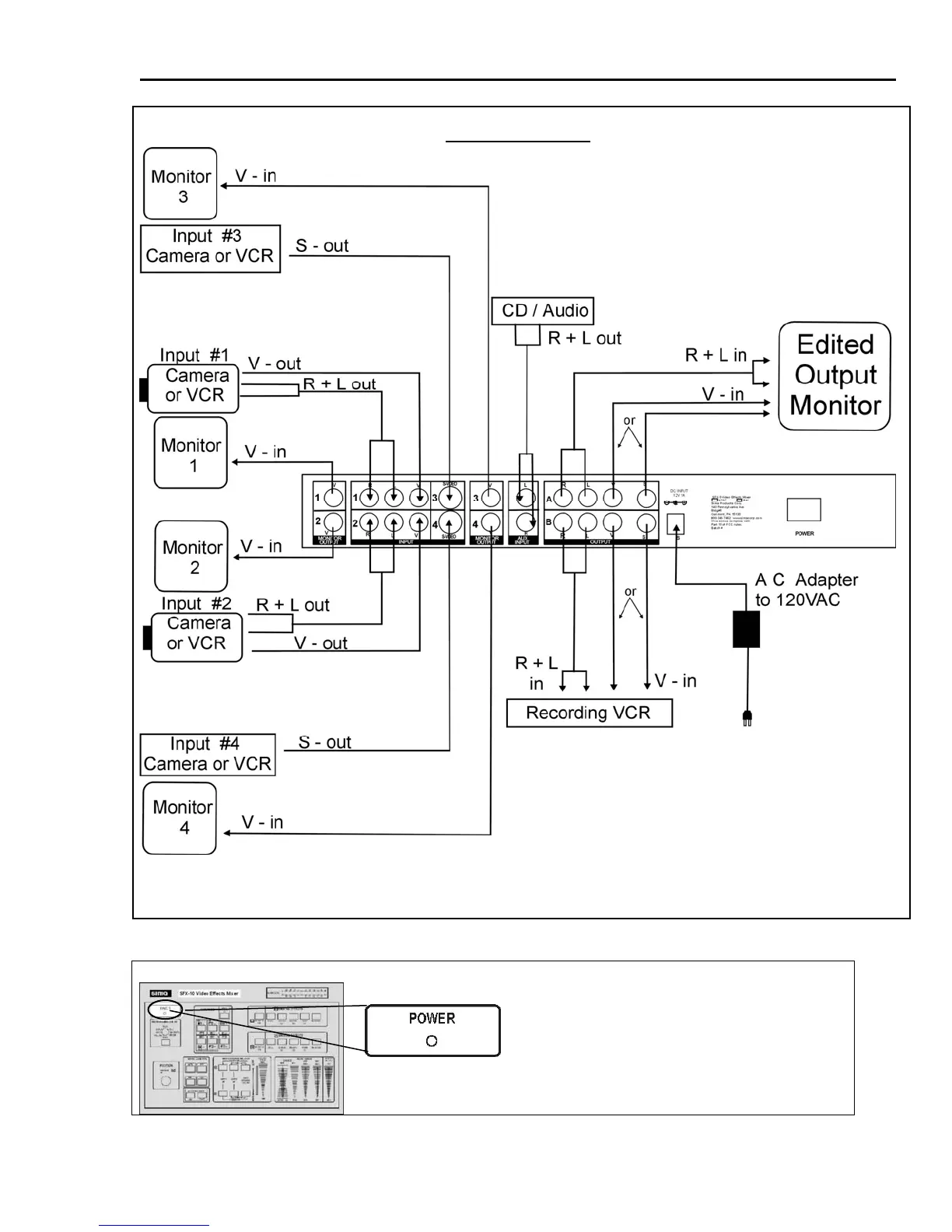

Typical Hook-up
Section 1 – Power Indicator
POWER INDICATOR – The POWER
INDICATOR light shows at a glance that
power to the SFX-10 is turned on. The
power switch is located on the back panel.
(See rear panel diagram on page 6.)
