Sime Format 25 User Manual

1.1 INTRODUCTION
The “FORMAT” wall hung boilers with
D.H.W. storage tank allow for a multiple
number of requests to be met thanks to the
abundance of available water which the
capacious tank unit makes possible.
They comply with the European directives
90/396/EEC, 89/336/EEC, 73/23/EEC,
92/42/EEC and the European norms EN
483 - EN 625.
They may be fuelled by natural gas (metha-
ne) and butane gas (G30) or propane (G31).
In this manual you will find the instructions
relative to the following boiler models:
– “FORMAT 25/60 OF”
with electronic ignition and modulation,
open chamber, natural draught.
– “FORMAT 25/60 BF - 30/60 BF”
with electronic ignition and modulation,
room sealed, forced draught.
Follow the instructions given in this manual
for the correct installation and perfect func-
tioning of the appliance.
75
IT
ES
PT
GB
1 DESCRIPTION OF THE BOILER

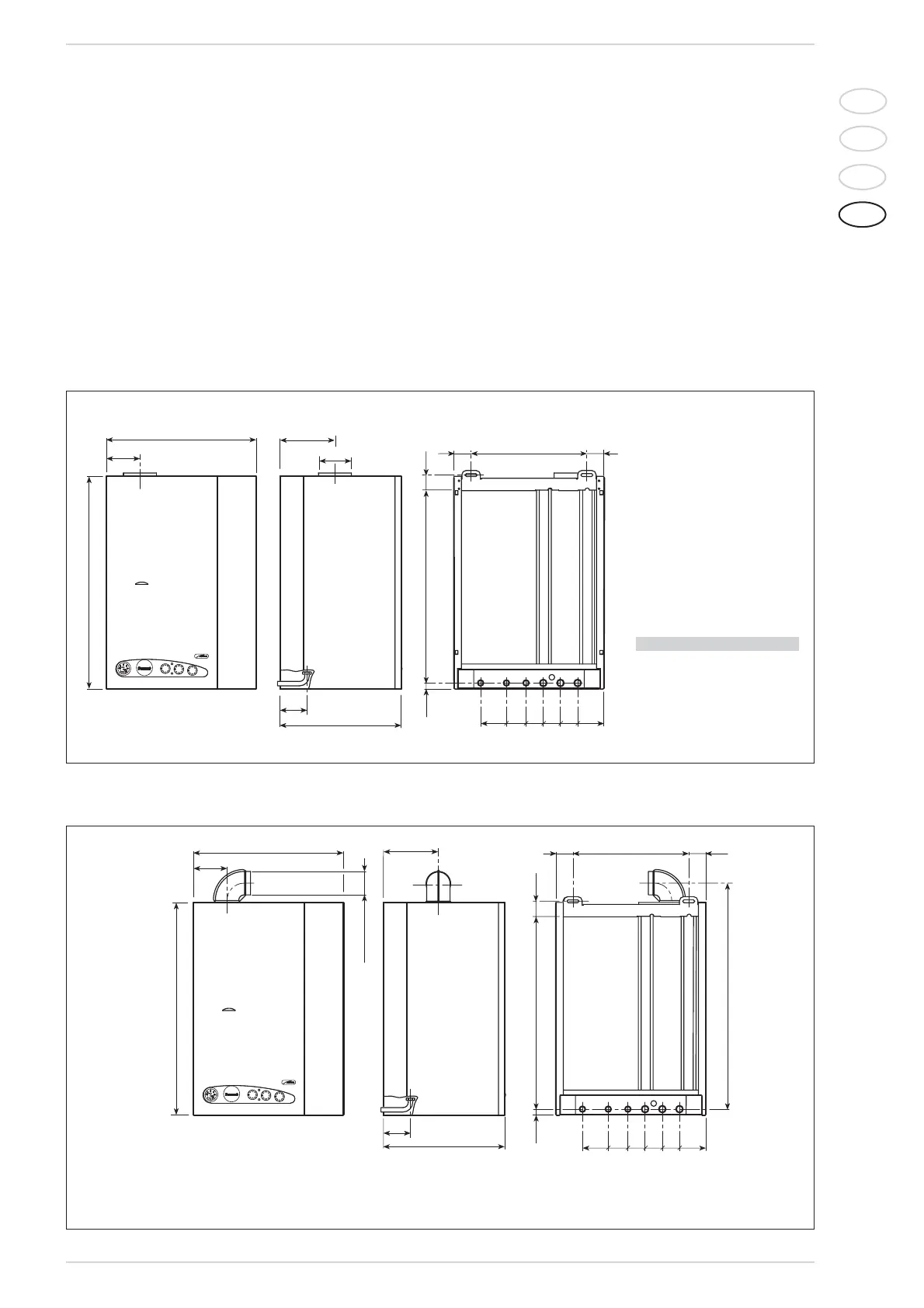

1.2 DIMENSIONS
1.2.1 “25/60 OF” model
600
13 5
D
865
225
110
495
782
460
=
=
25
12 5
80 70 70 70 107
EUCMRG
63
Fig. 1
600
105
865
235
110
495
782
460
=
=
25
12 5 80 7 0 7 0 7 0 107
E
U
CMRG
ø100/60
910
63
Fig. 1/a
1.2.2 “25/60 BF - 30/60 BF” models
CONNECTIONS
R C.H. return 3/4”
M C.H. flow 3/4”
G Gas connection 3/4”
E D.H.W. inlet 1/2”
U D.H.W. outlet 1/2”
C Re-circulation 1/2”
CONNECTIONS
R C.H. return 3/4”
M C.H. flow 3/4”
G Gas connection 3/4”
E D.H.W. inlet 1/2”
U D.H.W. outlet 1/2”
C Re-circulation 1/2”
25/60 OF
D ø mm 130
