Sime Format 25 User Manual

105
120
150
ø80
4
3
1
2
IT
ES
PT
GB
82

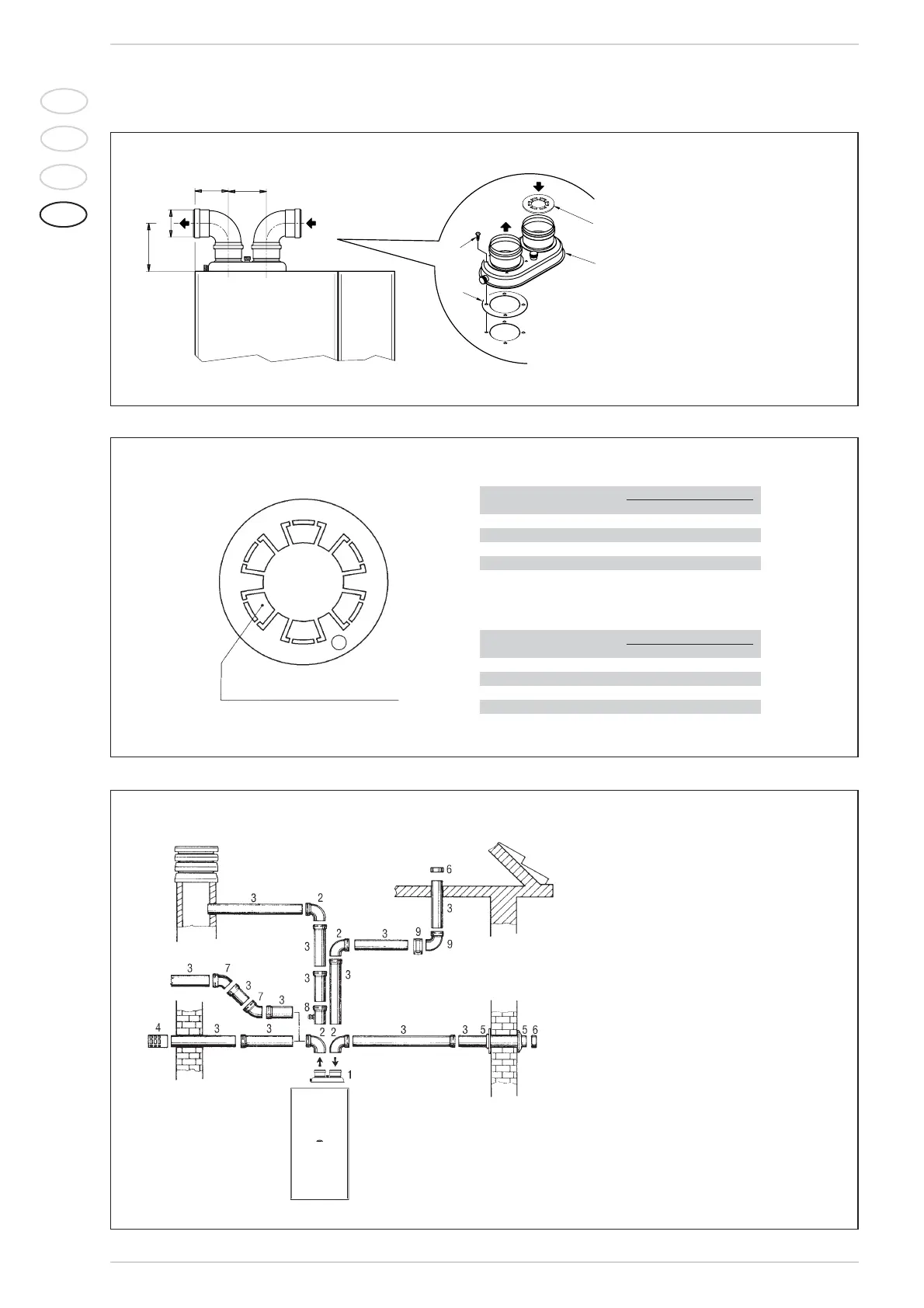

Fig. 14
KEY
1 Sponge-rubber gasket ø125/95
2 Fixing screw
3 Air-smokes flow splitting unit
with take-off point
4 Sectors of diaphragm ø 38
Fig. 15
Fig. 16
KEY
1 Air-smokes flow plitting unit
with take-off point code 8093000
2a 90° elbow MF code 8077410 (6 pz.)
2b Isolated 90° elbow MF code 8077408
3a Extension L. 1000 code 8077309 (6 pz.)
3b Isolated extension L. 1000 code 8077306
3c Extension L. 500 code 8077308 (6 pz.)
4 Outlet terminal code 8089501
5 Int.-est. ring kit code 8091500
6 Intake terminal code 8089500
7 45° elbow MF code 8077411 (6 pz.)
8 Condensation outlet L. 135 code 8092800
9 Locking junction code 8092700 (5 pz.)
Sectors of diaphragm Total head loss
to remove mm H
2OPa
0 0 ÷ 2 0 ÷ 19,6
2 2 ÷ 3 19,6 ÷ 29,4
4 3 ÷ 4 29,4 ÷ 39,2
6 4 ÷ 5 39,2 ÷ 49,0
Remove diaphragm 5 ÷ 8 49,0 ÷ 78,4
Sectors of diaphragm Total head loss
to remove mm H
2OPa
4 0 ÷ 4 0 ÷ 39,2
5 4 ÷ 5 39,2 ÷ 49,0
6 5 ÷ 6 49,0 ÷ 58,8
Remove diaphragm 6 ÷ 9 58,8 ÷ 88,2
“25/60” version
“30/60” version
SECTOR OF DIAPHRAGM
