3 CHARACTERISTICS

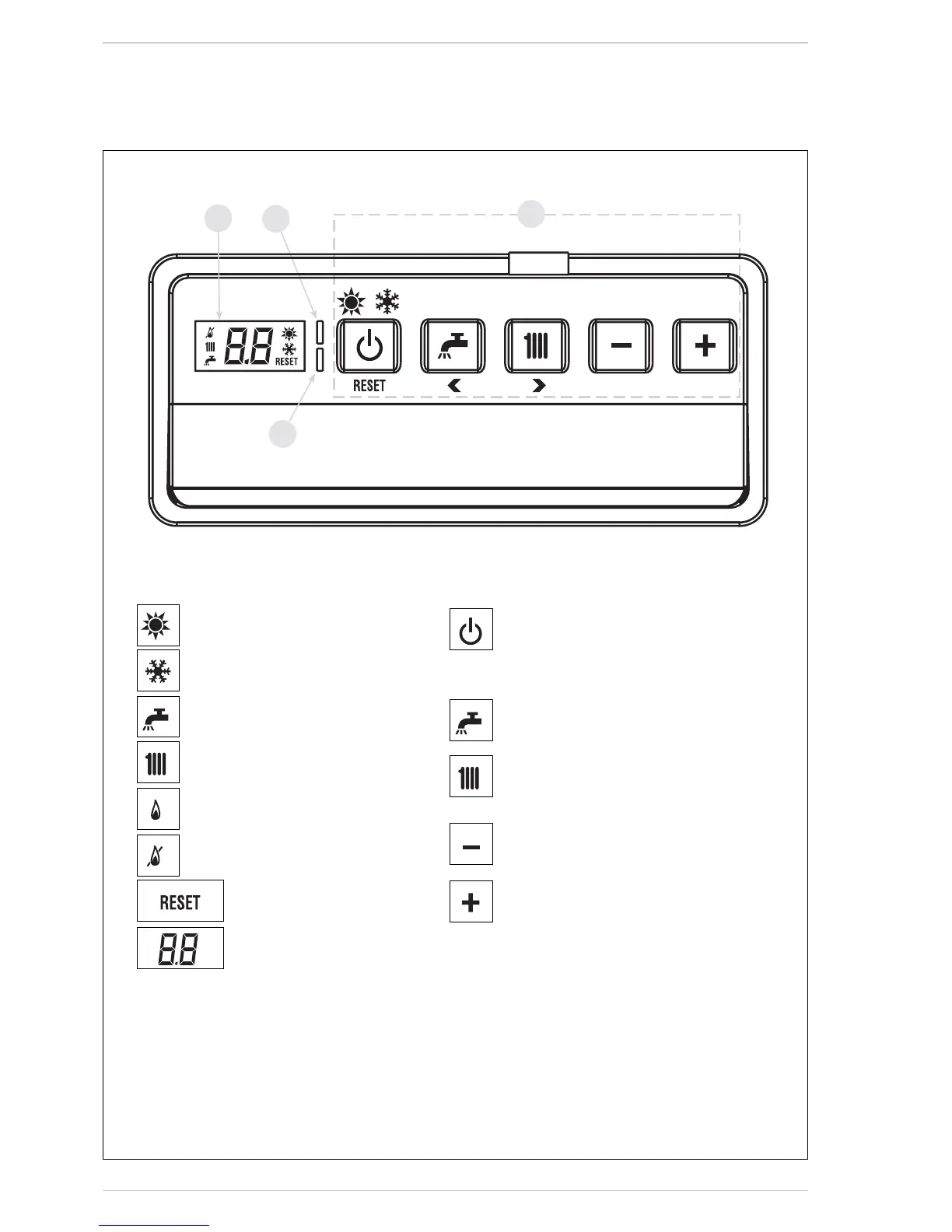

3.1 CONTROL PANEL (fig. 12)
1
2
3
4
1 - DESCRIPTION OF DISPLAY ICONS
SUMMER MODE ICON
WINTER MODE ICON
D.H.W. MODE ICON
HEATING MODE ICON
BURNER LIT ICON
LOCKOUT DUE TO NO
IGNITION/FLAME DETECTION
RESET REQUIRED
MAIN DIGITS
Fig. 12
2 - DESCRIPTION OF CONTROLS
OPERATING MODE/RESET
By pressing the key in succession, pass to the sum-
mer and winter function (stand-by function if perma-
ne on the key more than two second).
RESET is only available if a resettable anomaly is
signalled
D.H.W. SET
Press the key to display the D.H.W. temperature
value set
HEATING SET
Press the key to display the heating temperature
value set (value not realtive to the remote control)
DECREASE
Pressing this key decreases the value set
INCREASE
Pressing this key increases the value set
3 - LED GREEN
ON = Indicates the presence of electrical voltage.
It switches of momentarily every time the keys are pressed.
It can be disabled by setting PAR 3 = 0.
4 - LED RED
OFF = Normal operation
ON = Boiler anomaly signalled
Flashing when the control panel buttons are pressed inside the
PARAMETERS SECTION.
21
