Sime FORMAT DGT HE Installation And Servicing Instructions

60
100
290
33
169
39
50
29,5
10
70
70
70 70
=
=
794
12 2
450
214
95
ø 60/100
750
RMG E U
G
S3
∼25
TABLE 2 - Minimum clearances
For servicing
ABOVE THE APPLIANCE CASING 300 mm
AT THE R.H.S. 15 m m
AT THE L.H.S. 15 m m
BELOW THE APPLIANCE CASING 200 mm
IN FRONT OF THE APPLIANCE 500 mm
TABLE 1 - Connections
R C.H. return 22 mm Compression
M C.H. flow 22 mm Compression
G Gas connection 15 mm Compression
E D.H.W. inlet 15 mm Compression
U D.H.W. outlet 15 mm Compression
S3 Condensation outlet ø 20
6
1.1 INTRODUCTION
FORMAT DGT HE - FORMAT DGT HE
SYSTEM are premixed gas condensation
thermal modules that employ a micropro-
cessor-based technology to control and
manage all the functions. All modules are
compliant with European Directives
2009/142/CE, 2004/108/CE,
2006/95/CE and 92/42/CE.
For optimum installation and operation,
always follow the instructions provided in
this manual.
The products manufactured and sold by
Sime do not contain any banned materials
or substances (ie they comply with
ISO9000:2000).
1 DESCRIPTION OF THE BOILER
70
7085
214
ø 60/100
95
169
450
33
100
60
290
39
50
29.5
10
750
794
∼25
12 2
R
M
G
G
S3
Fig. 1

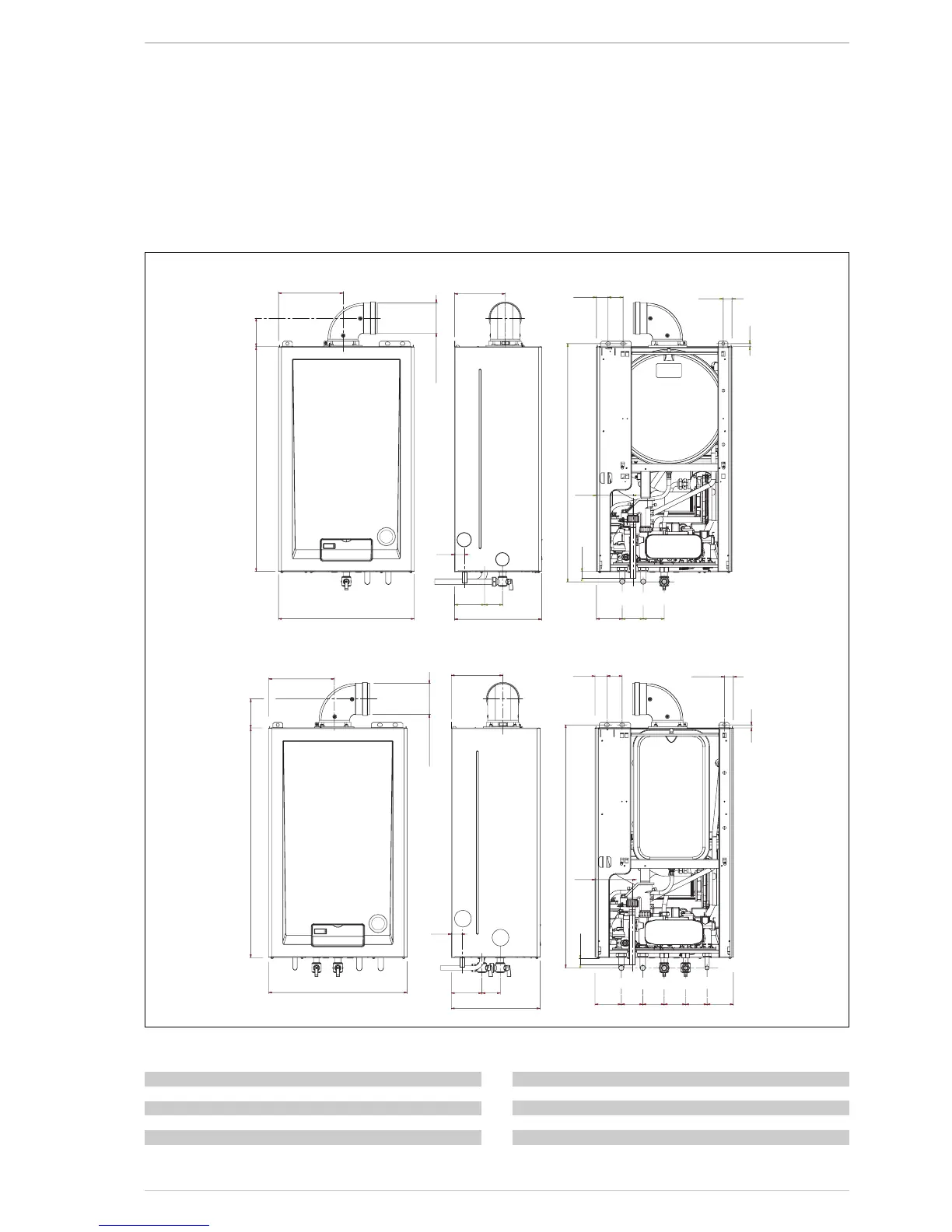

1.2 DIMENSIONS (fig. 1)
FORMAT DGT HE 20 SYSTEM
FORMAT DGT HE 25-30-35
