Sime FORMAT DGT HE Installation And Servicing Instructions

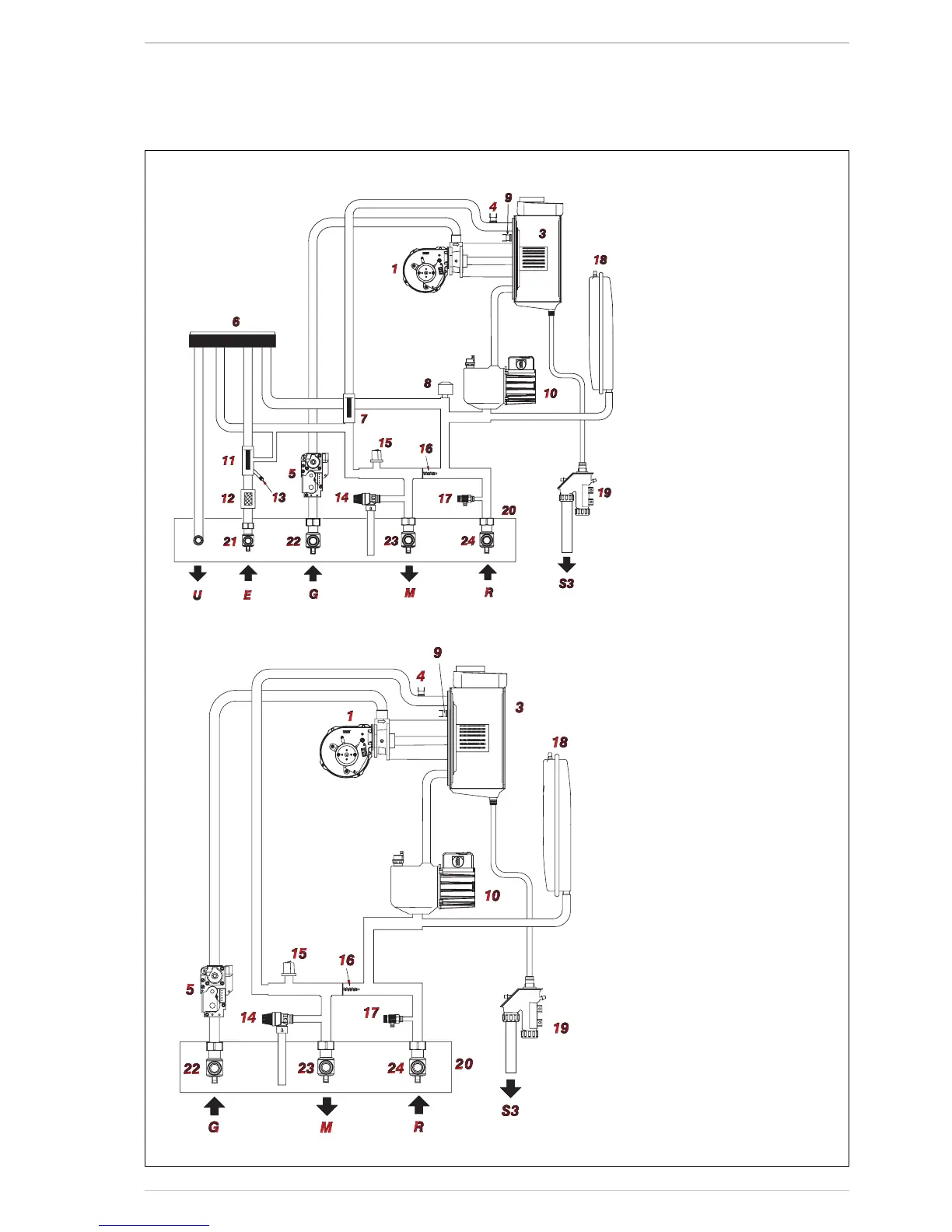

1.4 FUNCTIONAL DIAGRAM (fig. 2)
FORMAT DGT HE 25-30-35
FORMAT DGT HE 20 SYSTEM
Fig. 2
8
KEY
1Fan
3 Primary exchanger
4 C.H. sensor (SM)
5 Gas valve
6 D.H.W. exchanger
7 Heating water filter
8 Diverter valve
9 Safety thermostat
10 Pump with air release vent
11 D.H.W. flow meter
12 Water inlet filter
13 -----
14 2.5 BAR safety valve
15 Water pressure valve
16 Automatic bypass
17 Pressure release valve
18 Expansion vessel
19 Condensate drain trap
20 -----
21 D.H.W. isolation valve
22 Gas isolation valve
23 C.H. flow isolation valve
24 C.H. return isolation valve
CONNECTIONS
R C.H. return
M C.H. flow
G Gas connection
E D.H.W. inlet
U D.H.W. outlet
S3 Condensation outlet
