4. MENU SCREENS
4.1 C HANNEL S CREEN
Y
SPECIAL OPS
Zone 5
OK
MENU
The Channel Screen shows the current channel and allows channel selection.
The
Channel Name
(top line) shows the text associated with the currently selected radio
channel.
The Zone Name (middle) shows the text associated with the currently selected radio zone.
The
RSSI Bars
(left) indicate the signal strength of the current channel.
Pressing the “Menu” key enters the Menu mode.
The lower part of the screen is reserved for icons.
Radio channels may be configured with the Field Programmer as specific frequencies or as
auto scan types. When an auto scan channel is selected, it will immediately go into scan
mode. Selecting another non-autoscan channel will stop the scan.
Y
SPECIAL OPS
Zone 5
OK
MENU
1 2 3
6
5
4

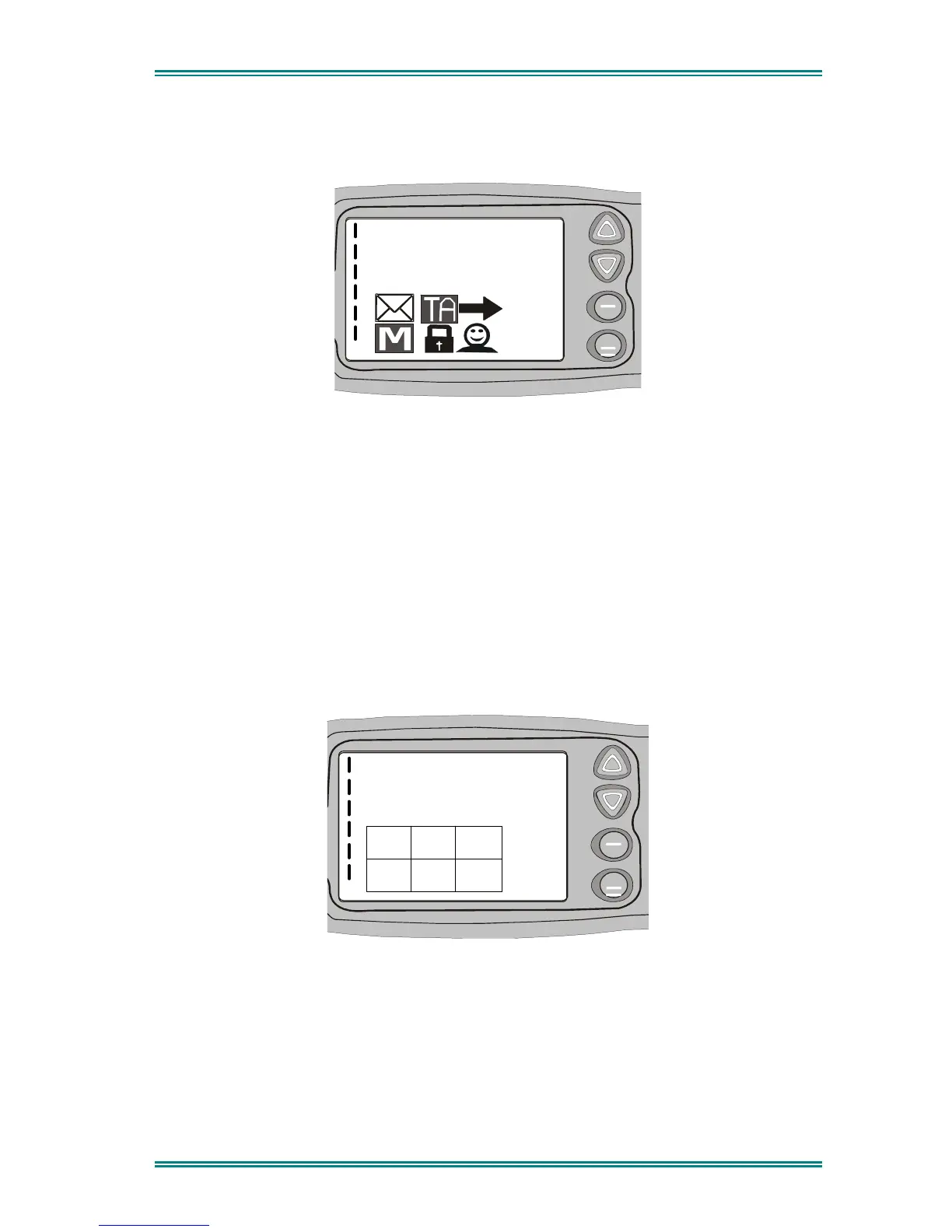

Figure 4 Icon Locations
As there are six positions for icons and displayed icons exceed this, some icons will share
the same location.
