Assembly instructions for kit #9
All rights reserved. 2013 Simple Motors, LLC ♦ www.simplemotor.com ♦
19

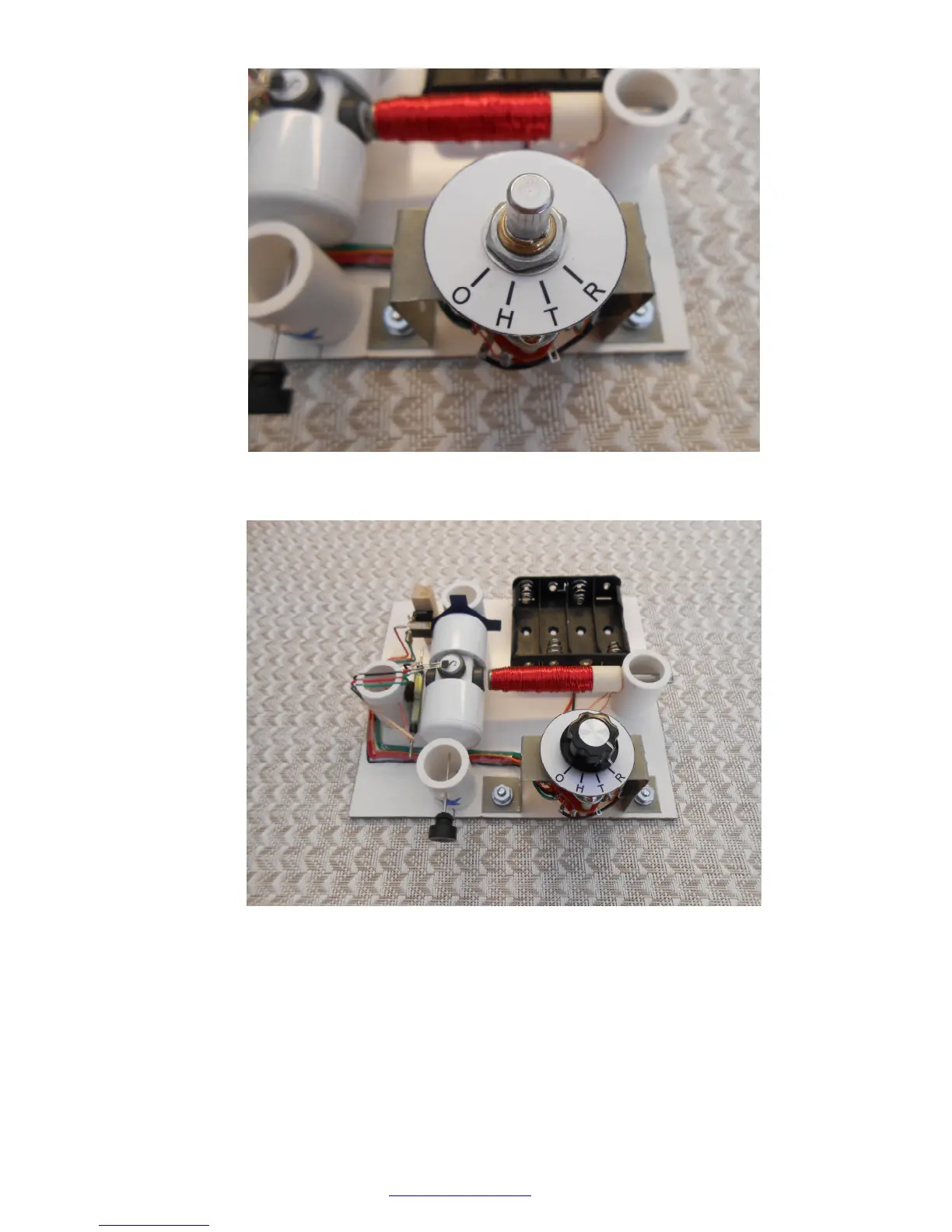

Before tightening the switch nut align the dial as shown:
31.Align the knob with R (standard reed switch motor) and tighten the set screw.
Your motors are ready to use! Keep in mind that only regular reed switch motor should
work on 1.5 Volts (1 battery); all the others require at least 3 Volts.
If your switch does not work check all the wiring. If one of the motors does not work –
check corresponding Troubleshooting section of our web site.
