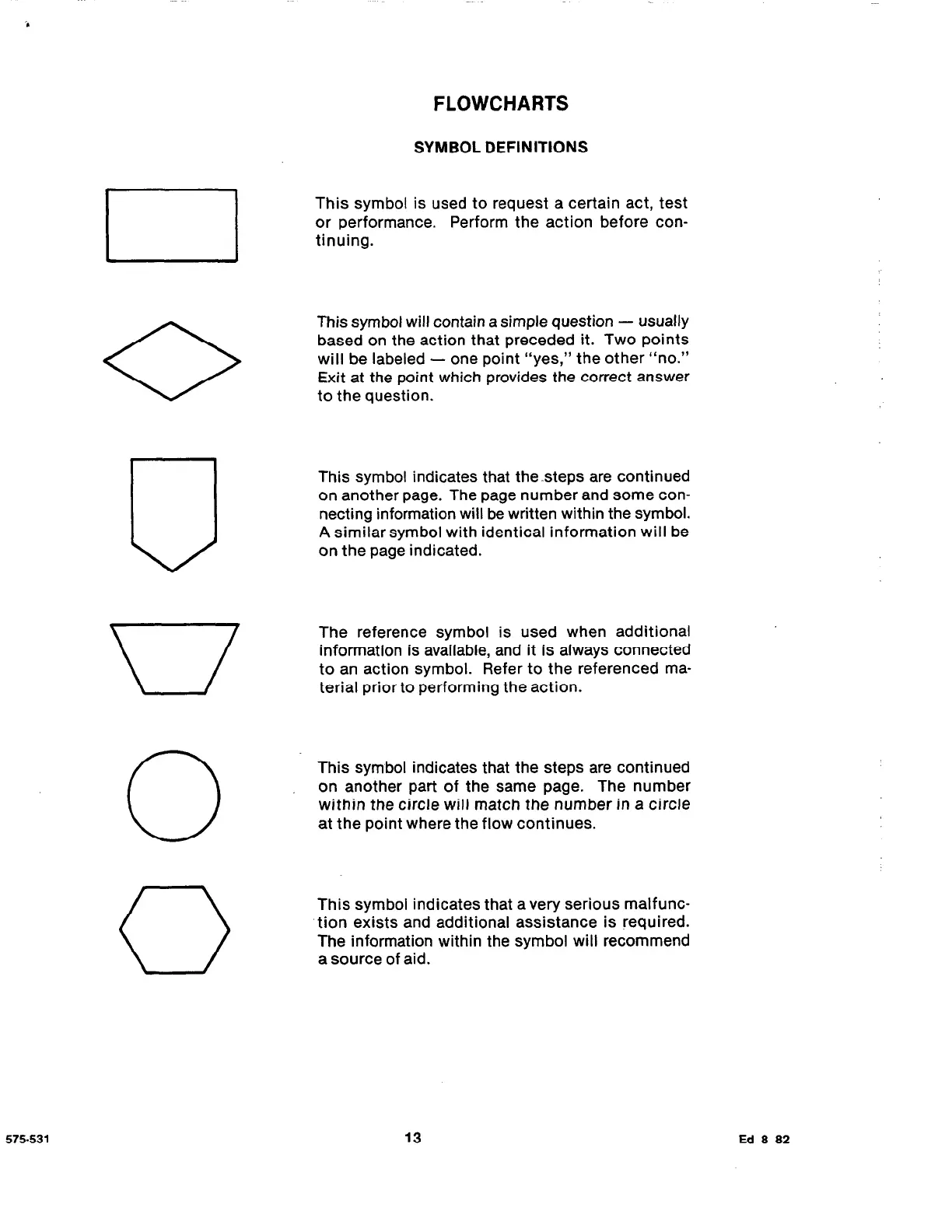

SYMBOL DEFINITIONS
This symbol is used to request a certain act, test
or performance. Perform the action before con-
tinuing.
This symbol will contain a simple question - usually
based on the action that preceded it. Two points
will be labeled
- one point “yes,” the other “no.”
Exit at the point which provides the correct answer
to the question.
This symbol indicates that the-steps are continued
on another page. The page number and some con-
necting information will be written within the symbol.
A similar symbol with identical information will be
on the page indicated.
w
The reference symbol is used when additional
information is available, and it is always connected
to an action symbol. Refer to the referenced ma-
terial prior to performing the action.
0
This symbol indicates that the steps are continued
on another part of the same page. The number
within the circle will match the number in a circle
at the point where the flow continues.
575-531
0
This symbol indicates that a very serious malfunc-
tion exists and additional assistance is required.
The information within the symbol will recommend
a source of aid.
13
Ed 8 82
