3
Table 3 describes the specifications of the data reader.
Table 3. Performance Specifications
Specification Value
Operating Voltage 9 VDC (one 9V battery)
Average Current 20 mA
Battery Life (battery not provided) 20 hours with a 550 mAh Alkaline Battery
Low voltage battery detect 7.2 VDC
Storage & Operating Temperature
32°F - 158°F (0°C-70°C)
Optical Range Up to 12 Inches (30 cm)
Non-volatile Memory 660 Readings
Serial Download Format 9600, 8 data bit, no parity, 1 stop bit
Serial Data Port Transmit (Tx) Pin 2, Ground (GND) Pin 5
Performance Specifications
Serial Data Port
Green LED
LCD Displa
Push Buttons
ON/OFF Switch

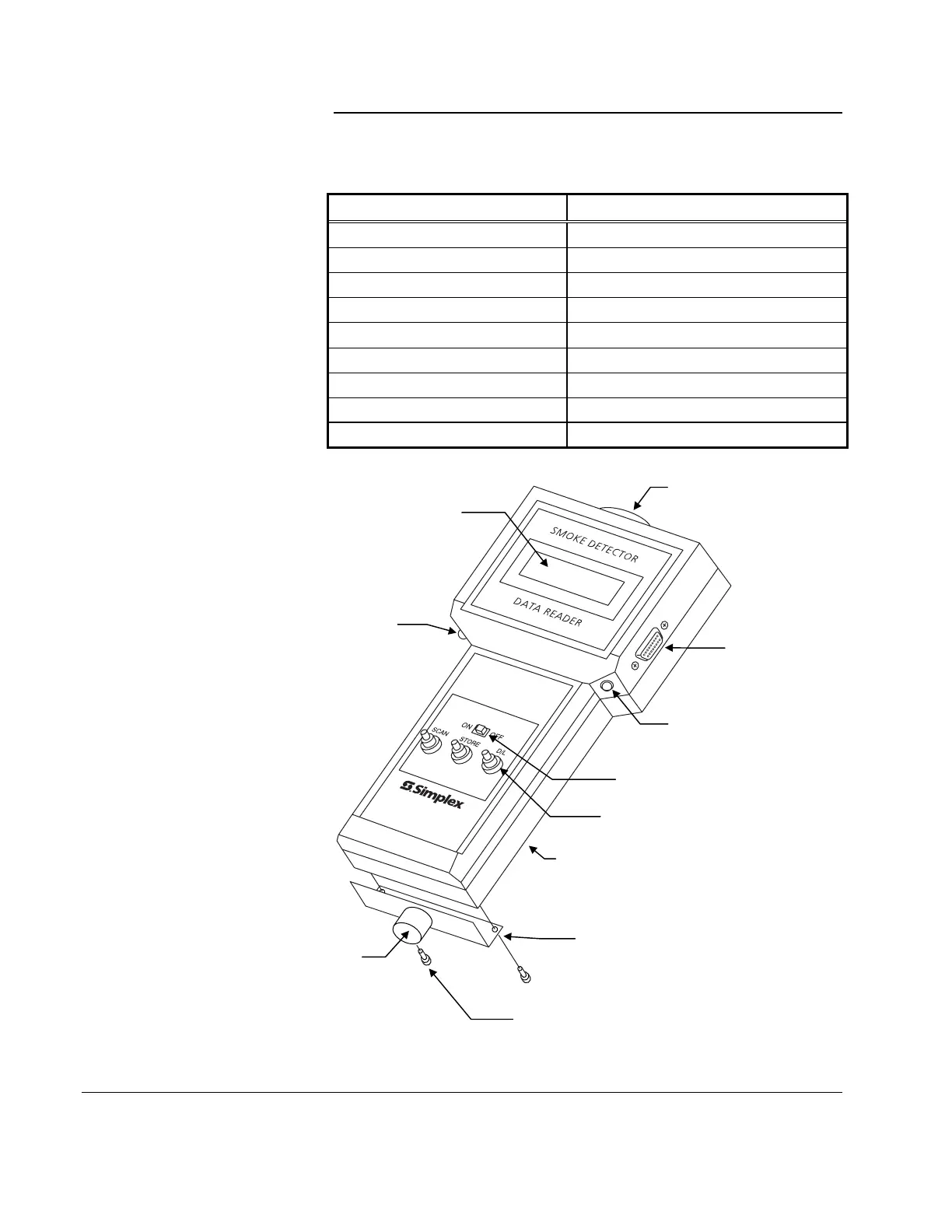

Figure 2. Data Reader
Focusing Lens
Red LED
Housing for 9V
Battery (on the back
of the Reader)
To attach the pole mounting
bracket onto the reader take the
following steps.
1. Unscrew and remove the
two screws on the bottom
back of the reader.
2. Slide the mounting bracket
into place (shown in
Figure 2).
3. Use two screws (412-032)
with the mounting bracket
to secure the bracket into
place.
Mounting Screws (2)
(STR# 412-032)
Extendible pole
mounting bracket
(677-261)
Socket for
extendible
ole
To Next Page
