Addressable Manual Stations, Red Housing with White Letters and White Pull Lever
Model Description Housing Pull Lever Listings
4099-9004 Single Action, English FIRE ALARM PULL DOWN UL, ULC, FM, CSFM
4099-9004CB Single Action, Bilingual English and French FEU FIRE TIREZ PULL
ULC
4099-9004CF Single Action, French ALARME FEU ABAISSEZ
4099-9004PO Single Action, Portuguese FOGO ALARME PUXE
UL, FM
4099-9004SP Single Action, Spanish ALARMA FUEGO JALE
4099-9005 Double Action, Breakglass operation, English FIRE ALARM PULL DOWN UL, ULC, FM, CSFM
4099-9005PO Double Action, Breakglass operation, Portuguese FOGO ALARME PUXE
UL, FM
4099-9005SP Double Action, Breakglass operation, Spanish ALARMA FUEGO JALE
4099-9006 Double Action, Push operation, English FIRE ALARM PUSH PULL DOWN UL, ULC, FM, CSFM
4099-9006PO Double Action, Push operation, Portuguese FOGO ALARME EMPURRE PUXE
UL, FM
4099-9006SP Double Action, Push operation, Spanish ALARMA FUEGO EMPUJE JALE
4099-9021 Single Action NO GRIP operation, English FIRE ALARM PULL DOWN UL, ULC, FM, CSFM
Accessories (refer to pages 3 and 4 for details)
Model Description Model Description
2975-9022 Cast aluminum surface mount box, red 2099-9803 Replacement breakglass
2975-9178 Surface mount steel box, red 2099-9804 Replacement break-rod
2099-9813
Semi-flush trim plate for double gang switch
box, red
2099-9828
Institutional cover kit for field installation on 4099-9004;
Note: Covers LED indicator
2099-9819 Flush mount adapter kit, black
2099-9814 Surface trim plate for Wiremold box V5744-2, red
2099-9820 Flush mount adapter kit, beige
4099-9805
Retrofit Kit for field conversion of a single action station to a NO GRIP station; refer to Installation Instructions
579-1007 for details
Power and Communications IDNet or MAPNET II communications, 1 address per station
Address Means DIP switch, 8 position
Wire Connections Screw terminal for in/out wiring, for 18 to 14 AWG wire (0.82 mm
2
to 2.08 mm
2
)
UL Listed Temperature Range 32° to 120° F (0° to 49° C) intended for indoor operation
Humidity Range Up to 93% RH at 100° F (38° F)
Housing Color Red with white raised lettering
Material Housing and pull lever are Lexan polycarbonate or equal
Pull Lever Color White with red raised lettering
Housing Dimensions 5” H x 3 ¾” W x 1” D (127 mm x 95 mm x 25 mm)
Single gang cover plate, 3/4"
(19 mm) extension, RACO #773
or equal (supplied by others)
Station
side view
Wall surface
Single gang
box outline
4" Square box
with cover plate
Semi-Flush Mount Side View
Single Gang Box Mount
Single gang box, 2 1/2" deep
(64 mm), RACO #500 or equal
(supplied by others)
Mount flush or with
1/16" (2 mm)
maximum extension
DO NOT RECESS
ALARMFIRE
PULL DOWN
LED Indicator
4" Square Box Mount
4" (102 mm) square box, 2 1/8" (54 mm) minimum
depth, RACO #231 or equal (supplied by others)

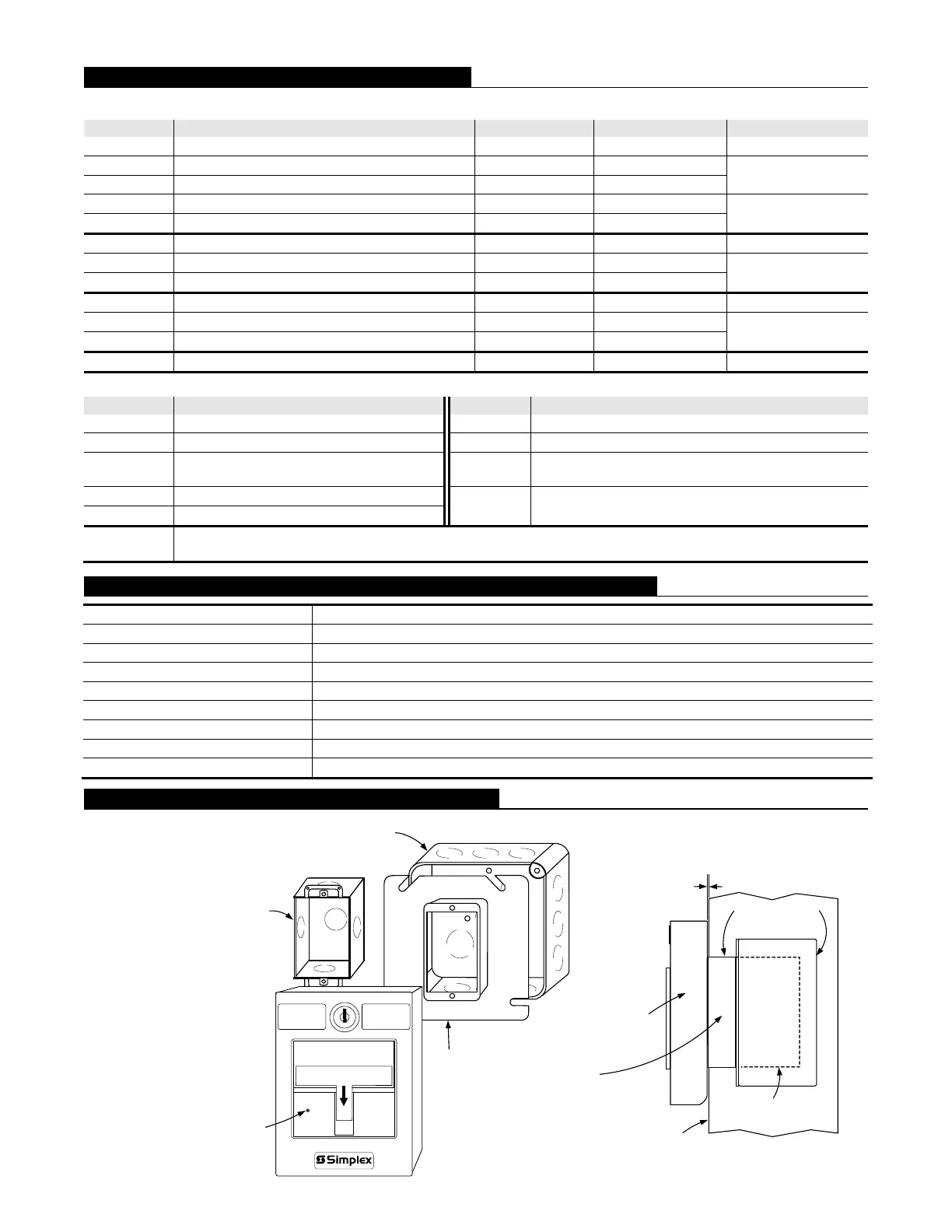

Addressable Manual Station Semi-Flush Mounting
Specifications (refer to Installation Instructions 579-1135 for additional information)
Addressable Manual Station Product Selection
