Setting Switches
Switch SW1 is a bank of eight DIP switches. From left to right (see Figure 1) these switches are designated as SW1-1 through SW1-8. The function of
these switches is as follows:
• SW1-1. This switch sets the baud rate for the serial communication line running between the Relay Daughter card and the Panel CPU. Set this
switch to ON.
• SW1-2 through SW1-8. These switches set the card's address within the 4100 FACP. (These switches must be set to the value assigned to the
card by the Panel Programmer.) Refer to Figure 2 for a complete list of the switch settings for all of the possible card addresses.

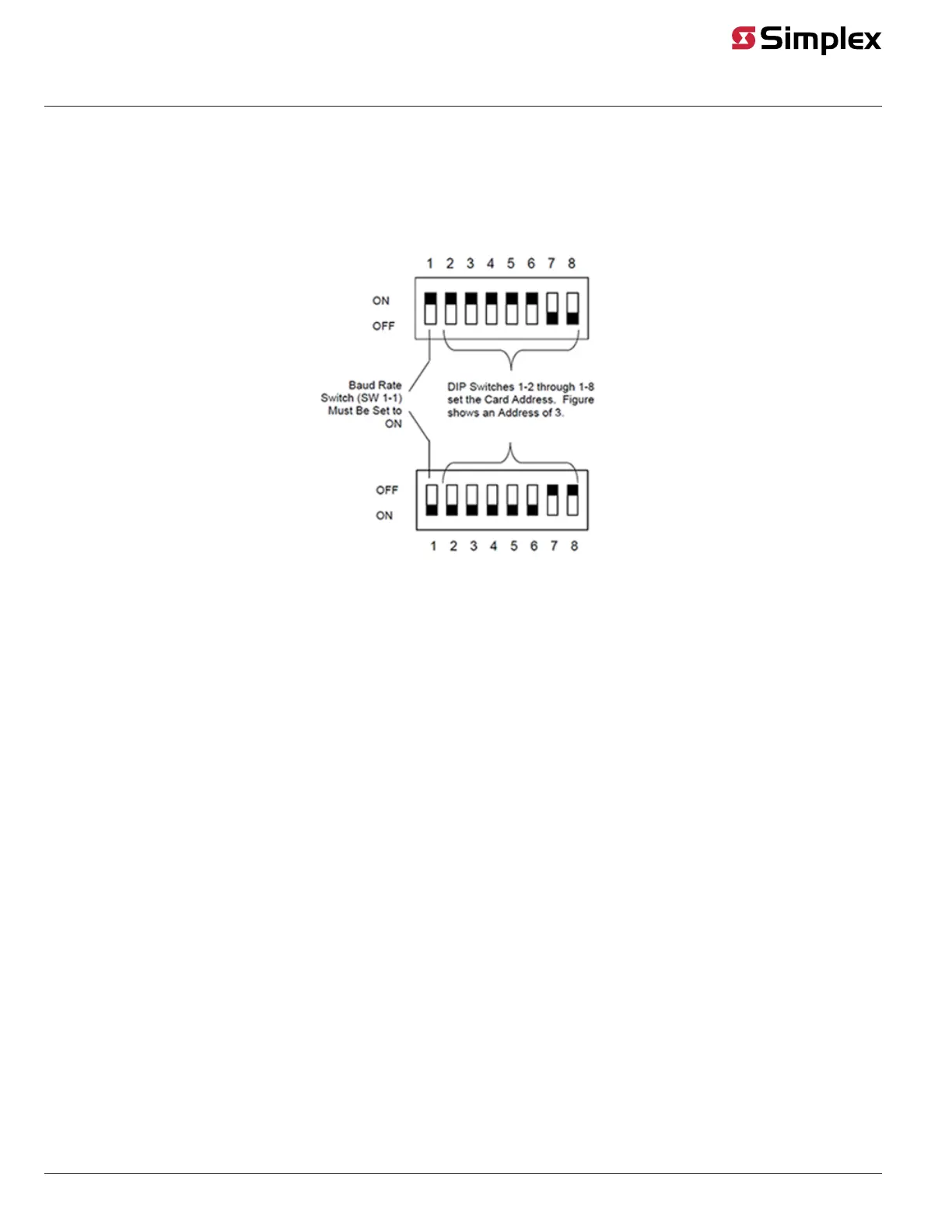

Figure 1: Address DIP Switch
4" X 5" card DIP switches
• 4100-3204
• 4100-3206
• 4010-9908
Daughter card DIP switches
• 4100-3001
• 4100-3201
• 4100-3002
• 4100-3202
• 4120-3003
• 4100-3203
page 3 579-220 Rev. F
4100/4120- Series and 4010ES Relay Modules Installation Instructions
