7-8
TrueNAC Voltage Drop Test,
Continued
Testing each
TrueAlert Power
Supply’s SLC
6.
Press the ENTER key on the Entry keypad. If the test is
successful, the following message
displays:
The TrueNAC
Report
A T
rueNA
C status report can be generated and displayed by the panel with the completion of the
T
rueNAC
V
oltage Drop T
est.
Sample reports are shown
below
.

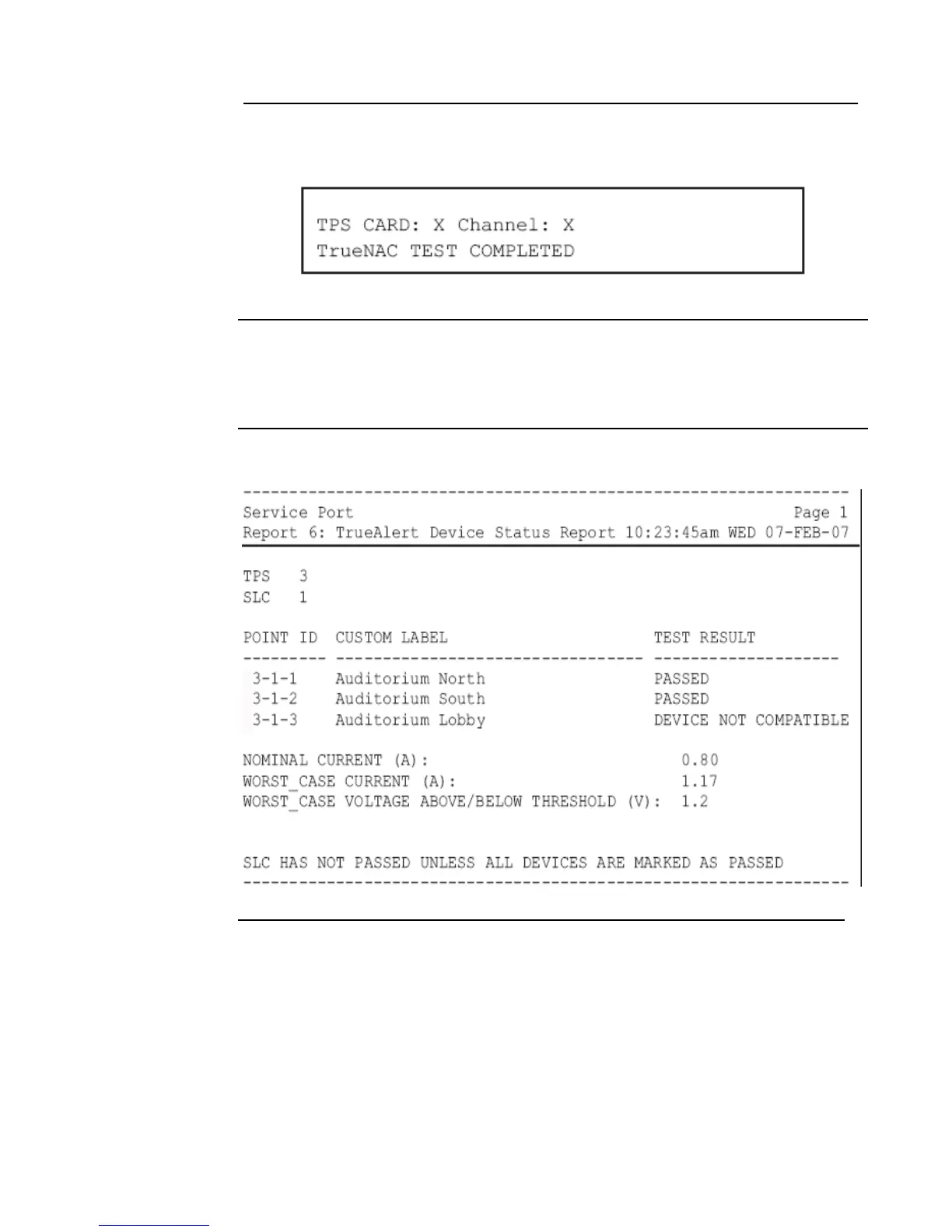

TrueNAC Report
Samples
Example of a successful single-channel test:
Continued on next page
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
Ch. 1. Basic Concepts and Operations
7
Introduction
7
In this Chapter
7
Topic See Page
7
Basic System Description
8
Overview
8
Normal Appearance of Operator Interface Panel
10
Description
10
Ch. 2. Alarm Conditions
11
Introduction
11
In this Chapter
11
Acknowledging an Alarm
12
How the 4010ES Indicates that an Alarm Has Occurred
12
Overview - Acknowledging Alarms
12
Globally Acknowledging Alarms
13
Individually Acknowledging Alarms
13
Silencing an Alarm
15
Overview
15
Using the Alarm Silence Key
15
Resetting the System
16
Overview
16
Resetting a System with Active Alarms
16
Disabling a Point that Remains in Alarm
18
Overview
18
Important Notes
18
Procedure
18
Ch. 3. Trouble Conditions
20
Introduction
20
In this Chapter
20
Overview
21
How the 4010ES Indicates the Presence of a Trouble
21
What Acknowledge Does
21
Global Versus Individual Acknowledge
21
Acknowledging Troubles
23
Globally Acknowledging Troubles
23
Individually Acknowledging Troubles
23
If the Trouble Doesn't Clear
25
Overview
25
System Reset Key
25
Ch. 4. Supervisory Conditions
26
Introduction
26
In this Chapter
26
Overview
27
How the 4010ES Indicates the Presence of a Supervisory Condition
27
What Acknowledge Does
27
Acknowledging Supervisory Conditions
28
Globally Acknowledging Supervisory Conditions
28
Individually Acknowledging Supervisory Conditions
28
Ch. 5. Selecting Points for Status and Control
30
Introduction
30
In this Chapter
30
Selecting Points from Alarm, Trouble, Supervisory List
31
Procedure
32
Selecting Points from the Menu
32
Selecting Points with the Entry Keypad
33
Overview
33
Selecting Points
33
Ch. 6. Advanced Functions
35
Introduction
35
In this Chapter
35
Logging in and out of the System
36
Introduction
36
Log in Procedure
36
Log out Procedure
37
Setting System Time and Date
38
Procedure
38
Viewing the Time at Which an Event Occurred
39
Procedure
39
Enabling and Disabling Points
40
Overview
41
Forcing Points on and off
41
Returning a Point to Automatic Operation
41
Displaying and Clearing Historical Logs
42
Displaying/Clearing Historical Logs
42
Printing Reports
43
Overview
43
Procedure
44
Ch. 7. System Test Procedures
45
Introduction
45
In this Chapter
45
Lamp Test / Tone Alert Test
46
Overview
46
Performing a Lamp Test
46
Testing the Tone-Alert
46
Walktest Overview
47
Important Notes
47
Setting Walktest Options
48
Enabling Walktest for a Group
48
Setting Options
48
Truenac Voltage Drop Test
49
Overview
49
Accessing the Truenac Voltage Drop Test
49
Testing All Truealert Power Supply's Slcs
50
Testing each Truealert Power Supply's SLC
51
The Truenac Report
52
Truenac Report Samples
52
Disable IDNET CO Algorithms
55
Overview
