Simplex 4100ESi - 707: ME0504 APS;ME0508 LPS AS7240.4 PSU

| 103 |
LT0432 Issue 2.4
707: ME0504 APS/ME0508 LPS AS7240.4 PSU
JOHNSON CONTROLS
NEW ZEALAND. +64 3 3895938
+64 3 3895096PH:
17 MARY MULLER DRIVE
P.O. BOX 19545
FAX:
CHRISTCHURCH,
©,QJPUQP%QPVTQNU#NNTKIJVUTGUGTXGF
#NNURGEKHKECVKQPUCPFQVJGTKPHQTOCVKQPUJQYP
YGTGEWTTGPVCUQHFQEWOGPVTGXKUKQPFCVGCPF
CTGUWDLGEVVQEJCPIGYKVJQWVPQVKEG
4100ESi

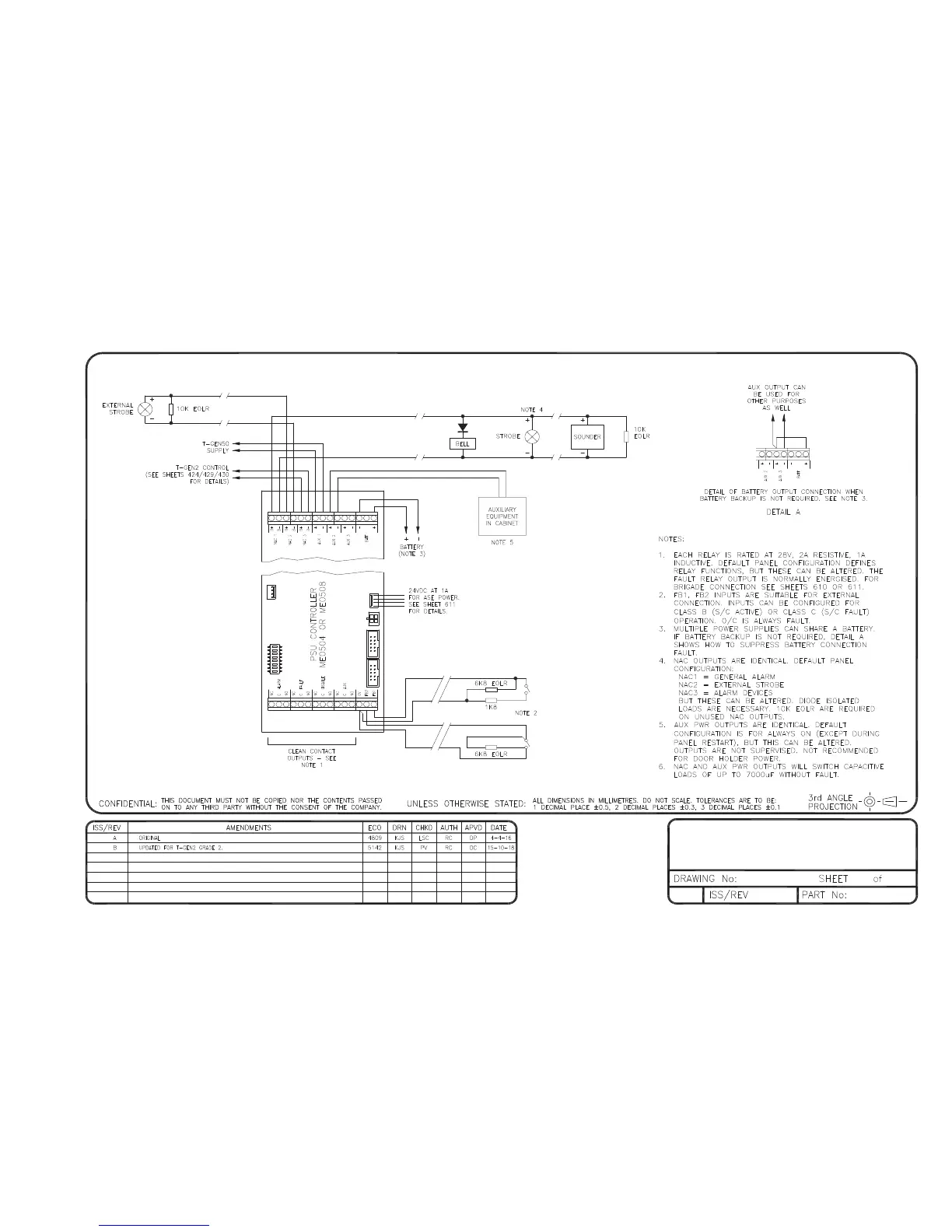

APS / LPS OUTPUTS
WIRING DIAGRAM
A3
707 N1976-181
B
