Simplex 4100ESi - 107: 802 SB;901 SB MX Sounder Base

112 pages

To Next Page

To Previous Page

| 13 |

LT0432 Issue 2.4

107: 802SB/901SB MX Sounder Base

TYCO FIRE PROTECTION PRODUCTS

NEW ZEALAND. +64 3 3895938

+64 3 3895096PH:

17 MARY MULLER DRIVE

P.O. BOX 19545

FAX:

CHRISTCHURCH,

Fire Protection Products

tyco

1976-181

107 N

4100ESi

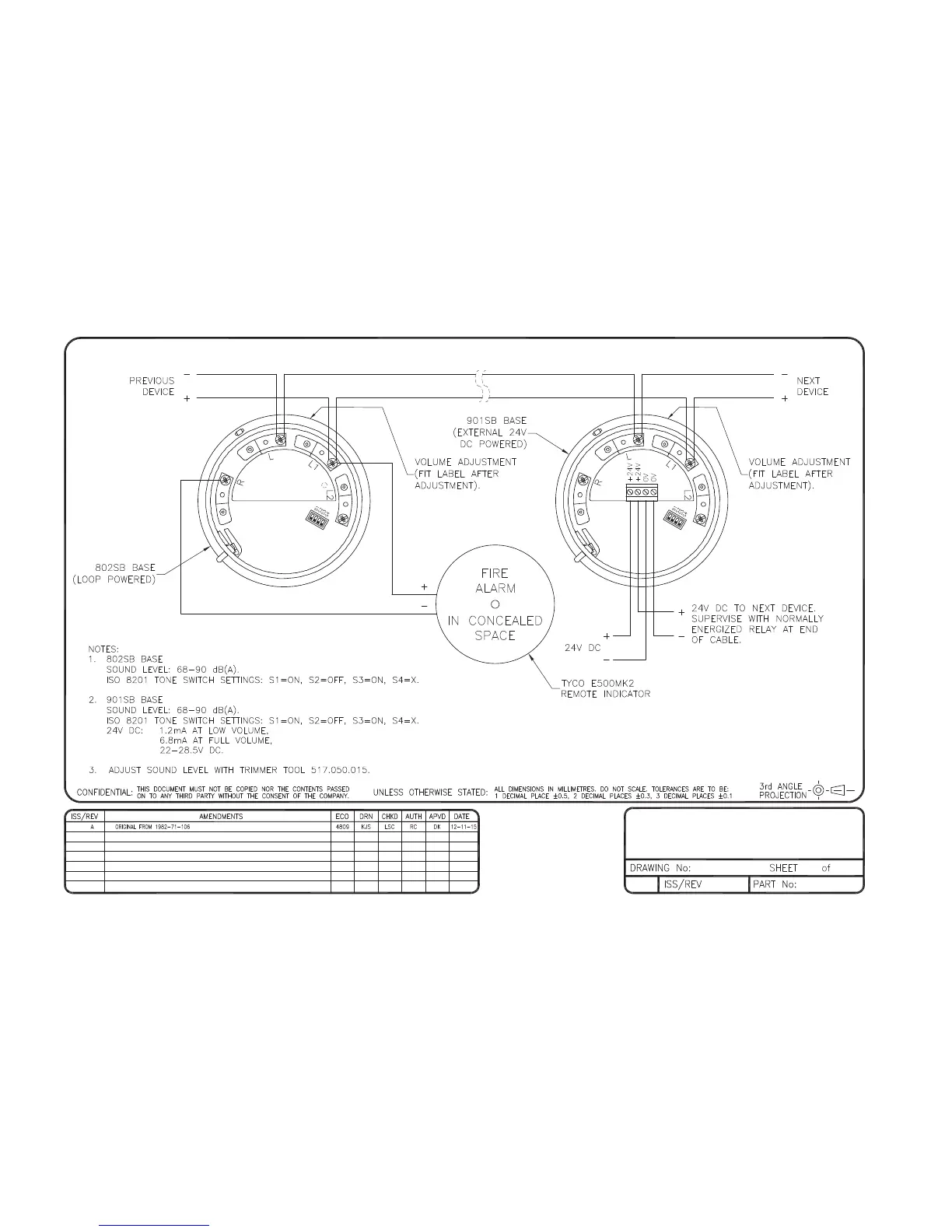

802SB / 901SB MX SOUNDER BASE

WIRING DIAGRAM
